Notifier AM2020 User Manual

1-62
Installation 15088:J 10/22/99

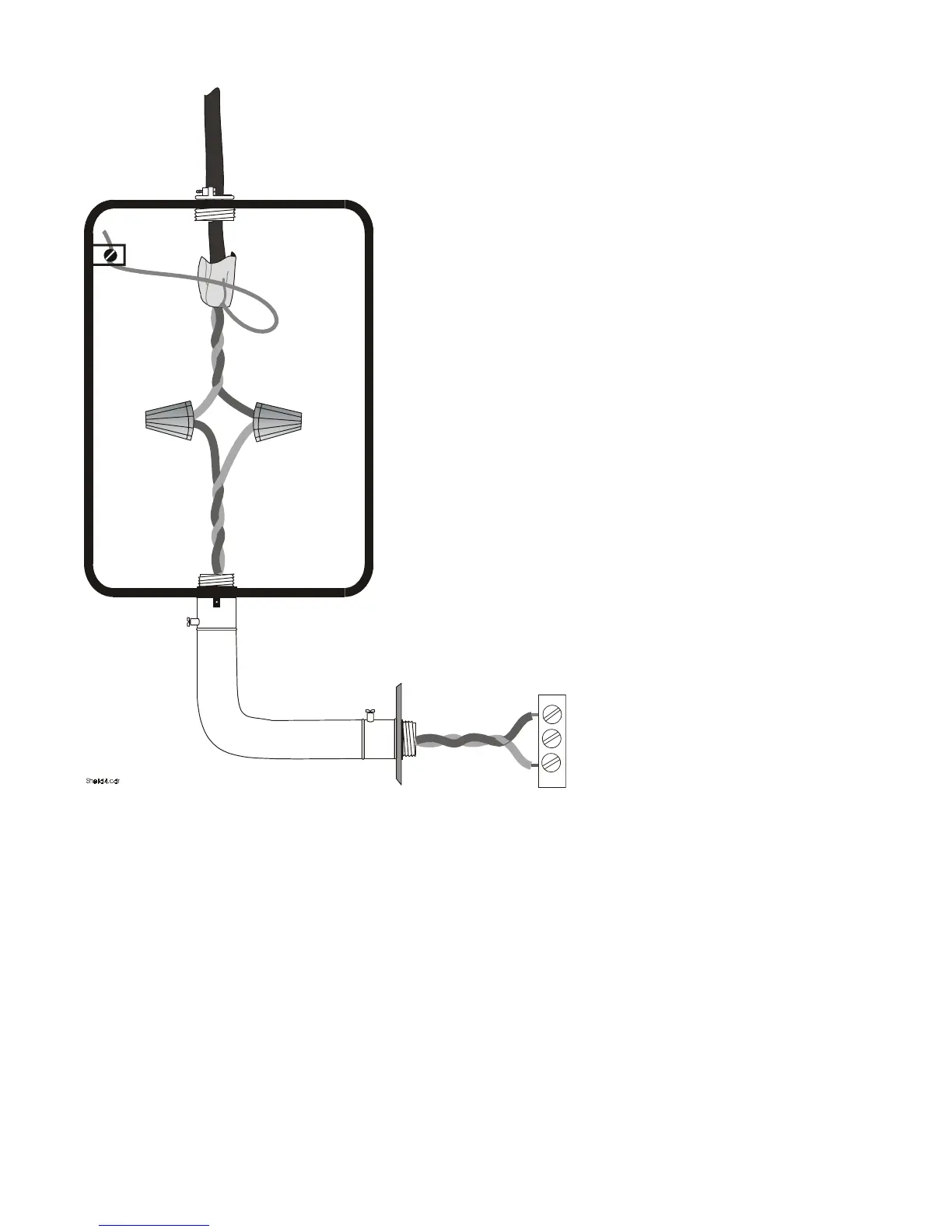

Figure 4.4-2 Shield Termination in Partial Conduit (LIB-200 only)
For a LIB-200 SLC that is partially contained in conduit
(less than 20 feet {6.1 m}):
Do not allow the shield drain wire to enter the cabinet or the
conduit. Connect the drain wire to the termination point of the
conduit run (such as a single-gang box as illustrated at left).
The conduit cannot be longer than 20 feet (6.1 m) total.
LIB Terminal Block
1 (+) SLC Loop Channel A
2 no connection
3 (-) SLC Loop Channel A
