Installation
UDACT Instruction Manual PN 50050:H 09/16/2002 21
CHS-M2 Chassis Mounting
The UDACT is installed on a CHS-M2 Chassis within the control panel backbox as described and
shown below:

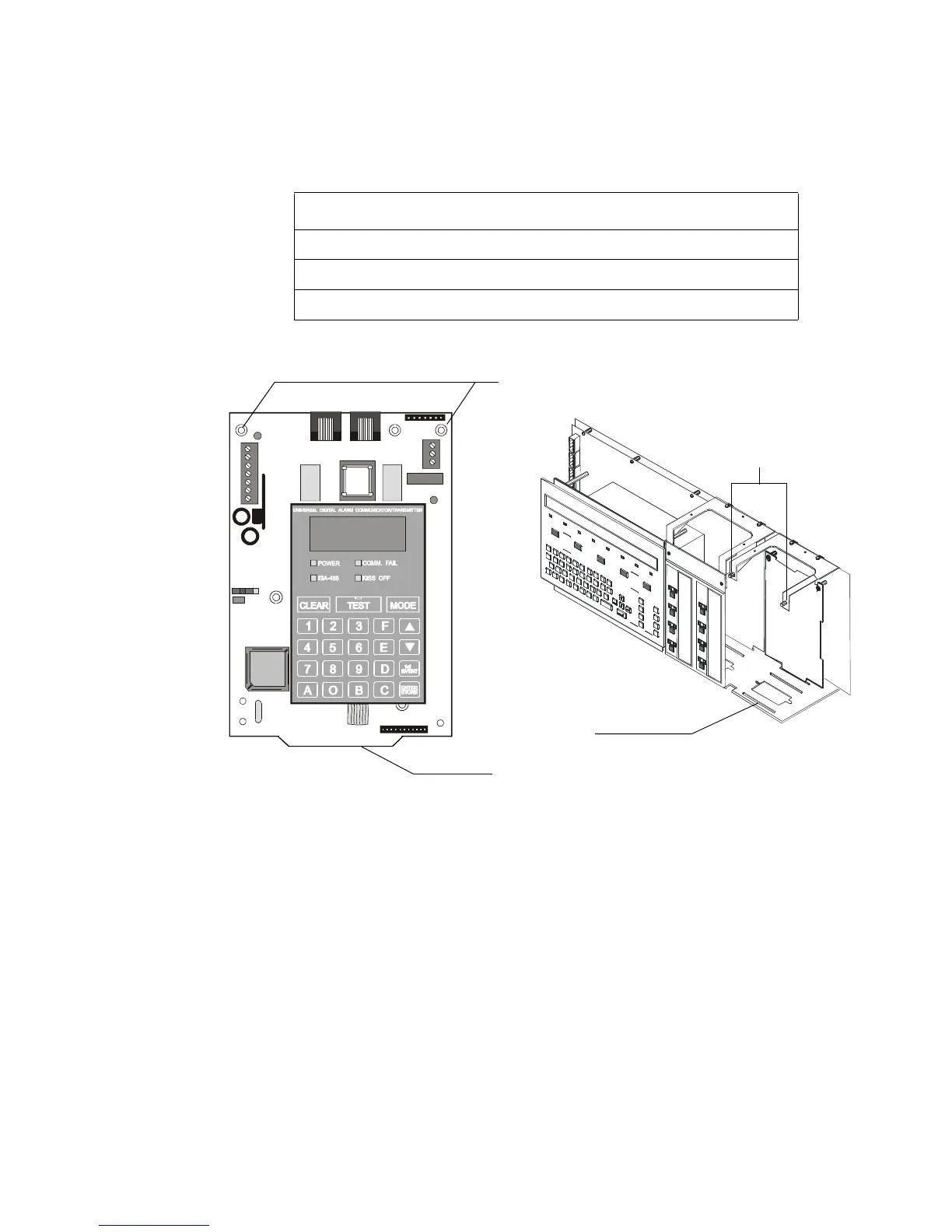

Figure 3 CHS-M2 Installation
Step Action
1 Disconnect AC power and disconnect batteries.
2 Insert the tab at the bottom of the board into the chassis slot as indicated.
3
Position the UDACT on the standoffs and fasten with #4 screws.
UDACT-21a.cdr
Chassis slot
Ta b
Fastening holes
Metal standoffs
