Remote Installation
For remote installation the UDACT uses either an ABS-8R/RB or UBS-1 enclosure. The unit must be
placed within 6000 feet (1828.8 meters) of the Fire Alarm Control Panel.
Installation for either enclosure is detailed below:

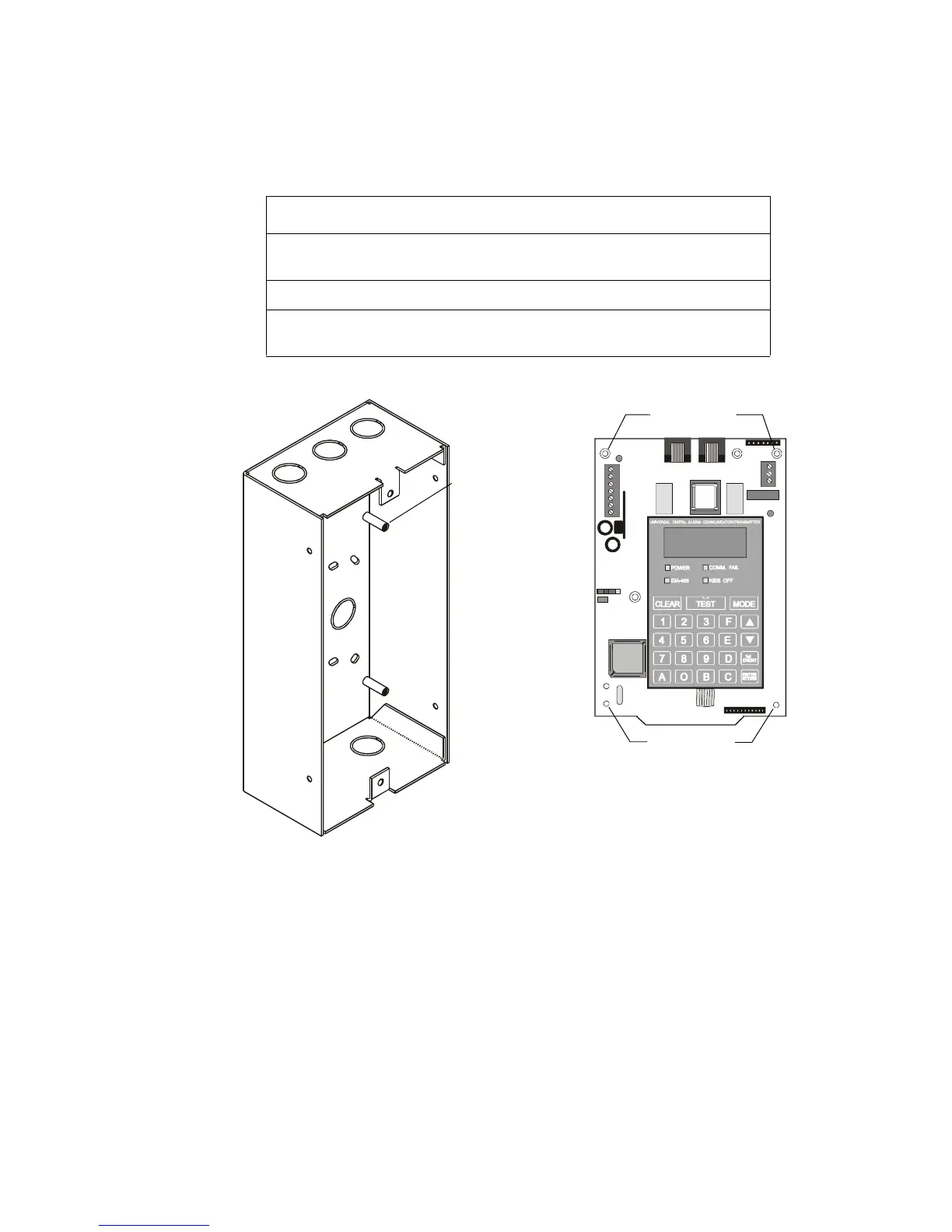

Figure 4 ABS-8R/RB Installation
Step Action
1 Align the UDACT to the four (4) threaded standoffs at the back of the
ABS-8R/RB or UBS-1 enclosure.
2 Secure using the four (4) screws supplied with the enclosure. Tighten securely.
3 After completion of connections and programming, secure cover to ABS-8R/
RB box with two (2) screws. Tighten securely.
UDACT-22.cdr
Threaded Standoff
Mounting Holes
Mounting Holes
ABS-8R/RB
