SERVICE AND REPLACEMENT GUIDE OP–2FM OWNER'S MANUAL
NU–VU® FOOD SERVICE SYSTEMS PO BOX 35 MENOMINEE, MICHIGAN 49858-0035
page 28 SALES FAX (906) 863-5889 • SERVICE FAX (906) 863-6322 (800) 338-9886
E. Connect the electrical leads to the new Motor assembly. Make sure all connections are clean
and tight.
F. Lower the Motor assembly into place and fasten it securely with the four mounting screws.
G. Apply a bead of silicone sealant (available at any plumbing or hardware store) around the edges
of the Motor Mount. Smooth it down with your finger. Remove any excess sealant but make
sure that the entire edge of the Motor Mount is completely sealed to prevent any water from
leaking from the Proofer onto the new Proofer Motor.
H. Replace the Fan Blade/Blower Wheel on the Motor shaft. Tighten the set screw securely; a
loose Fan Blade/Blower Wheel will cause a later service problem.
I. Restore electrical power to the unit and test the new Proofer Motor assembly for proper
operation. Make sure the Fan Blade/Blower Wheel does not drag on the floor of the Proofer.
J. Replace the Proofer Element Cover and retest the Proofer Motor assembly. Make sure the Fan
Blade/Blower Wheel does not drag on the underside of the Element Cover.
OVEN HEATING ELEMENT, How To Replace:
MAKE SURE ALL POWER TO THE UNIT IS OFF. FAILURE TO DO SO MAY CAUSE
SEVERE EQUIPMENT DAMAGE OR PERSONAL INJURY!
A. Remove the Oven Element Cover [52] by removing the two thumbscrews from each side. Pull
the Element Cover down and to the front of the Oven to remove it.
B. Remove the Outside Top [71] of the Oven to expose the Heating Element wiring (refer to
Figure #7 on page 25).
C. Remove the Side Access Panel [76] from the Control side of your unit.
D. Trace the wires from the defective Heating Element to the Contactor [3] and disconnect them.
Pull the wires up to the top of the unit.
E. Remove the Heating Element mounting screws from the inside of the Oven and remove the
Heating Element from the support bracket. Pull the Heating Element and its wires from the
Oven.
F. Remove all old sealant from the Heating Element mounting holes with a putty knife or scraper.
G. Run a " bead of high-temperature silicone or gasket sealer around each Heating Element
passage hole in the ceiling of the Oven.
H. Feed the wires of the replacement Heating Element up through the passage holes and push the
replacement Heating Element into place. Secure it there with the support bracket and the
mounting screws.

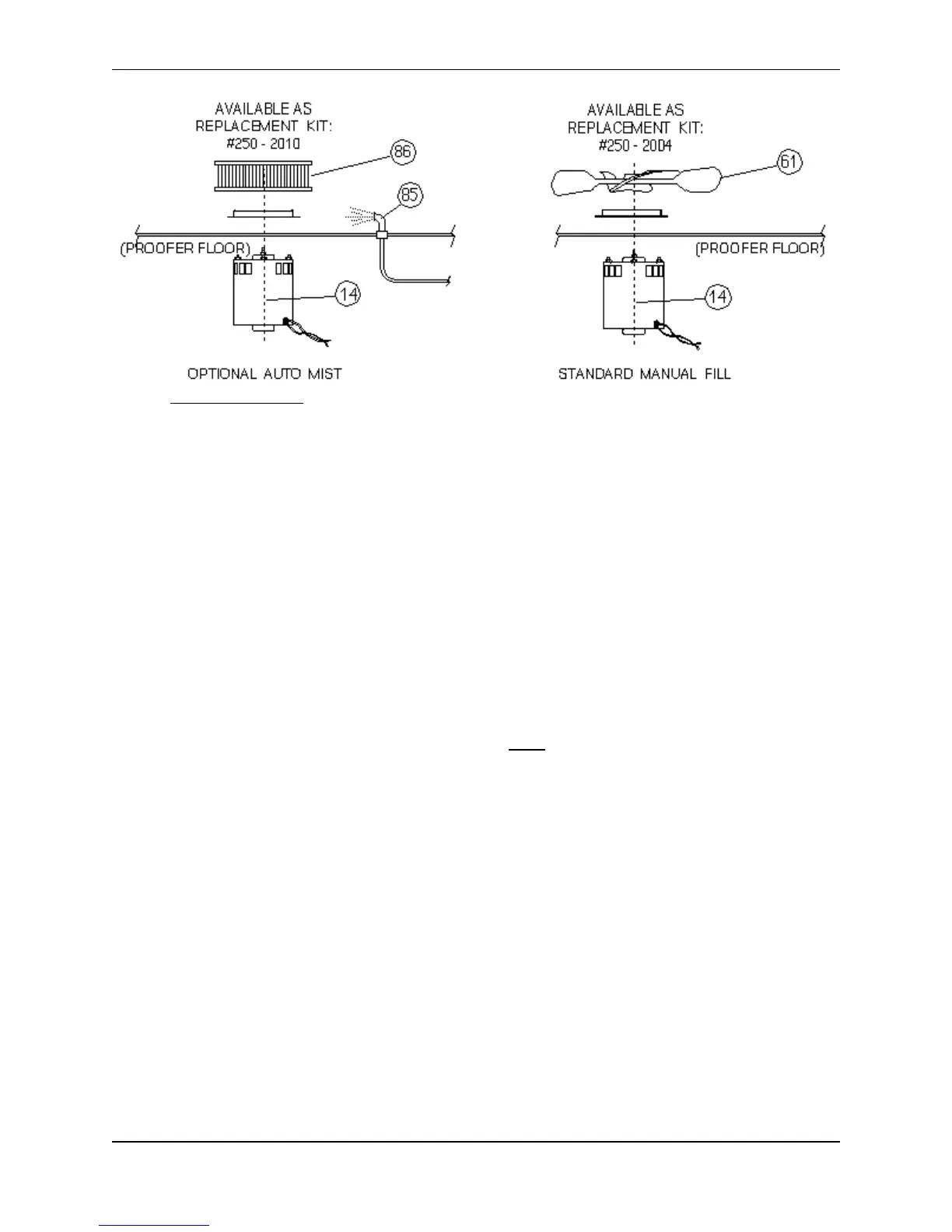

Fig. #9 – PROOFER MOTORS
