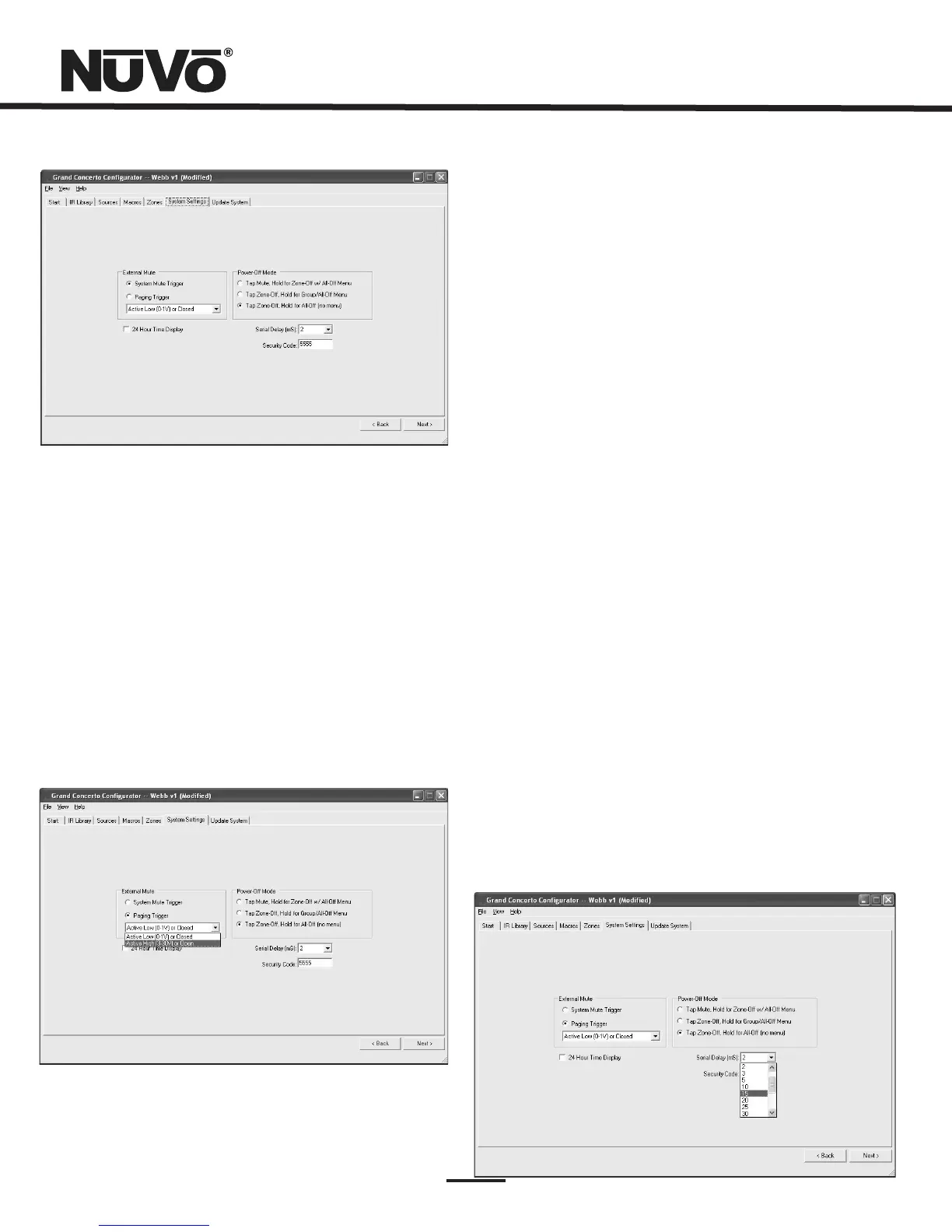

6.2ExternalMute:PagingTrigger(Fig.28)
TheGrandConcertoSystemhasabuilt-insolutionfor
whole-housepagingtypicallythroughaphonesystem.The
PagingTriggersettingcausesthesystemtomuteacrossall
thezones,andinturn,amplifiesthepageacrossallzones.
EachZoneEditutilityintheConfiguratorSoftwareorthe
menuateachControlPadoffersthecapabilityofsettingthe
pagevolumeineachzone.
Fig.28
Fig.29
6.324HourTimeDisplayandPowerOffMode
24HourTimeDisplay:
PowerOffMode:
TapMute/HoldforZone-Offw/All-OffMenu:
TapZone-Off/HoldforGroup/All-OffMenu:
TapZone-Off/HoldforAll-Off(nomenu):
6.4SerialDelay(Fig.29)
Bycheckingthe24HourTimeDisplay
boxthesystemwillautomaticallygotoa24hourclockon
eachofthezoneControlPads.
TheGrandConcertoConfiguratorallowsthe
optionforthreepoweroffmodes.
Thismode
causesatemporaryzonemutewhentheControlPad
powerbuttonistapped.Whenitisheldasecondmenu
willappearwiththeoptionstoturnthezoneofforturnall
thezonesoff.
Inthismodea
singletapofthepowerbuttonturnsthezoneoffand
holdingthepowerbuttoncausesasecondmenuthat
givestheoptiontoturnoffthatzone’sgrouporturnall
thezonesoff.
Thisisthe
defaultchoice.Inthismode,atapturnsthezoneoffand
holdingthepowerbuttonturnsallthezonesoff.
Thisdropdownmenuprovidesachoiceofdelaysmeasured
inmilliseconds.Thisisonlynecessarywhenyouareusing
theRS232communicationforthirdpartycontrolofthe
GrandConcertoSystem.Thisutilityslowstherateatwhich
informationisdeliveredtothehomeautomationsystem
fromtheGrandConcerto.Thisissometimesnecessaryto
allowthehomeautomation’sprocessortimetobufferthe
incominginformation.
