NV-LSA40
LocalSource Amplifier

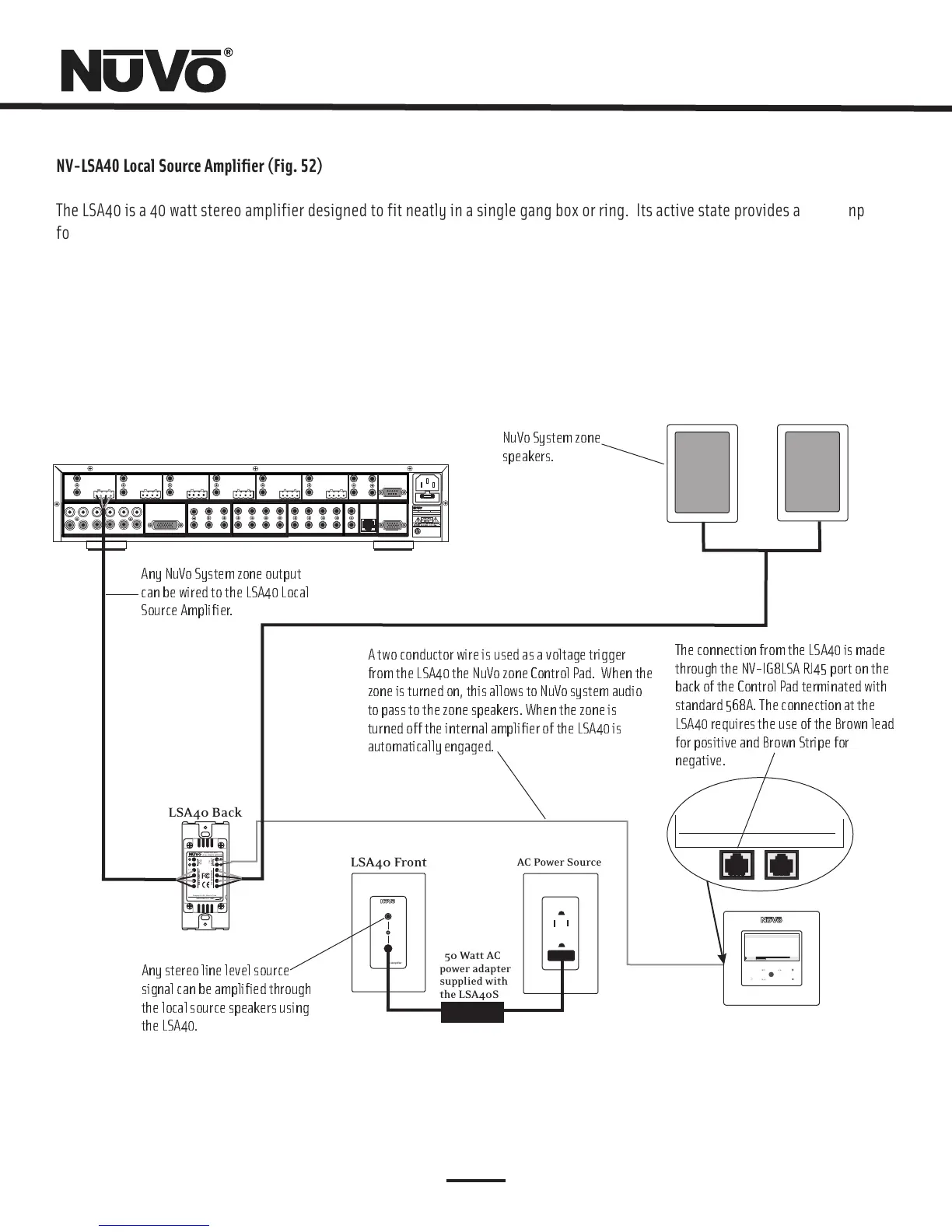

NV-LSA40LocalSourceAmplifier(Fig.52)
TheLSA40isa40wattstereoamplifierdesignedtofitneatlyinasinglegangboxorring.Itsactivestateprovidesareadyinput
foranylinelevelaudiosignal.WhenconnectedtotheGrandConcertoControlPad,theGrandConcertospeakeroutputandthe
LSA40shareacommonpairofspeakersinazone.TheLSA40’sinternalA/BswitchallowsNuVoaudiowhenthezoneControlPadis
turnedonandlocalaudiothroughtheLSA40whenthezoneControlPadisturnedoff.
NV-I8GLSA
NuVoNet
MENU
OK
drift
SVR
1of9
FollowtheDay
3:09PM
3:48
1:28
EdgeofTomorr
The connectionfrom the LSA40 is made
throughthe NV-IG8LSARJ45 port on the
back of the Control Pad terminatedwith
standard568A. The connection at the
LSA40requires the use of the Brown lead
for positiveand Brown Stripefor
negative.
36
Fig.52
L
