Nuvo NV-D460 - Grand Concerto Specifications

39
NV-I8GMSGrandConcertoSystem
·NV-I8GMGrandConcertomainamplifier
·6NV-I8GCPControlPadswithwhite,ivory,almond
andblackscrewlesstrimplates
·1NV-GRC1RemoteControl
·6NV-VECVisibleIRemitters
·1NV-I8EZPEZPortconnectionhub
·1NV-NC13meternetworkcable
·1NV-PC2NAPowerCable,2wire,NorthAmerica
·1pr.NV-REMRackEarMounts
NV-I8GXSGrandConcertoExpanderSystem
·NV-I8GXGrandConcertoExpanderAmplifier
·6NV-I8GCPControlPadswithwhite,ivory,almond
andblackscrewlesstrimplates
·1NV-GRC1RemoteControl
·1NV-SLCAudioLinkcable
·1NV-DLCDigitalLinkcable
·
·1pr.NV-REMRackEarMounts
1NV-PC2NAPowerCable,2wire,NorthAmerica
GrandConcertoPackageContents
Zones 1-6 Power Amplifier Outputs Zone Trigger Outputs
Continuous Average Output Power 80W (40W x 2) Output Power 12V @ 50mA
Two channels driven 30-20kHz @1% THD Outputs 8 (zones 1-8)
Rated Distortion (1/2 power) 0.40%
Rated Impedance 6 Ohms Source Status
Damping Factor 50+ Output Power 3-15 VDC
Frequency Response
20-20kHz
2dB
Outputs 6 (Source 1-6)
Zones 1-8 Preamplifier Outputs Power Requirements
Variable output 0-600mV
Power Supply- North American
120VAC/ 50Hz
Fixed output 600mV
Power Consumption all channels
600VA (480W)
Impedance 600 Ohms
driven to full-rated power
Power Consumption average
100VA (80W)
Source Inputs 1-6
operating conditions
input Impedance 20K
Power Consumption no signal
30VA (25W)
Input Sensitivity for rated power 300mV RMS
USA Safety Listing (UL 6500)
Input Overload 3V RMS
Canada Safety Listing (CAN/CSA E60065.00)
CE Listing/SEMKO (EN60065, EN55013,
Emitter Outputs
EN55020, EN6100-3-2, EN6100-3-3/A1)
Source Outputs 6
Sum Outputs 2
Physical Specifications
Output Drive Current 100mA
Unit Size Millimeters 95 x 430 x 340 (LWH)
Output Drive Voltage 12V
Unit Size Inches 3 3/4 x 17 x 13 3/8 (LWH)
Compatible with single and dual emitters
Shipping Size Millimeters 600 x 475 x 380 (LWH)
Shipping Size Inches 23 5/8 x 18 3/4 x 15 (LWH)
System
Unit Weight Kilograms 9.4
System On (output) 12V @ 50mA
Unit Weight Pounds 20.6
External Mute (input) 3-12V DC
Shipping Weight Kilograms 15.5
Shipping Weight Pounds 34.0

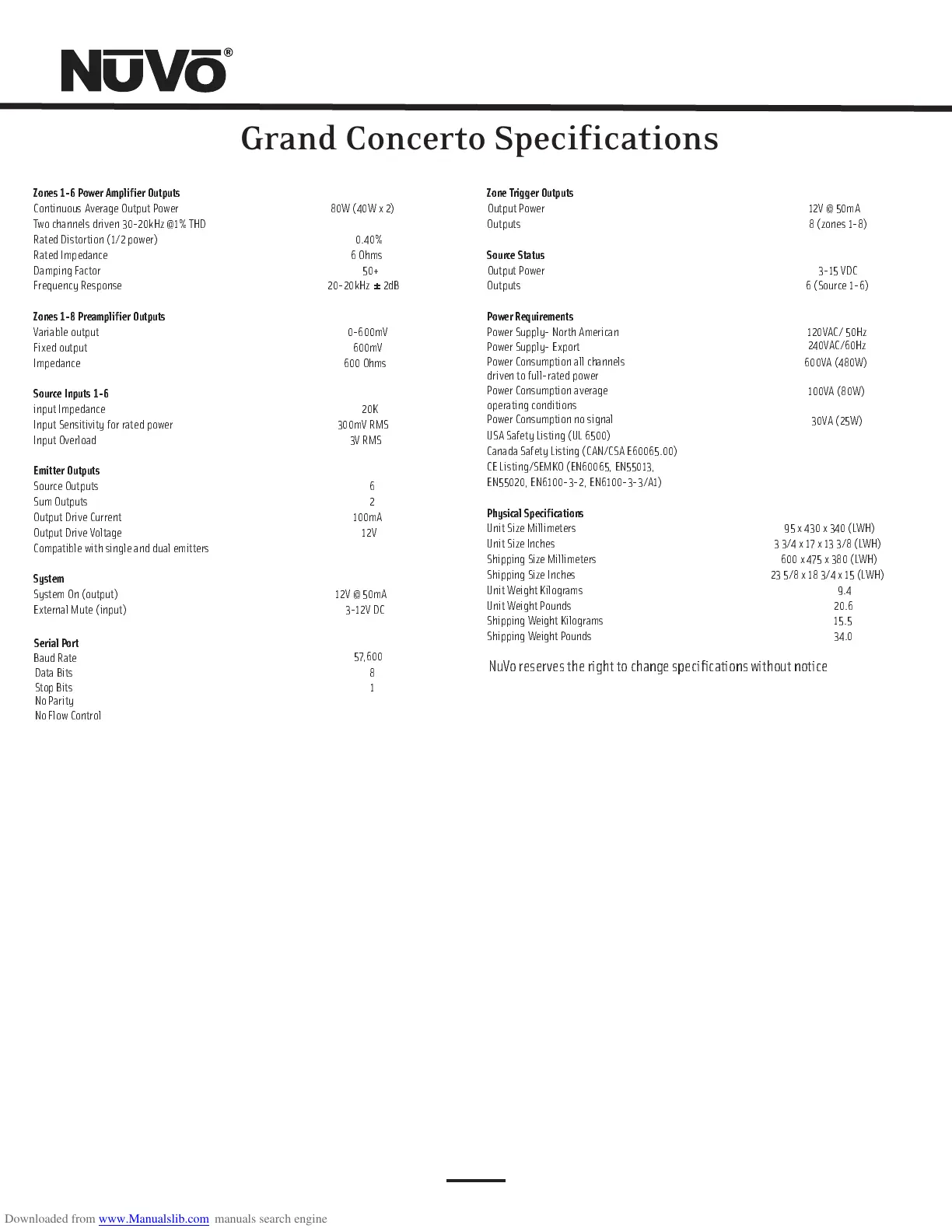

GrandConcertoSpecifications
Serial Port
Baud Rate
Data Bits
Stop Bits
No Parity
No Flow Control
57,600
8
1
NuVo reserves the right to change specificationswithout notice
Power Supply- Export
240VAC/60Hz
