ALPHA / NUMERIC DISPLAYS
Each numeric and graphic display represents a
unique piece of information. It is imperative that
you understand the formats, ranges, and values of
the information represented to avoid any possible
misunderstanding that could result in error.
Depth Displays
During a dive, the Current Depth display (Fig. 4a), indicates
depths from 0 to 330 feet (99.9 meters) in 1 foot (.1 meter)
increments.
By pressing the Advance (Front) button, the Maximum
Depth reached during that dive will be displayed in the
center/left portion of the display (Fig. 4b).
• When the unit is set to operate as a digital depth gauge/
timer (referred to as User Set Gauge Mode), the Depth
Display range is 'extended' to 399 feet (120 meters). At
depths greater than 99.9 meters it will indicate metric
values in increments of 1 meter.
During a Decompression Dive, the required Ceiling Stop
Depth is displayed in the center of the screen. Maximum
Depth can be viewed by pressing the Advance (Front) button.

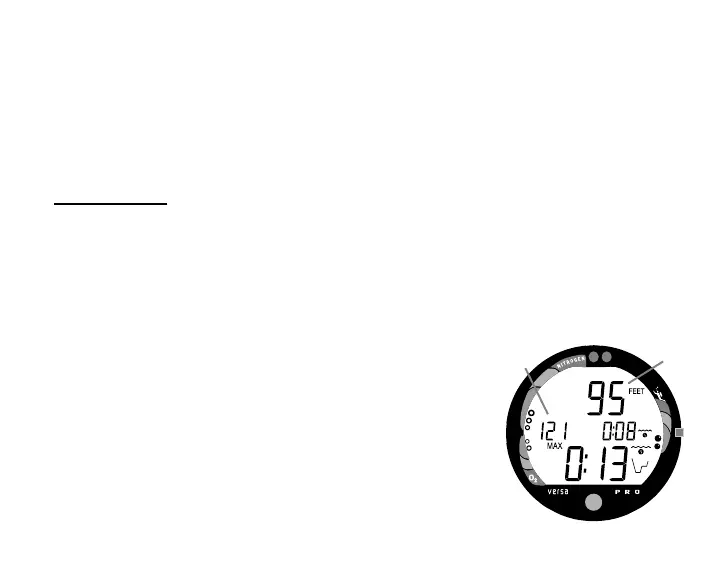

Fig. 4 - Depth Displays
a
b
