Battery Hatch Removal
• Locate the Battery Compartment on the back of the unit.
• While applying steady inward pressure on the clear
Battery Hatch, rotate the Hatch Ring clockwise 10 degrees
by pressing on the upper/right arm of the Ring with a small
blade screwdriver (Fig. 90).
NOTE: If available, an adjustable face spanner tool
or a pair of pointed pliers can be used instead of the
screwdriver by inserting the tips of the tool in the
small holes in the Ring (Fig. 91).
• Lift the Hatch Ring up and away from the Housing.
• Remove the clear Battery Hatch.
Battery Removal
• Remove the Retaining Bar located across the lower portion
of the Battery (Fig. 92a).
• Remove the Hatch O-ring. DO NOT use tools
• Using care not to damage the Battery Contacts (Fig. 92 b/
c), slide the Battery up and out of the right side of the
Battery Compartment.
NOTE: DO NOT allow a metal object to short circuit
the top of the Battery which is positive (+) to the
negative ( - ) contact of the Battery Compartment.

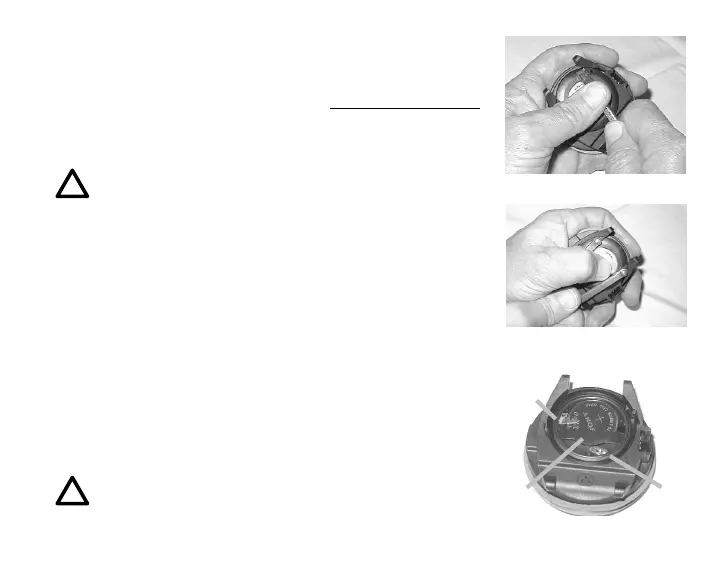

Fig. 90 - Ring Removal
Fig. 91 -Ring Removal
(alternate)
Fig. 92 - Battery Compartment
a
b
c
