42641101TH Rev.1 68 /

Oki Data CONFIDENTIAL

1 Images are light or blurred entirely.

• Is toner low (is the TONER LOW message displayed)?

• Yes Supply toner.

• No Is paper of the specified grade being used?

• No Use paper of the specified grade.

• Yes Is the lens surface of the LED head dirty?

• Yes Clean the lens.

• No Is the LED head being installed properly (check the

HEAD connector of the main control board and PC

connector on the LED head for proper connection)?

• No Install the LED head properly.

• Yes Is the contact plate of the transfer roller in contact with the

contact assembly of the power supply/sensor board prop-

erly (see Figure 5-5)?

• No Adjust the contact plate of the transfer roller to make a proper contact with the high

voltage/sensor board and shaft of the transfer roller.

• Yes Are the contact of the developing roller and the contact of the toner supply roller of the image

drum cartrige in contact with the contact assembly properly (see Figure 5-4

A and B )?

• No Adjust the contacts of the developing and toner supply roller to make a proper contact

with the contact assembly.

• Yes Replace the transfer roller.

• Has the problem been solved?

• Yes End

• No Replace the image drum cartridge.

• Has the problem been solved?

• Yes End

Note:

After replacing the image drum cartridge, reset the drum counter (see User's

Manual).

• No Is the tension between the back-up roller (7.52kg) and the surface of back-up roller normal?

• No Replace the back-up roller or bias spring.

• Yes Replace the main control board or high voltage/sensor board.

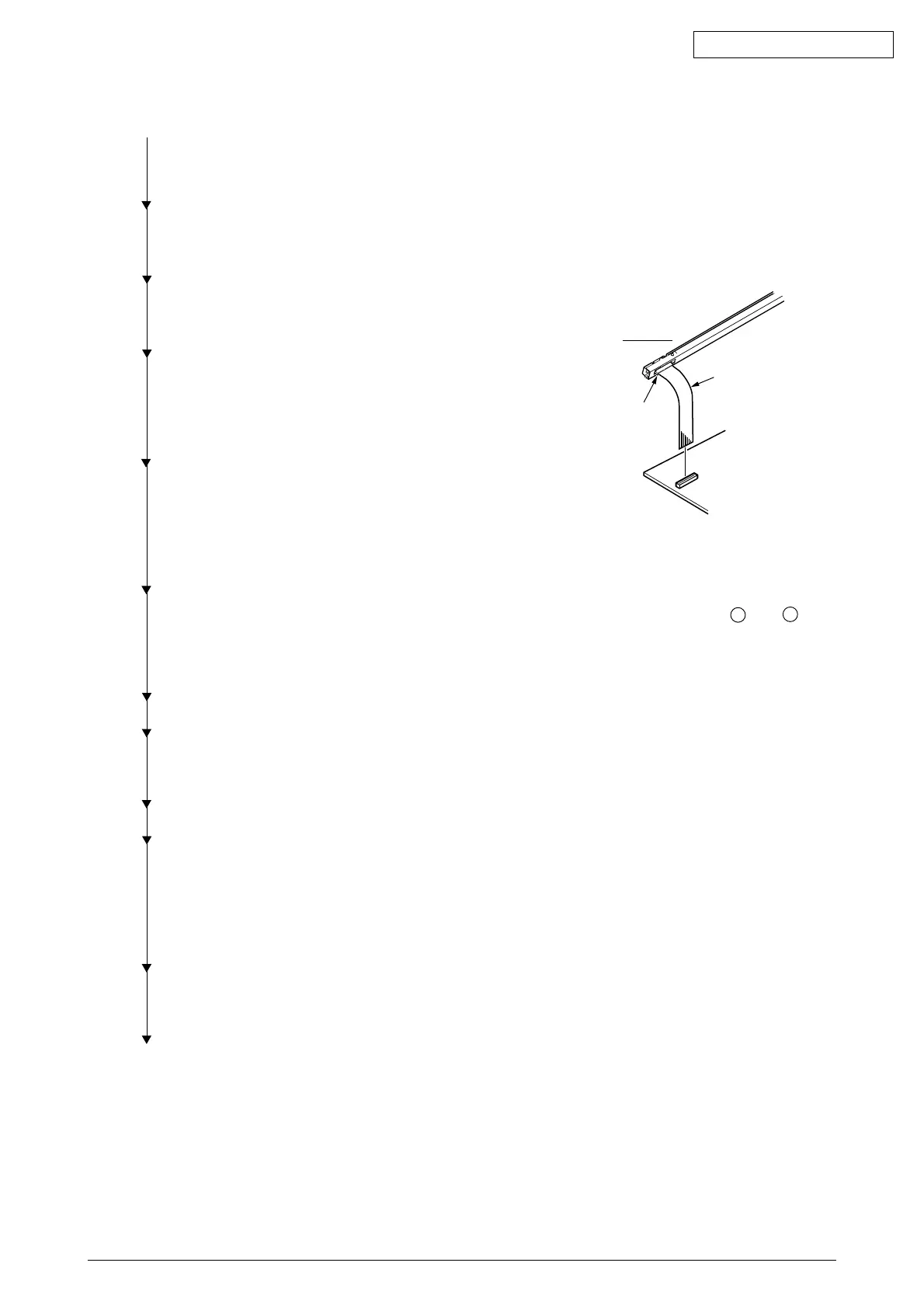

PC connector

LED head cable

HEAD Main control board

LED head
