Installing the Parallel Interface Cable
You'll need a shielded parallel interface cable not more than 10 feet (3 meters) long, with a Centronics
36-pin male connector for attachment to your printer.
1.If you have not already done so, remove the styrofoam end pieces and the plastic wrapping from
the printer.
2.Make sure the printer is unplugged and the computer is turned off.
3.Turn the printer over and place it gently on a sturdy, flat surface.

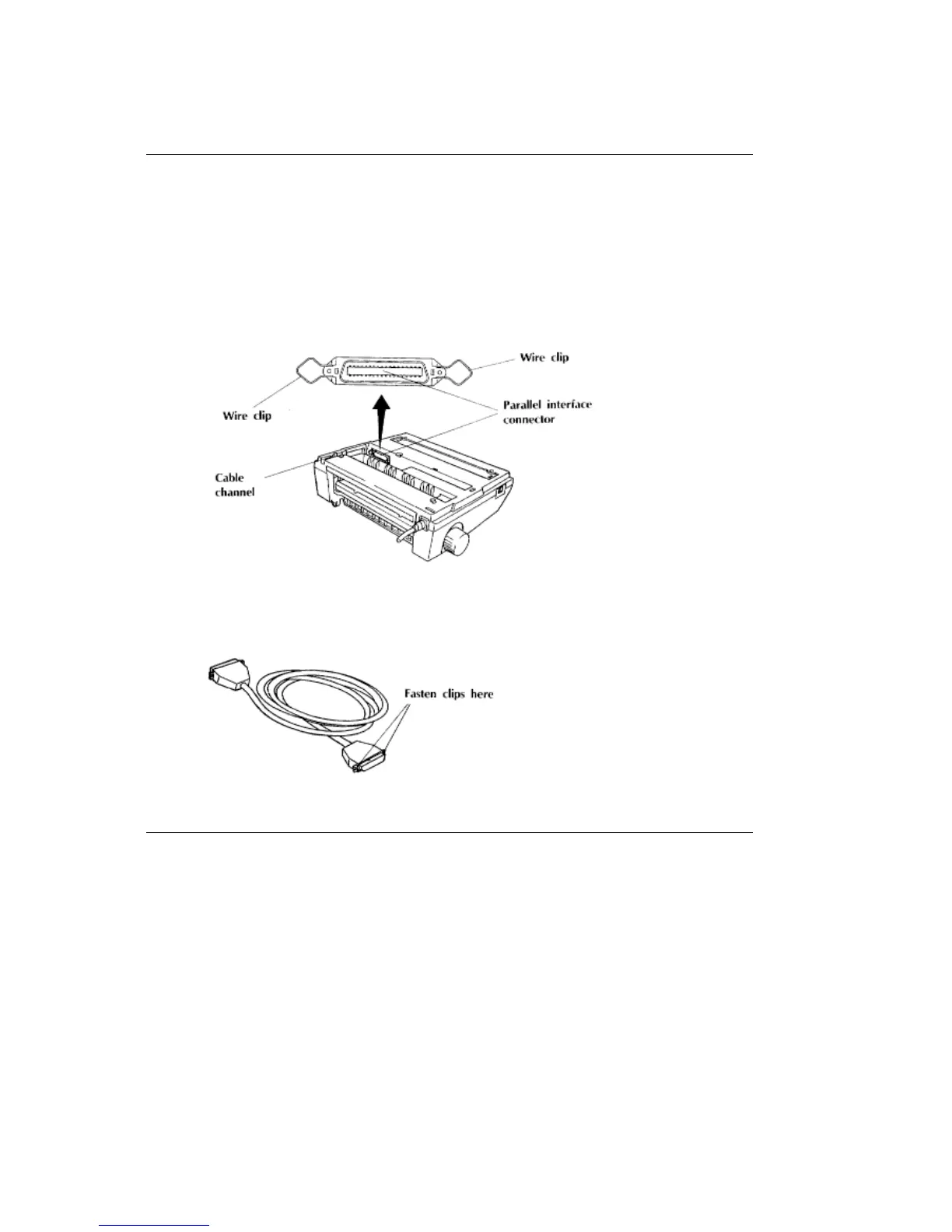

4.Locate the parallel interface connector and push the wire clips out to the side.
5.Plug your parallel interface cable into the port on the bottom of the printer.
6.Fasten the wire clips to the cable.
7.Snap the interface cable into the cable channel.
8.Turn the printer back over.
9.Connect the other end of the cable with the parallel connector on your PC.
ML 380 ( 96-02-03 )
