40

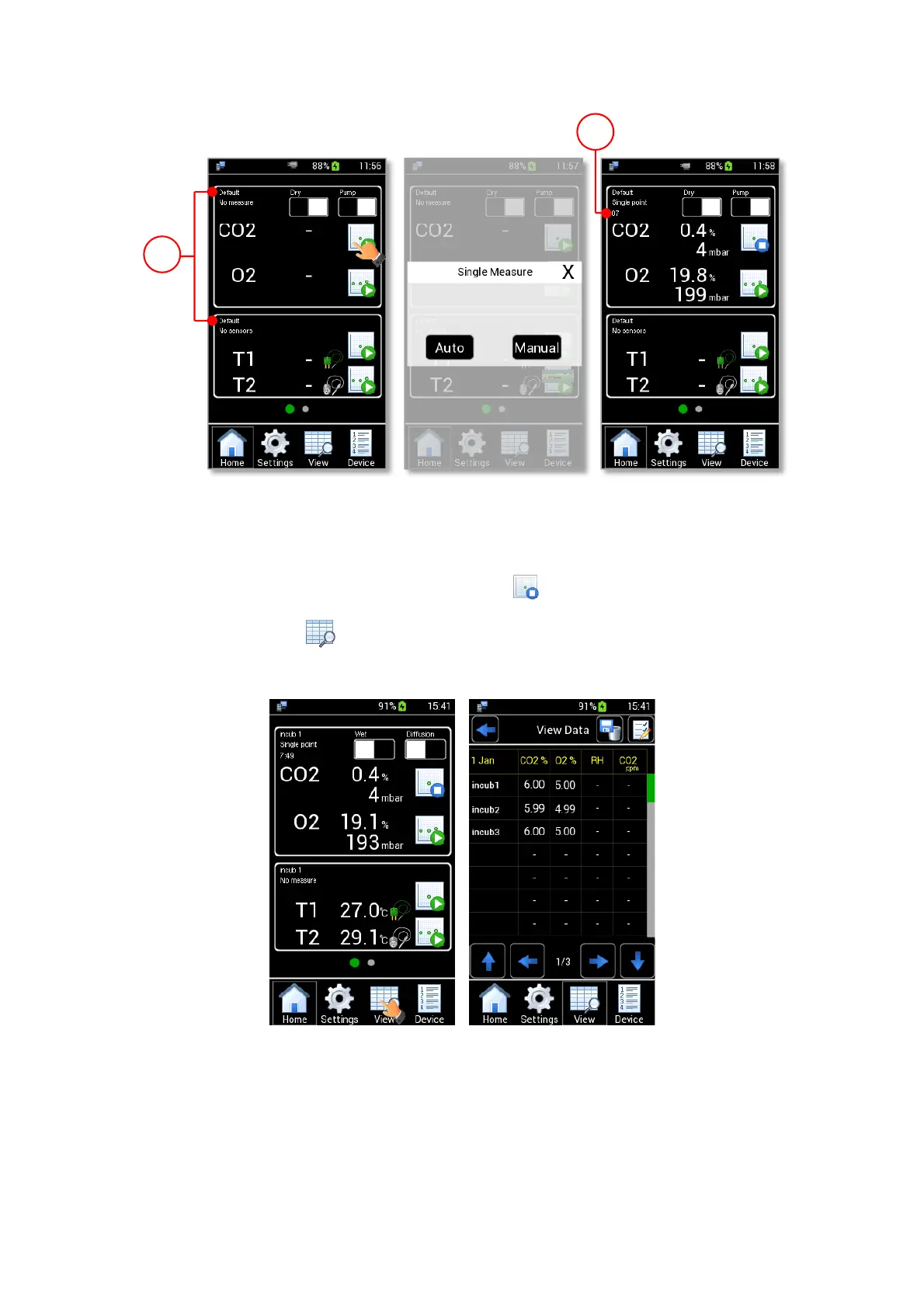

Figure 50. CO2-O2 single point measurement (a – b - c).
During the CO2-O2 Single Point Measurement, CO2 and O2 gas concentration values appear on the
Homepage. The CO2-O2 Single Point Measurement icon becomes (see Figure 50 c).
3. Press the View icon to view data stored (see Figure 51 a). More details are reported in chapter
12.
ba
Figure 51. View data stored (a – b - c).
10.1.4 CO2-O2 Logging
To start a CO2-O2 Logging follow the instructions below.
1. Select the Device for which the data have to be stored (see paragraph 9.3.1).
b ca
1
2
