Digital linking
Modules are linked in-line via an MPI 22 or equivalent RS-485 double twisted pair cable, at least
0.22 mm² in diameter. One pair supplies power to the module, the second pair is used for the digital
RS-485 link.
ISC – personnel should verify that the correct cable has been used in terms of type and capacity.

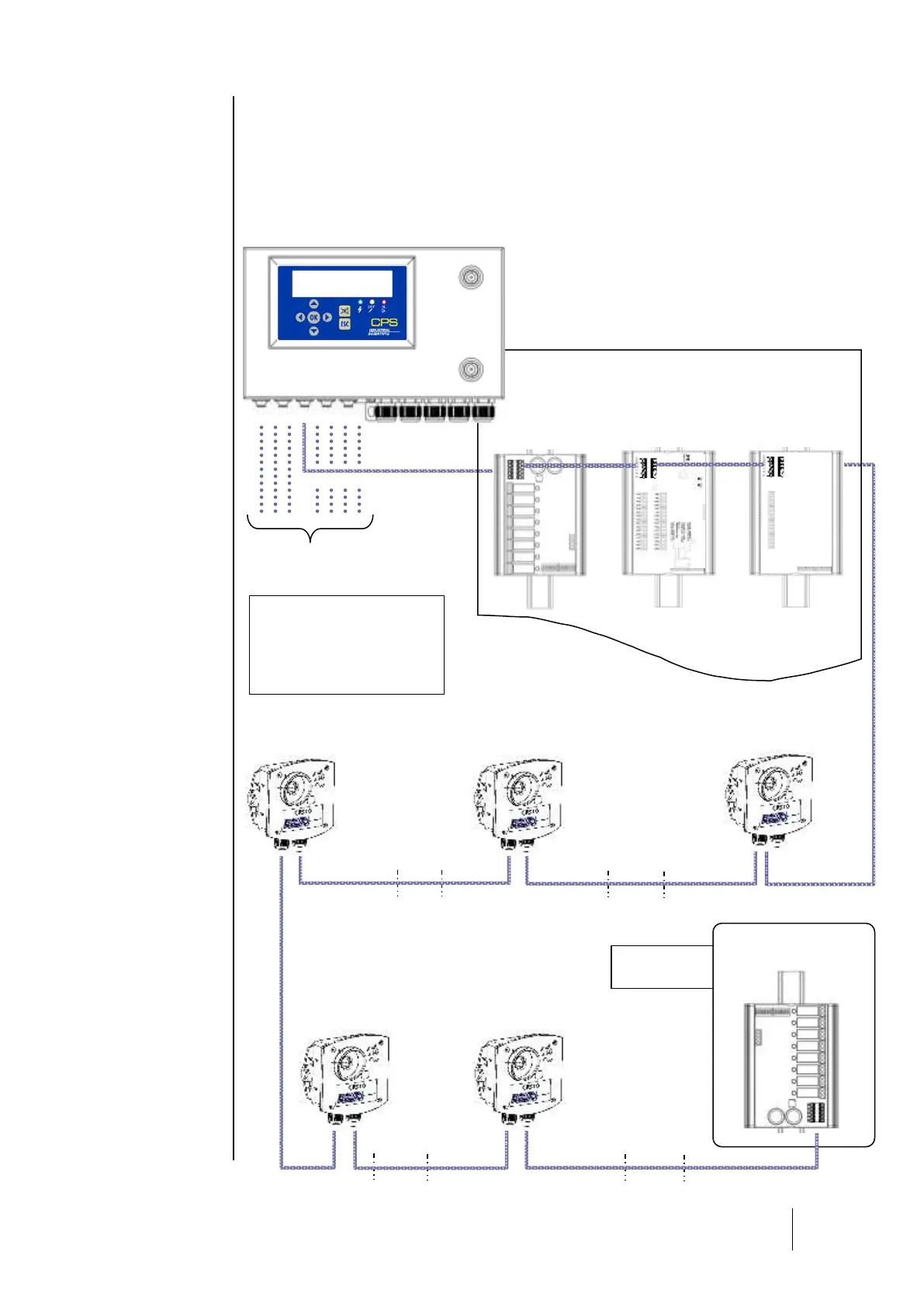

8 measuring lines
( RS485 )
Module n
Detector CPS 10
Module FIN de LIGNE
Digital line connection
End line changeover
switch
Module n
Detector CPS 10
Module n
Detector CPS 10
Module n
Relay CPS RM4
Module n
Detector CPS 10
Module n
Detector CPS 10
32 DIGITAL MODULES MAX PER LINE
Max length line: 1.2 Km (up to
4.8km with repeaters optional.)
CABINET
Analog Output
CPS AO4
Logic input
CPS AI16
Module 2
Module 3
Module 1
Relay
CPS RM8
