2KR/2KS
1-1-8
1-1-3 Machine cross section

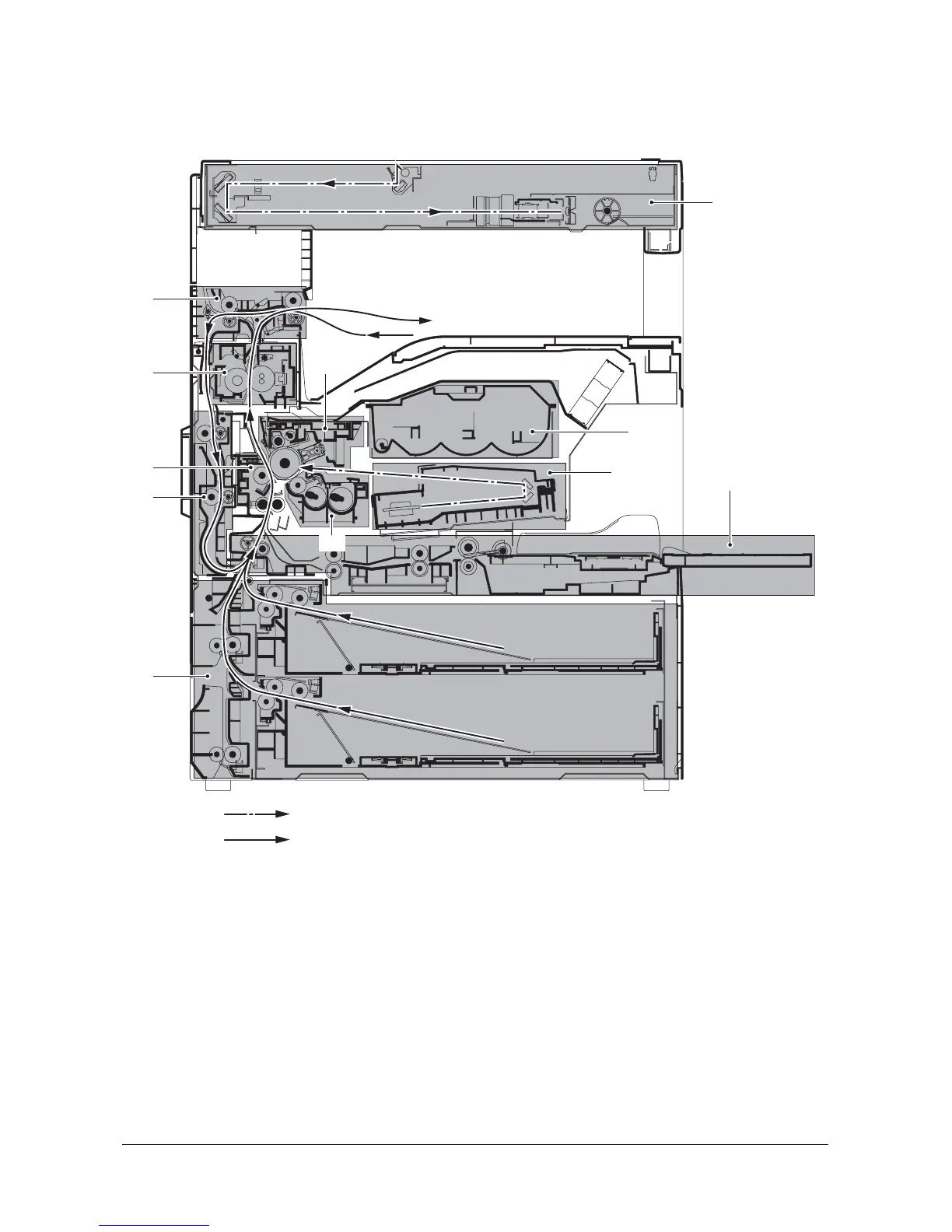

Figure 1-1-5 Machine cross section
Paper path
Light path
1
4
2
3
5
6
7
11
8
10
9
1. Cassette paper feed section
2. MP tray paper feed section
3. Image scanner section
4. Laser scanner section
5. Drum section
6. Developing section
7. Toner container section
8. Transfer and separation sections
9. Fuser section
10. Eject and switchback sections
11. Duplex section
Service Manual Y111960-2
