2KR/2KS
2-1-1
2-1 Mechanical construction
2-1-1 Paper feed section
The paper feed section consists of the primary feed and secondary feed subsections. Primary feed conveys paper from
the cassettes 1, 2 or MP tray to the left and right registration rollers, at which point secondary feed takes place and the
paper travels to the transfer section in sync with the printing timing.
(1) Cassette paper feed section
Each cassette consists of a lift driven by the lift motor and other components. Each cassette can hold up to 500 sheets of
paper. Paper is fed from the cassette by the rotation of the forwarding pulley and paper feed pulley. The separation pulley
prevents multiple sheets from being fed at one time, via the torque limiter.

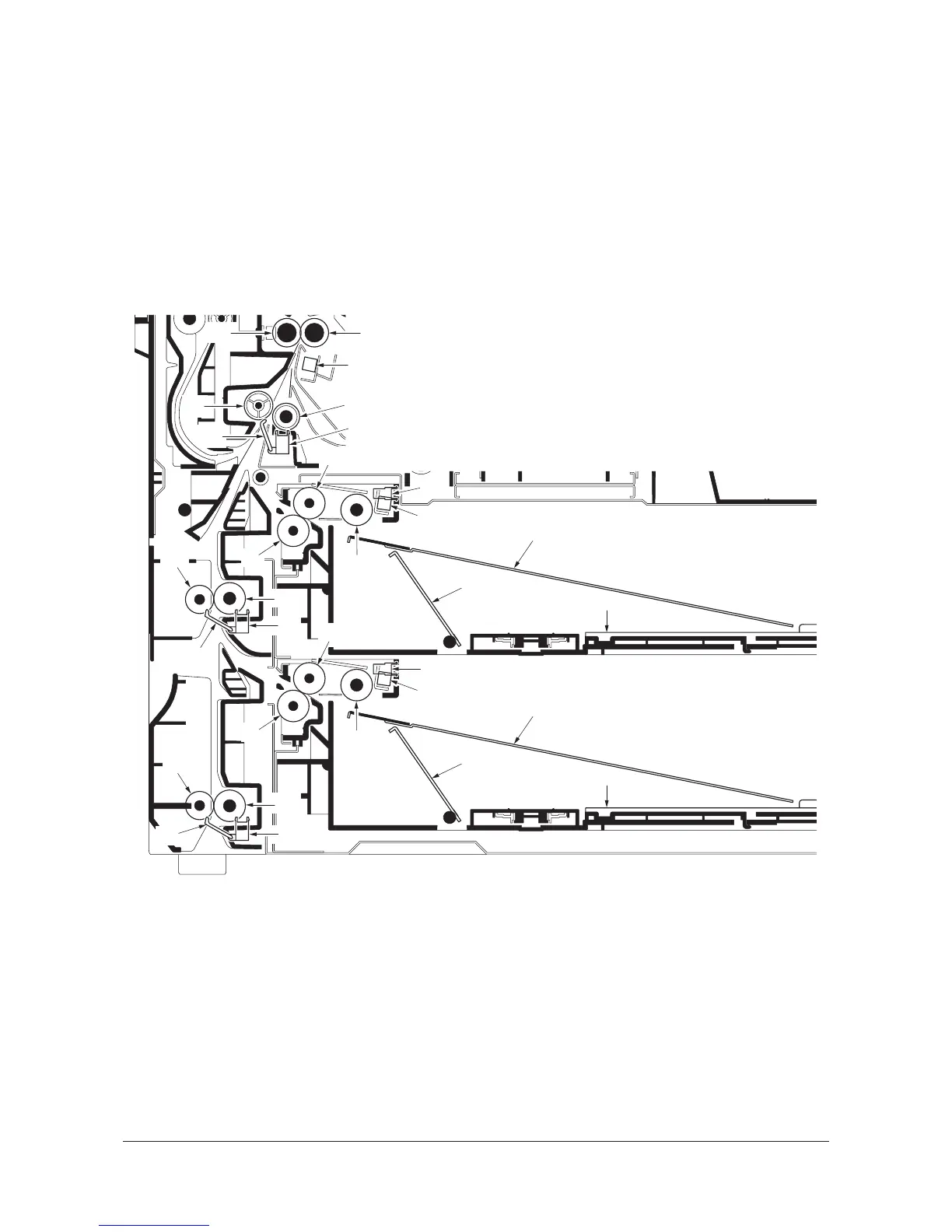

Figure 2-1-1 Cassette paper feed section
3
3
8
13
20
11
19
17
24
10
4
18
15
22
23
25
16
6
7
9
4
5
5
6
14
21
12
2
1
2
1
(1) Cassette base
(2) Cassette lift
(3) Cassette
(4) Forwarding pulley
(5) Paper feed pulley
(6) Separation pulley
(7) Paper switch 1 (PSW1)
(8) Paper switch 2 (PSW2)
(9) Lift switch 1 (LSW1)
(10) Lift switch 2 (LSW2)
(11) Right registration roller
(12) Left registration roller
(13) Feed roller 1
(14) Feed pulley
(15) Feed roller 2
(16) Feed pulley
(17) Feed roller 3
(18) Feed pulley
(19) Registration switch (RSW)
(20) Feed switch 1 (FSW1)
(21) Actuator (Feed switch 1)
(22) Feed switch 2 (FSW2)
(23) Actuator (Feed switch 2)
(24) Feed switch 3 (FSW3)
(25) Actuator (Feed switch 3)
Y111960-2 Service Manual
