1-5-3 Optical section
(1) Detaching and refitting the exposure lamp
Replace the exposure lamp as follows.
Procedure
1. Remove the original cover or the DP.
2. Remove the ISU filter cover.
3. Remove ten screws and then remove the
rear cover.

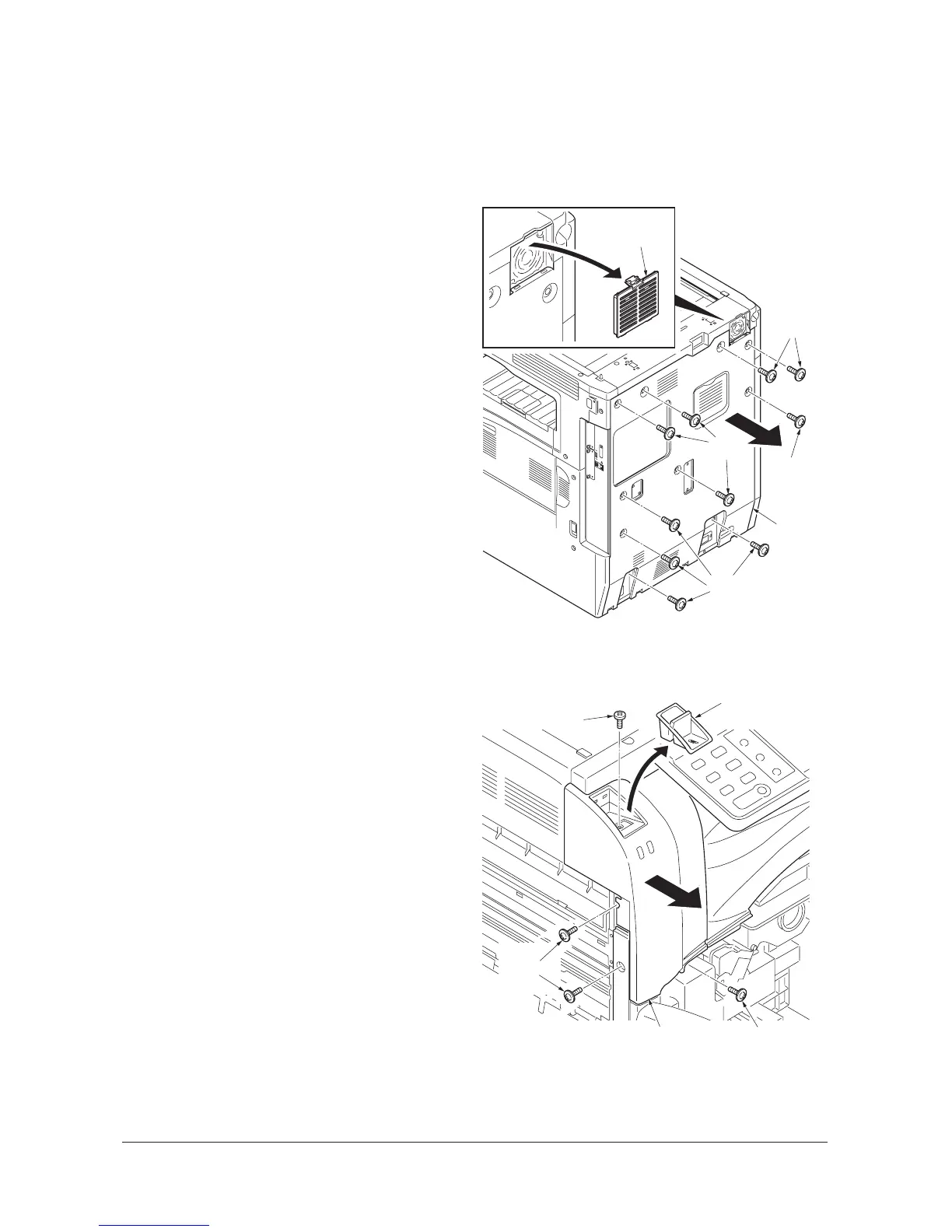

Figure 1-5-26
4. Remove the clip holder.
5. Open the front cover and left cover 1.
6. Remove four screws and remove front left
cover.
Figure 1-5-27
Rear cove
ISU filter cover
Screws
Screws
Screws
Screw
Front left cover
Clip holder
Screw
Screws
Screw
Service Manual Y111960-2
