(5) Direction of installing the principal fan motors
When detaching or refitting the fan motors, be careful of the airflow direction (intake or exhaust).

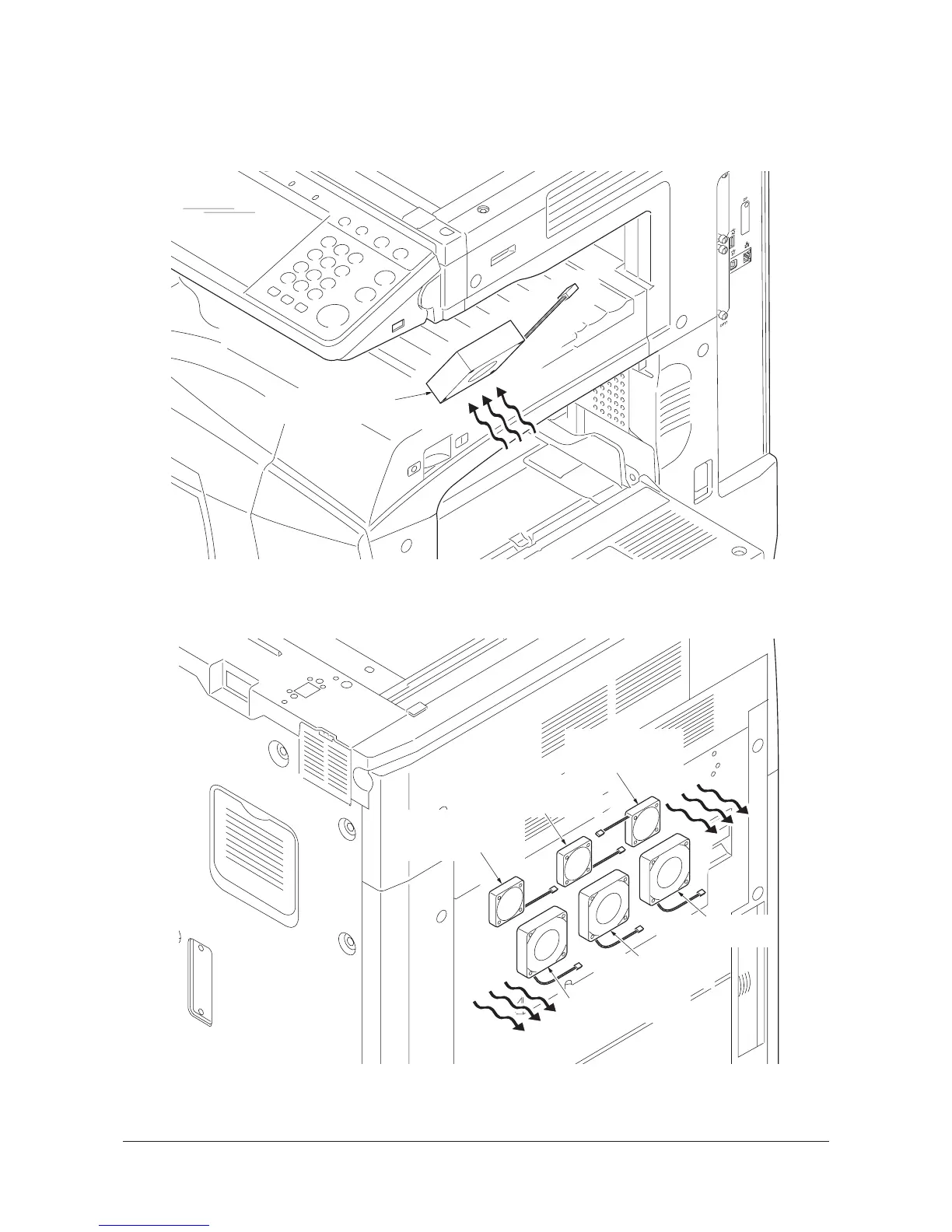

Figure 1-5-83Machine right
Figure 1-5-84Machine left
Developing fan motor
(Rating label: inside)
Intake
Paper conveying
fan motor 1
(Rating label: outside)
Paper conveying
fan motor 2
(Rating label: outside)
Paper conveying
fan motor 3
(Rating label: outside)
Duplex fan motor 1
(Rating label: outside)
Duplex fan motor 2
(Rating label: outside)
Duplex fan motor 3
(Rating label: outside)
Exhaust
Exhaust
Y111960-2 Service Manual
