2KR/2KS
2-1-3
(2) MP tray paper feed section
The MP tray can be hold up to 200 sheets of paper at one time. Paper is fed from the MP tray by the rotation of the MP for-
warding pulley and MP paper feed pulley. Also during paper feed, the MP separation pulley prevents multiple sheets from
being fed at one time by the torque limiter.

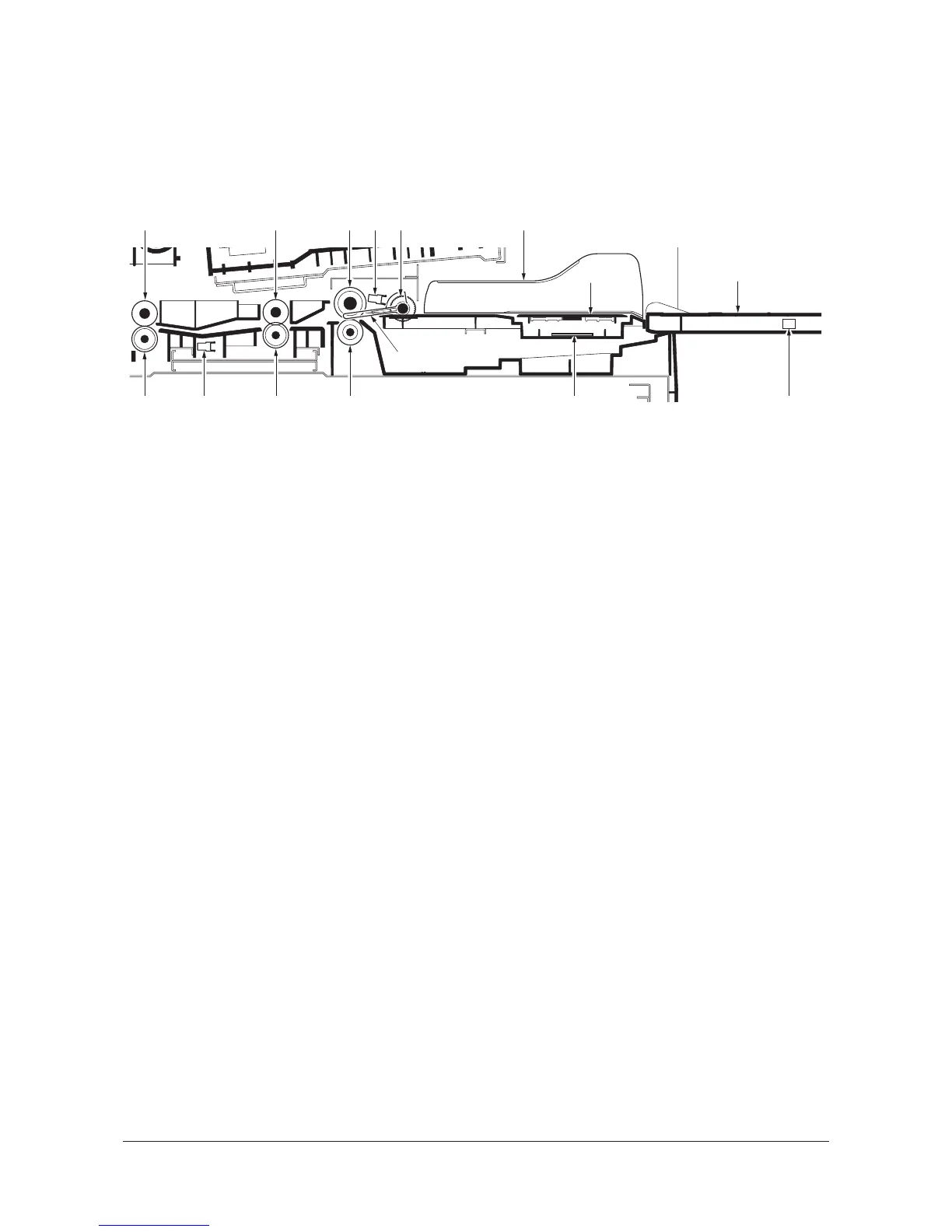

Figure 2-1-3 MP tray paper feed section
1
2
4115 38
6
14 131012
9
10
7
(1) MP tray
(2) MP lift guide
(3) Paper width guide
(4) MP forwarding pulley
(5) MP paper feed pulley
(6) MP separation pulley
(7) Paper stopper
(8) MP feed roller 1
(9) MP feed roller 2
(10) MP feed pulley
(11) MP paper switch (MPPSW)
(12) MP feed switch (MPFSW)
(13) MP paper size length switch
(MPPLSW)
(14) MP paper size width switch
(MPPWSW)
Y111960-2 Service Manual
