2KR/2KS
1-4-54

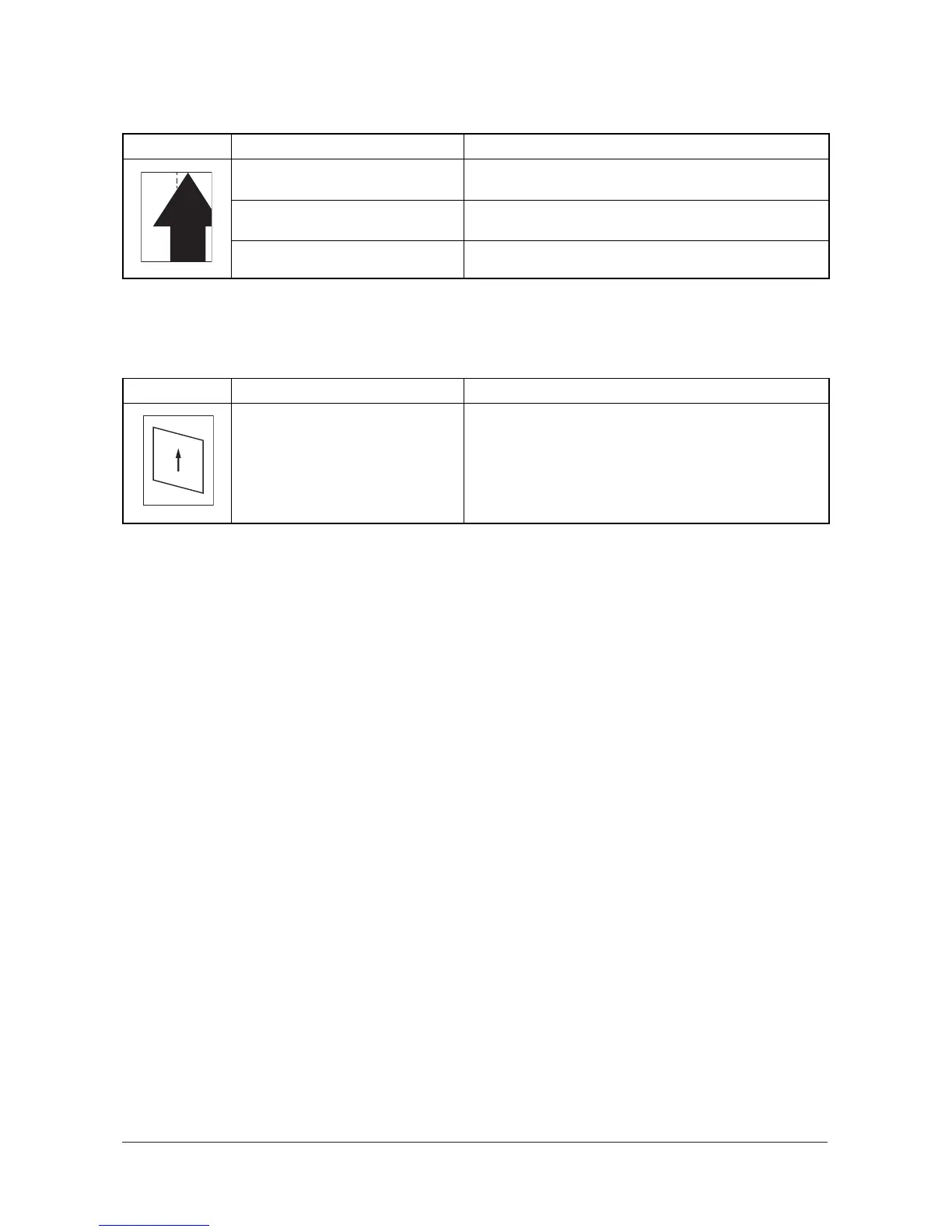

(18) Image center does not align with the original center.
(19) Image is not square.
Copy example Causes Check procedures/corrective measures
Misadjusted image center line. Run maintenance item U034 to readjust the center line of
image printing (see page 1-3-23).
Misadjusted scanner center line. Run maintenance item U067 to readjust the scanner leading
edge registration (see page 1-3-30).
Original is not placed correctly. Place the original correctly.
Copy example Causes Check procedures/corrective measures
Laser scanner unit positioned incor-
rectly.
Adjust the installation position of the laser scanner unit (see
page 1-5-24).
Service Manual Y111960-2
