2KR/2KS
1-5-5
(2) Detaching and refitting the MP separation, MP paper feed and MP forwarding pulleys
Follow the procedure below to replace the MP separation, MP paper feed and MP forwarding pulleys.
Procedure
Removing the MP unit
1. Remove four screws and remove the right
lower cover.

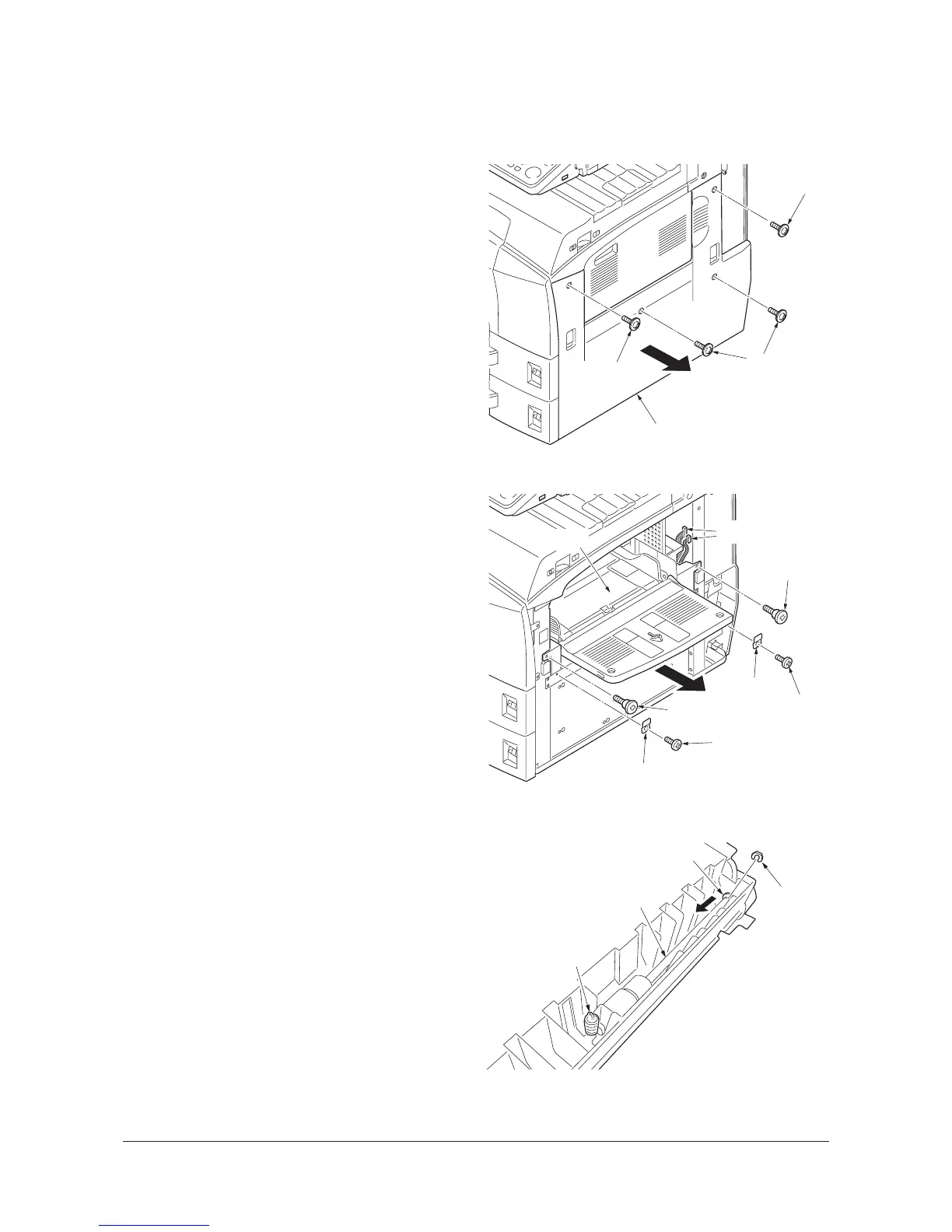

Figure 1-5-9
2. Remove two screws and two MP holder
plates.
3. Remove two pins, two screws and two con-
nectors, and then remove the MP unit.
Figure 1-5-10
Removing the MP separation pulley
4. Reverse the MP unit and remove the spring
and stop ring from the MP separation pulley
shaft and move the bushing inside.
Figure 1-5-11
OPT1
Right lower cover
Screw
Screws
Screw
OPT1
MP holder plate
MP holder
plate
Pin
Pin
Screw
Screw
Connectors
MP unit
Stop ring
MP separation
pulley shaft
Spring
Bushing
Y111960-2 Service Manual
To Next Page
