2KR/2KS
1-5-10
(3) Detaching and refitting the left and right registration cleaner
Take the following procedure when the left or right registration cleaner is to be replaced.
Procedure
Removing the left registration cleaner
1. Open the left cover 1 and remove the trans-
fer roller unit. (see page 1-5-29).
2. Remove two roller stoppers and remove the
left registration roller.
3. Remove two registration guides.

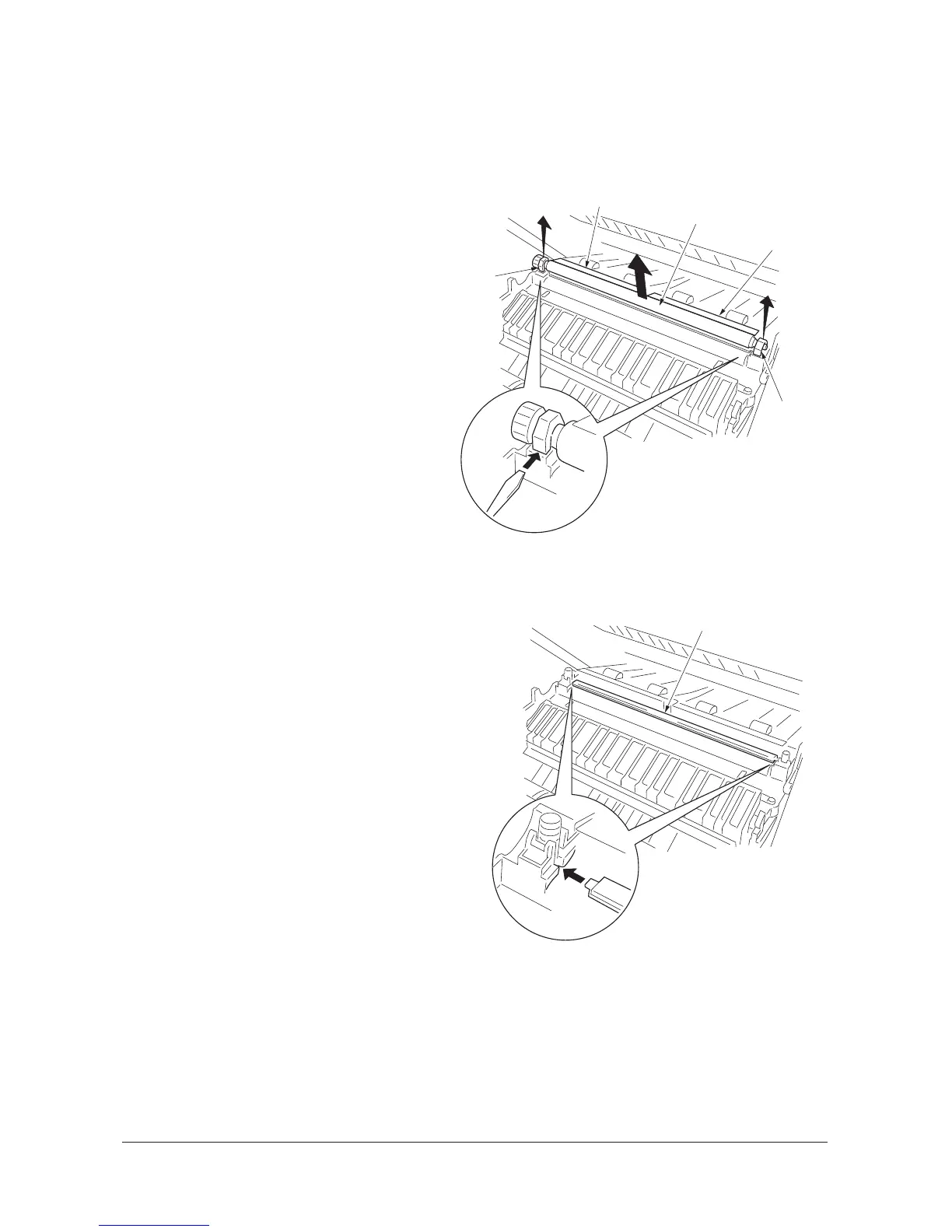

Figure 1-5-23
4. Remove the left registration cleaner.
5. Replace the left registration cleaner and reg-
istration guides.
Install the left registration cleaner and regis-
tration guides.
6. Refit the left registration roller, roller stop-
pers and transfer roller unit.
Figure 1-5-24
Left registration roller
Registration guide
Registration guide
Roller
stopper
Roller
stopper
Left registration cleaner
Service Manual Y111960-2
