Olivetti d-Copia 5200MF User Manual

2KR/2KS
2-1-14
2-1-5 Transfer and separation sections
The transfer and separation section consists mainly of the transfer roller, separation electrode and drum separation claws.
A high voltage generated by the high-voltage PWB (HVPWB) is applied to the transfer roller for transfer charging. Paper
after transfer is separated from the drum by applying separation bias that is output from the high-voltage PWB (HVPWB)
to the separation electrode.

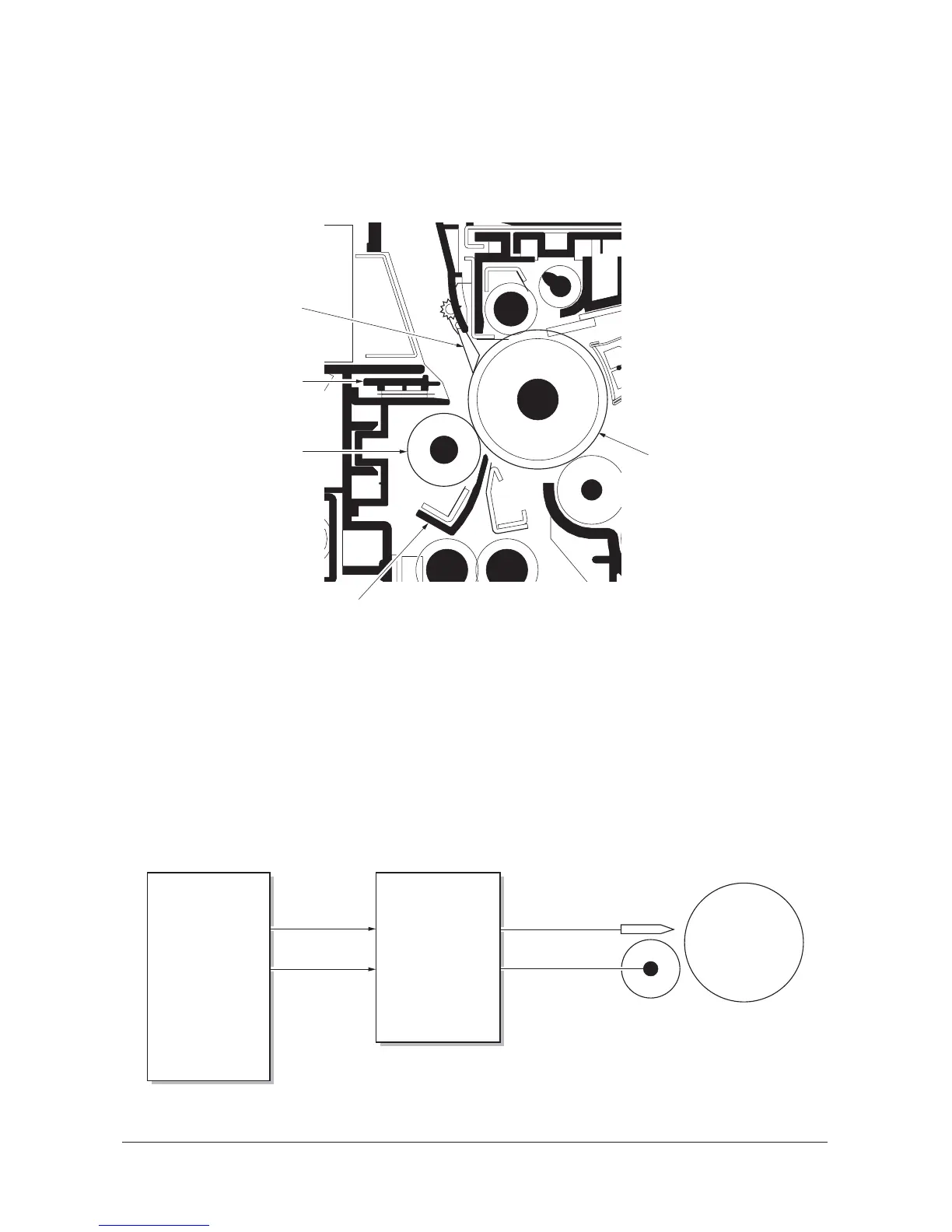

Figure 2-1-14 Transfer and separation sections
Figure 2-1-15 Transfer and separation sections block diagram
5
1
2
3
4
(1) Transfer roller
(2) Transfer guide
(3) Separation electrode
(4) Drum separation claws
(5) Drum
RHVDR
AC HV
TC HV
THVDR
CN1-6
CN1-10
YC13-6
YC13-10
EPWB
HVPWB
Transfer roller
Separation
electrode
Drum
Service Manual Y111960-2
