2KR/2KS
1-5-20
(3) Detaching and refitting the ISU (reference)
Follow the procedure below to replace the ISU.
Fitting requires the following tools
Two positions pins (P/N 127928K)
Procedure
Detaching the ISU
1. Remove the contact glass (see page 1-5-
12).
2. Remove seven screws and then remove the
ISU cover.

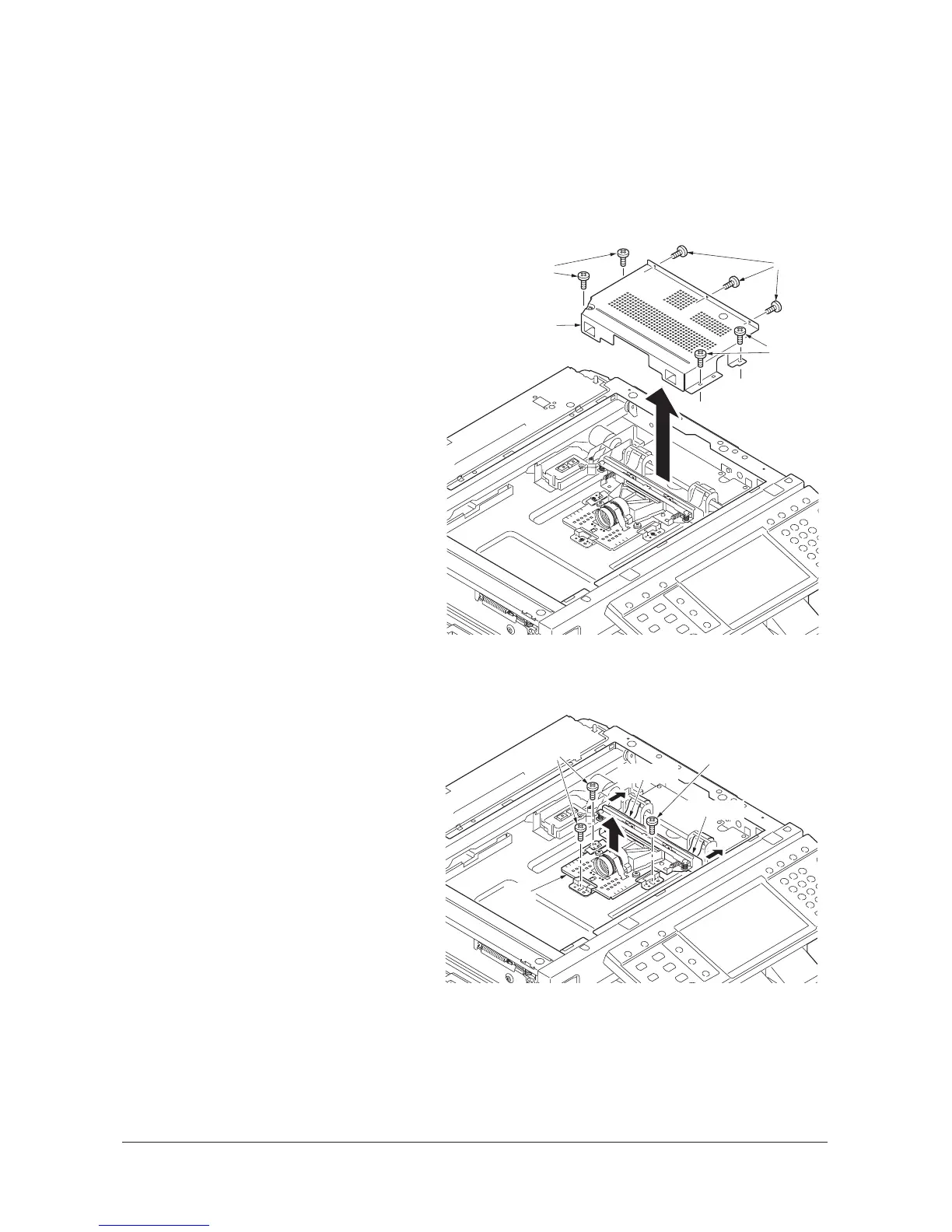

Figure 1-5-39
3. Remove three screws and two connectors,
and then remove the ISU.
4. Check or replace the ISU.
Figure 1-5-40
Screws
ISU cover
Screws
Screws
Connector
Connector
Screws
Screw
ISU
