2KR/2KS
1-5-19
18. Remove the two scanner wire stoppers and
frame securing tools.
19. Focusing on the locating ball of the wire
drum, move aside the wires to inside.
20. Move the mirror 2 frame from side to side to
correctly locate the wires in position.
21. Refit the mirror 1 frame.
22. Move the mirror 1 and 2 frames to the
machine left, and insert the two frame secur-
ing tools into the positioning holes at the
front and rear of the scanner unit to secure
the frames in position.
23. Hold the wires and fix each front and rear
wire holder plate to mirror 1 frame with the
screw.
24. Remove the two frame securing tools.
25. Refit the exposure lamp.

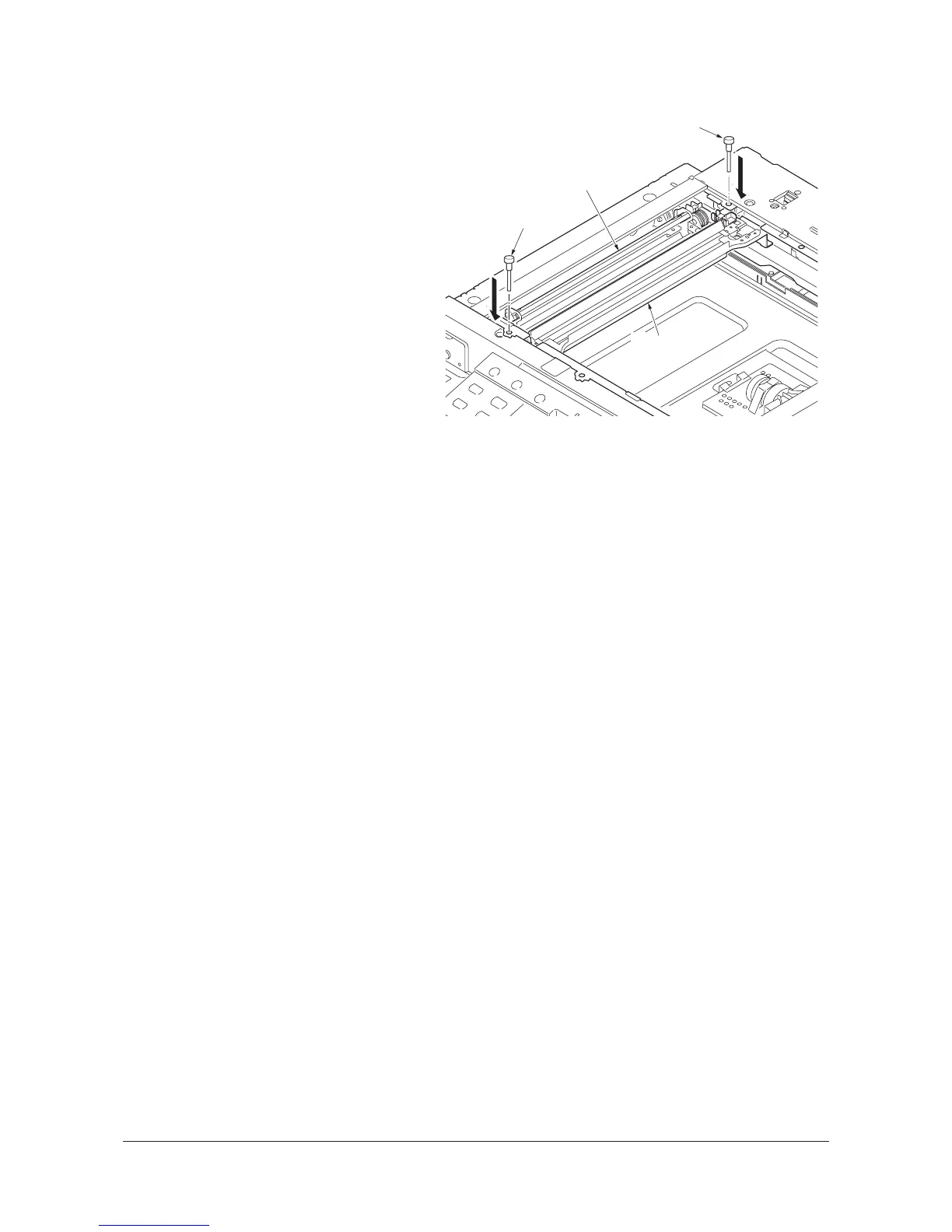

Figure 1-5-38
Frame securing tool
Frame securing tool
Mirror 1 frame
Mirror 2 frame
Y111960-2 Service Manual
