2KR/2KS
1-5-22

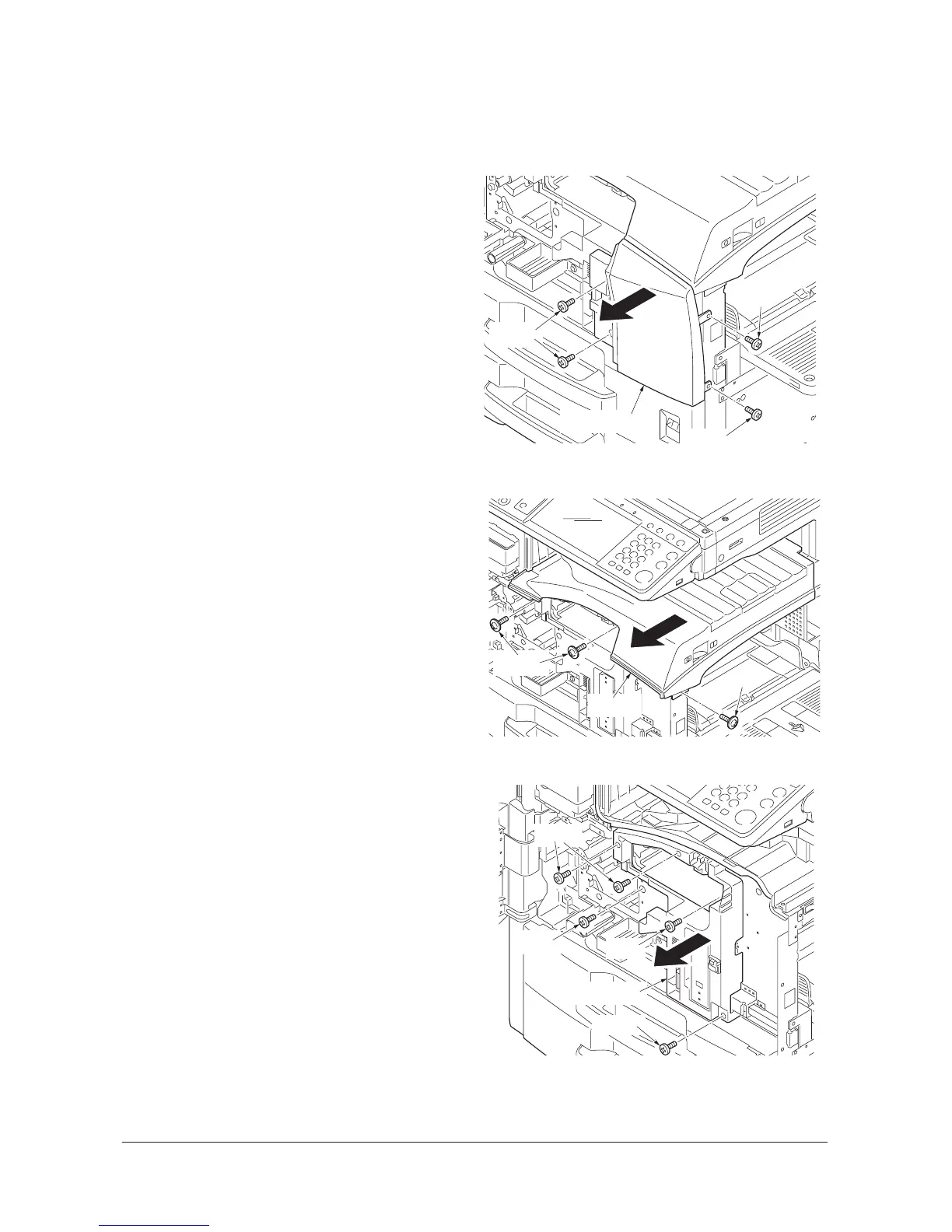

(4) Detaching and refitting the laser scanner unit
Take the following procedure when the laser scanner unit is to be replaced.
Procedure
1. Remove the developing unit and drum unit
(see pages 1-5-28 and 1-5-25).
2. Remove the right lower cover and front left
cover (see pages 1-5-5 and 1-5-12).
3. Remove four screws and remove the front
right cover.
Figure 1-5-43
4. Remove three screws and remove the top
tray.
Figure 1-5-44
5. Remove five screws and remove the inner
cover.
Figure 1-5-45
Screw
Front right cover
Screws
Screw
Screws
Screw
Top tray
Screw
Inner cover
Screws
Screw
Screw
Service Manual Y111960-2
