(1) Detaching and refitting the transfer roller unit
Follow the procedure below to replace the transfer roller unit.
Procedure
1. Open the left cover 1.
2. While holding down the projection, slide the
transfer roller unit toward the front to remove
it.
3. Replace the transfer roller unit and install
the unit.
4. Perform maintenance mode U127 to clear
the counter value (see page 1-3-48).

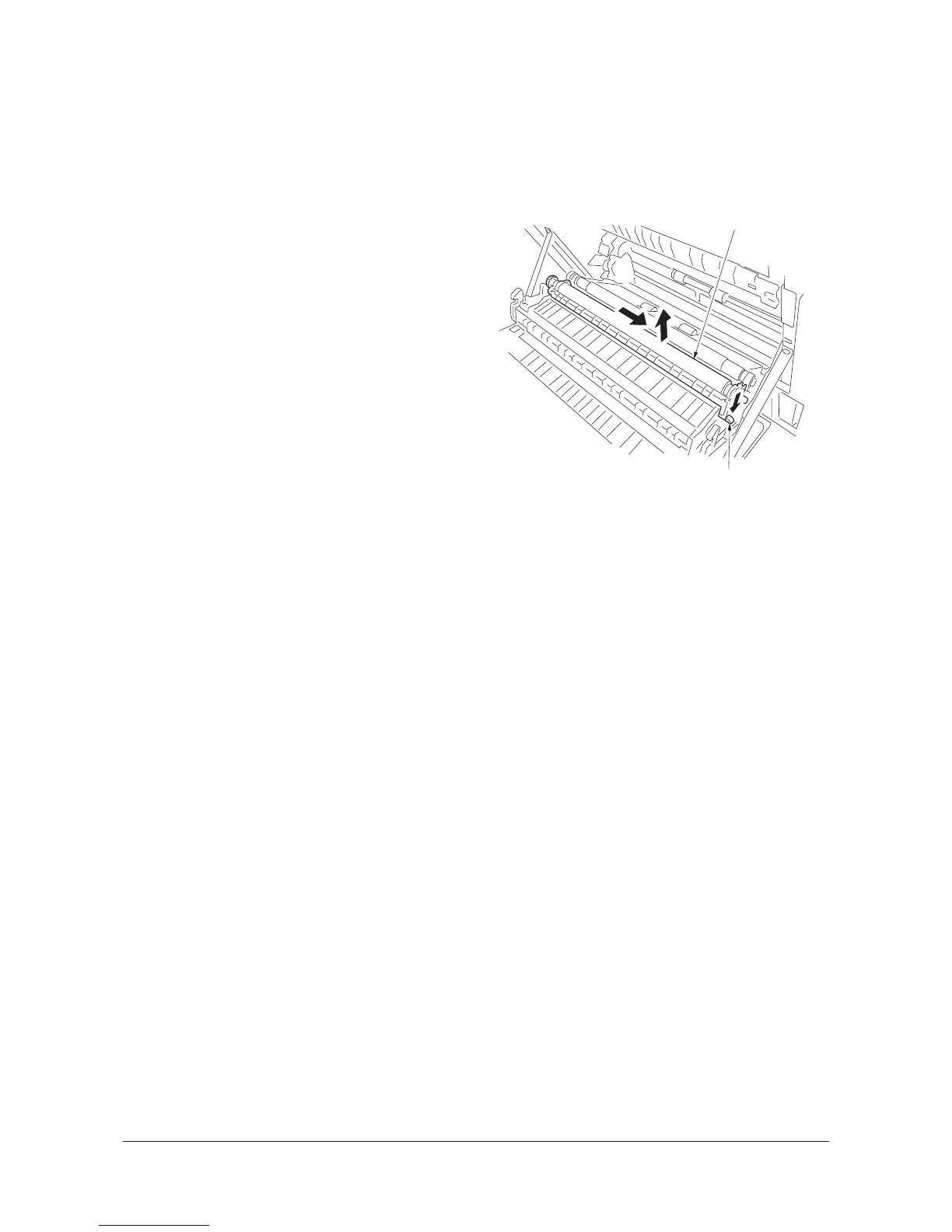

Figure 1-5-59
Transfer roller unit
Projection
Y111960-2 Service Manual
