2KR/2KS
1-5-26

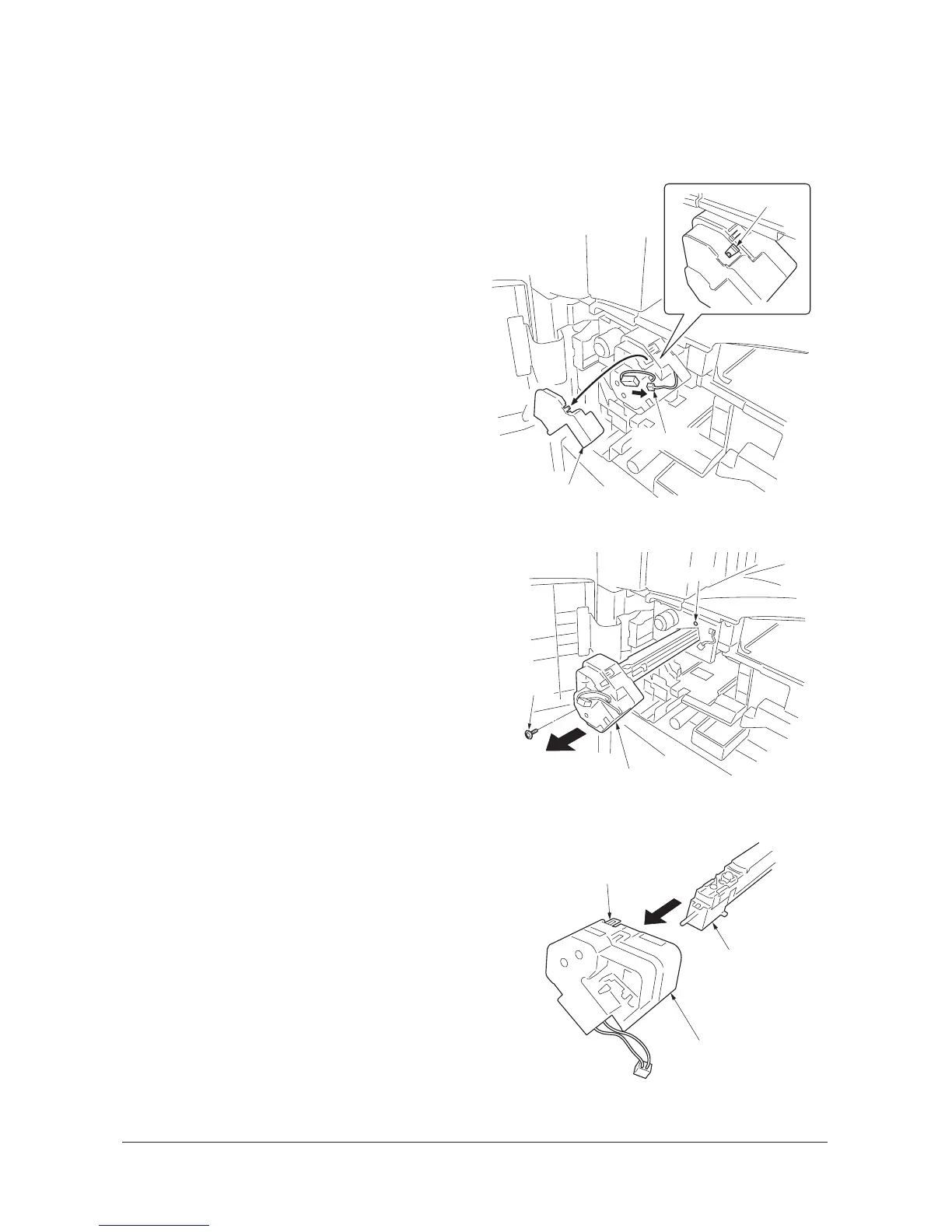

(2) Detaching and refitting the main charger unit
Follow the procedure below to replace the main charger unit.
Procedure
1. Remove the developing unit
(see page 1-5-28).
2. Release the inserted part and remove the
connector cover.
3. Remove the connector.
Figure 1-5-52
4. Remove the screw.
5. While pushing the hole with a sharp-pointed
object, remove the main charger unit.
Figure 1-5-53
6. Release the inserted part and remove the
cleaning motor unit from the main charger
unit.
7. Replace the main charger unit.
8. Refit the cleaning motor unit to the main
charger unit.
9. Install the main charger unit.
Figure 1-5-54
Connector cover
Connector
Inserted part
Main charger unit
Hole
Screw
Inserted part
Main charger unit
Cleaning motor unit
Service Manual Y111960-2
To Next Page
