2KR/2KS
2-1-17
2-1-7 Eject and switchback sections
The eject and switchback sections eject paper on which fixing has ended with the eject roller that is rotated by forward
rotation of the eject motor.
In duplex copying, paper is turned over by reverse rotation of the eject motor. When paper is transferred to the job separa-
tor or the internal finisher, the feedshift solenoid (FSSOL) is turned on to activate the feedshift guide to switch the paper
transfer path.

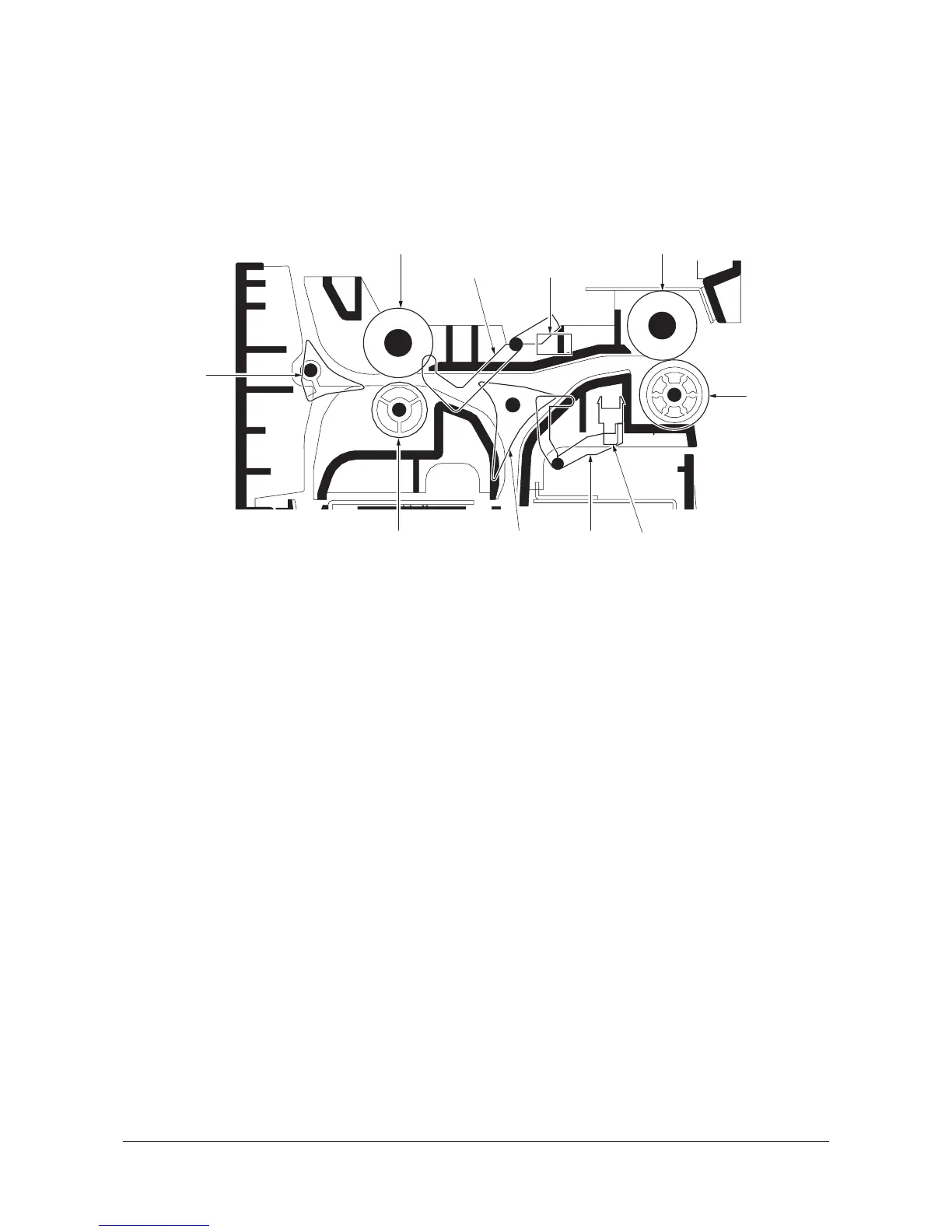

Figure 2-1-18 Eject and switchback sections
7
3
8
6
4
2
9
10
15
(1) Feedshift guide
(2) Eject roller
(3) Eject pulley
(4) Switchback roller
(5) Switchback pulley
(6) Feedshift guide
(7) Eject switch (ESW)
(8) Actuator (Eject switch)
(9) Feedshift switch (FSSW)
(10) Actuator (Feedshift switch)
Y111960-2 Service Manual
