2KR/2KS
1-5-3
1-5-2 Paper feed section
(1) Detaching and refitting the forwarding, paper feed and separation pulleys
Follow the procedure below to replace the forwarding, paper feed and separation pulleys.
Procedure

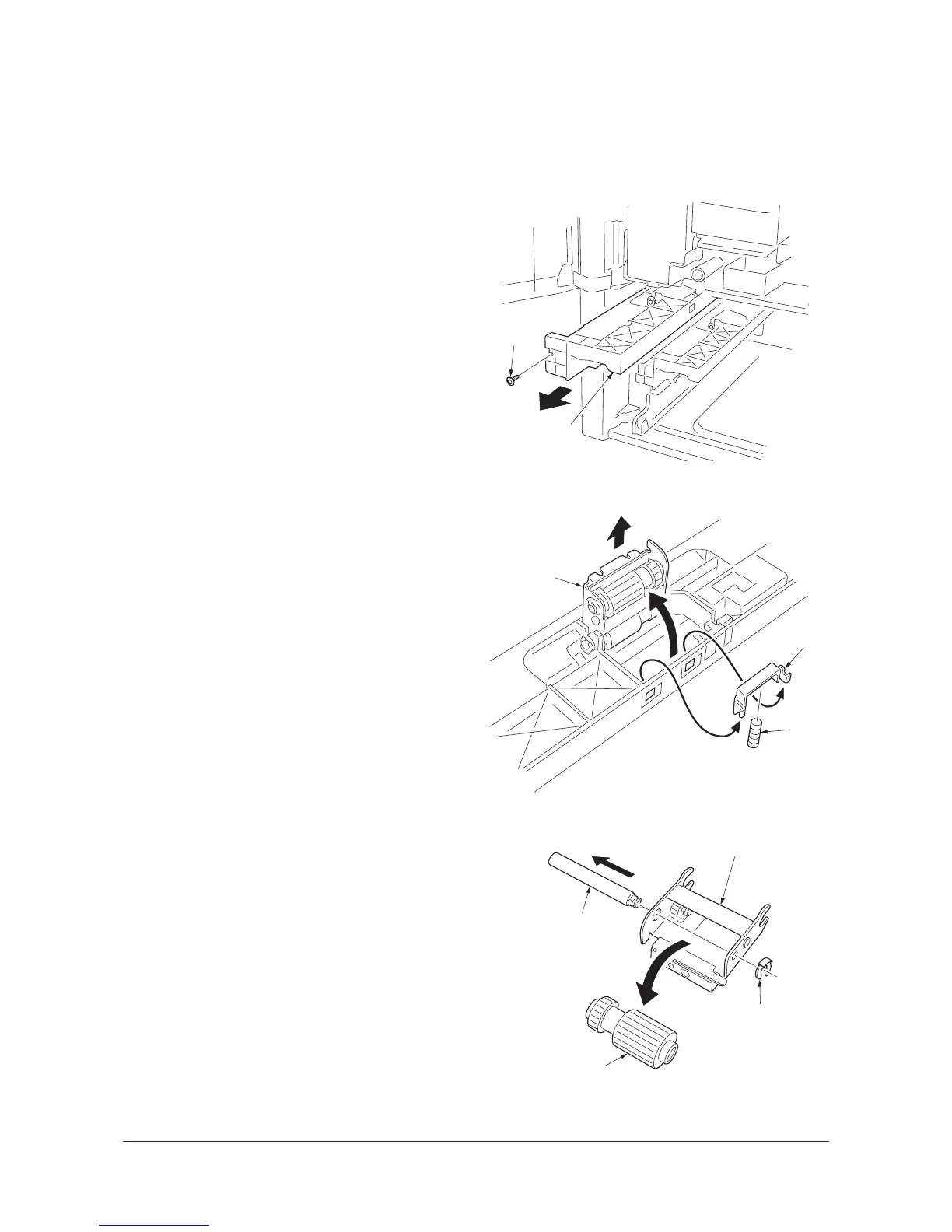

Removing the primary paper feed units
1. Open the front cover and pull out the cas-
settes 1 and 2.
2. Remove the screw and remove the primary
paper feed unit.
Figure 1-5-3
Removing the forwarding pulley
3. Remove the stopper and spring from the pri-
mary paper feed unit.
4. Raise the forwarding pulley retainer in the
direction the arrow, and remove from the pri-
mary paper feed unit.
Figure 1-5-4
5. Remove the stop ring from the forwarding
pulley retainer.
6. Remove the forwarding pulley from the for-
warding pulley shaft.
Figure 1-5-5
Primary paper
feed unit
Screw
Forwarding
pulley retainer
Stoppe
Spring
Stop ring
Forwarding
pulley shaft
Forwarding pulley retaine
Forwarding pulley
Y111960-2 Service Manual
