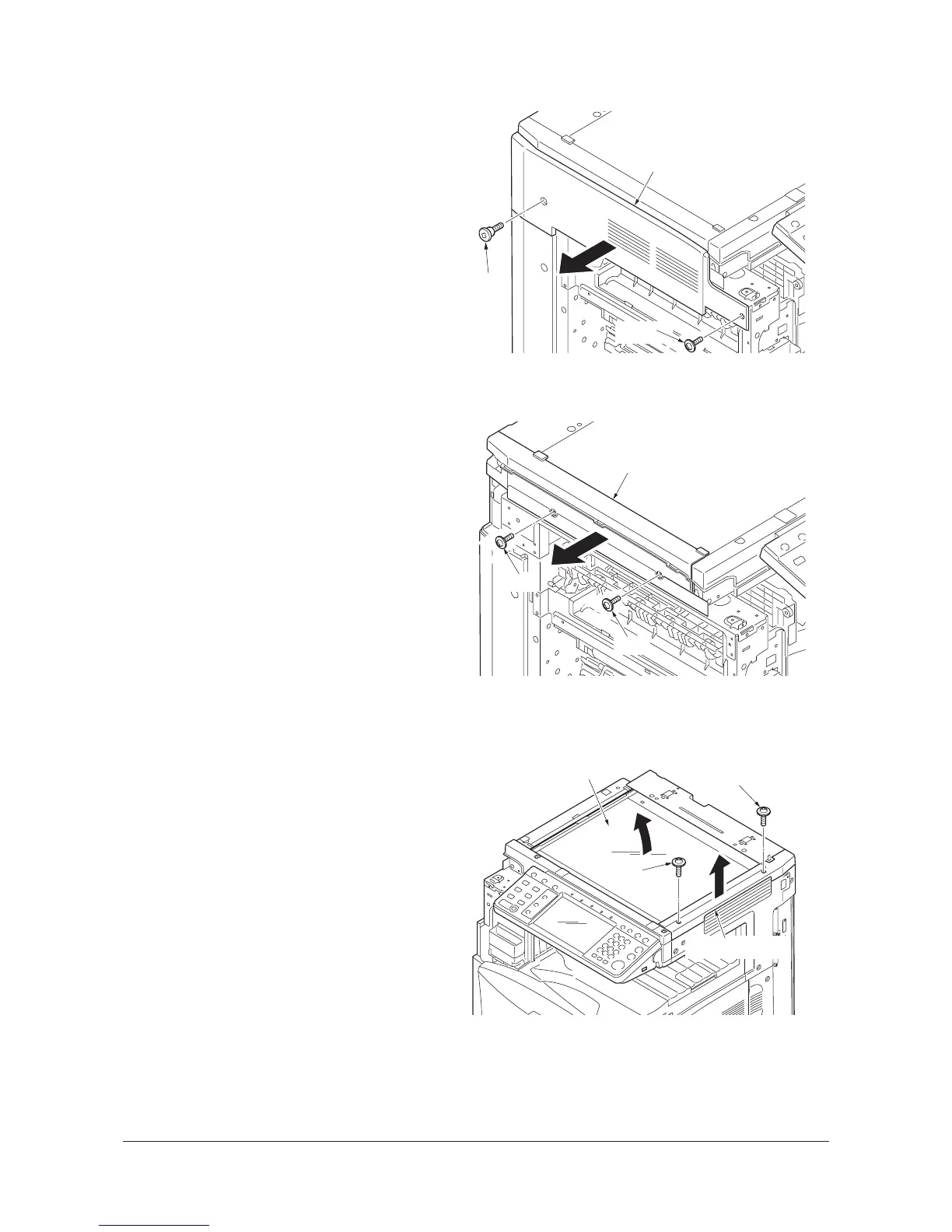

7. Remove the screw and pin.
8. Remove the left upper cover.
Figure 1-5-28
9. Remove two screws and then remove the
scanner left cover.
Figure 1-5-29
10. Remove two screws and then remove the
scanner right cover.
11. Remove the contact glass.
Figure 1-5-30
Pin
Left upper cover
Screw
Screw
Screw
Scanner left cover
B1
A2
D
P
O
P
T1
Contact glass
Scanner right cover
Screw
Screw
Y111960-2 Service Manual
