Olivetti d-Copia 5200MF User Manual

2KR/2KS
1-5-14

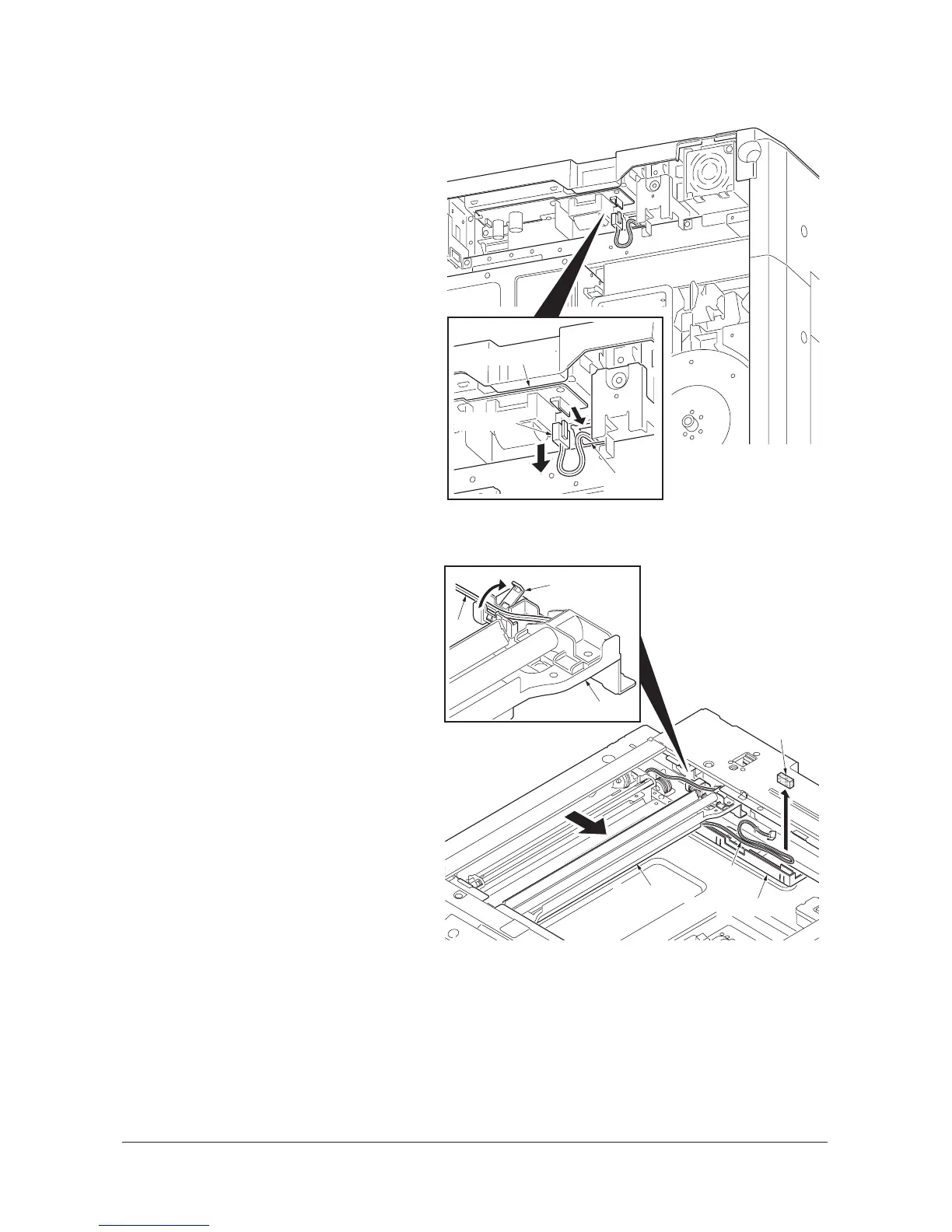

12. Remove the connector from the inverter
PWB.
13. Draw the connector into the machine inside
from opening.
Figure 1-5-31
14. Remove the sponge from the wire guide and
release the wire.
15. Move the mirror 1 frame to notch position.
16. Release the wire holder and then remove
the wire.
Figure 1-5-32
Connector
Opening
Inverter PWB
Wire holder
Wire
Mirror 1 frame
Mirror 1 frame
Wire
Sponge
Wire guide
Service Manual Y111960-2
