96
1

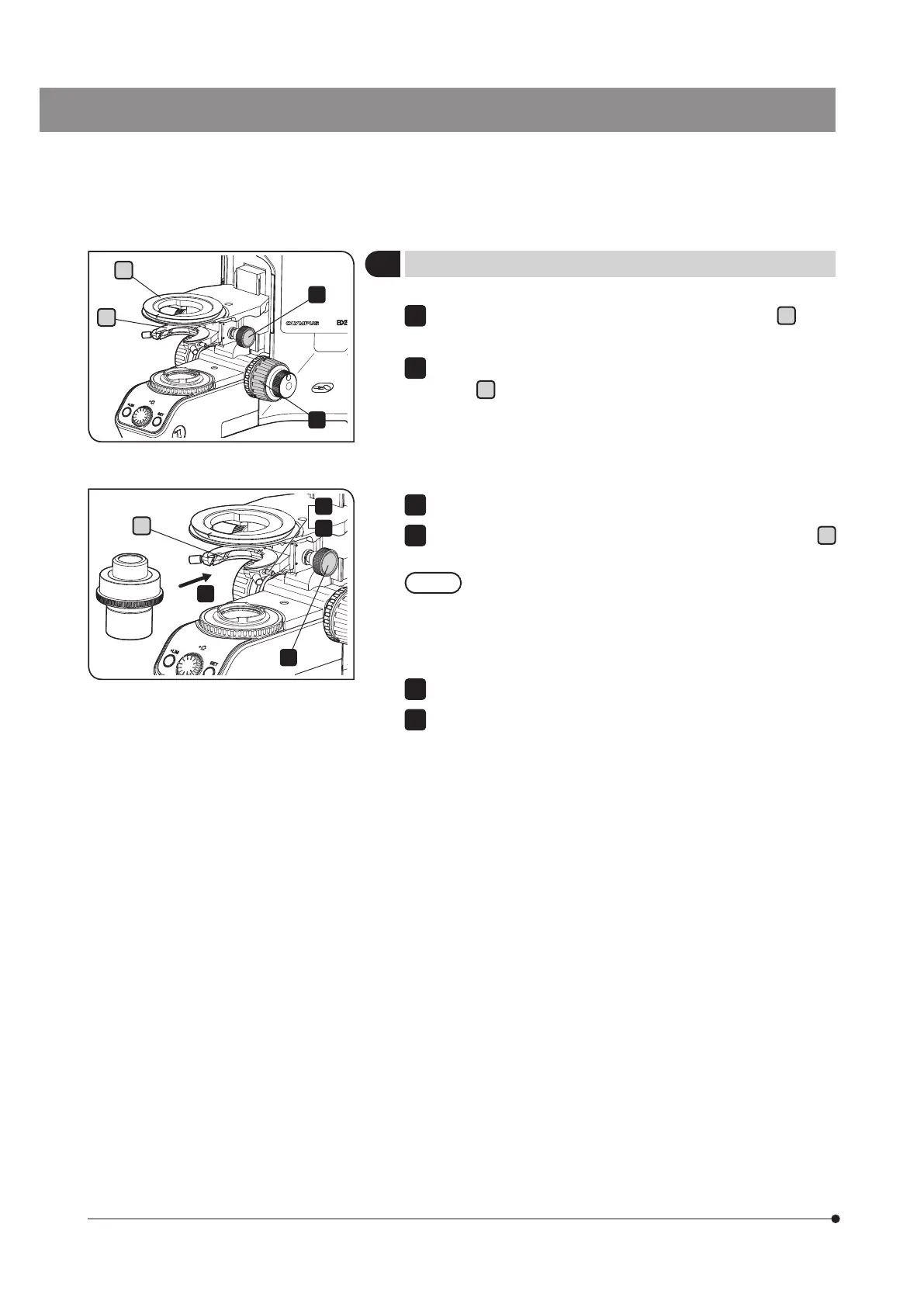

Attaching the condenser
Turn the coarse focusing knob to raise the stage holder
a
to the
upper limit.
Turn the condenser height adjustment knob to lower the condenser
holder
b
sufficiently.
1
2
a
b
b
1
6
4
2
3
5
Loosen the condenser clamping knob sufficiently.
Insert the condenser along the dovetail of the condenser holder
b
from the front side and push it until it touches the end.
· When using the condenser attached with positioning
pin on the back, attach it by pushing in the groove of the
condenser holder.
· Before attaching the condenser attached with swing-out
top lens, swing out the top lens.
Tighten the condenser clamping screw.
Turn the condenser height adjustment knob to raise the condenser
holder to the upper limit.
3
4
NOTE
5
6
