Olympus EPOCH 600 - Parameter Adjustment - Navigation Pad Configuration; Direct-Access Keys; Figure 2-4 Arrow Keys on the Navigation Pad

DMTA‐10007‐01EN[U8778365],Rev. B,June2010
30Chapter2
2.1.3 Parameter Adjustment – Navigation Pad Configuration
Onceaparameterisselected,youcanmodifyitusingthearrowkeysonthe
navigationpad(seeFigure 2‐4onpage 30).Youcanadjustmostparametersineither
coarseorfineincrements.Theupanddownarrowsadjustincoarseincrements,and
theleftandrightarrowsadjustinfine
increments.

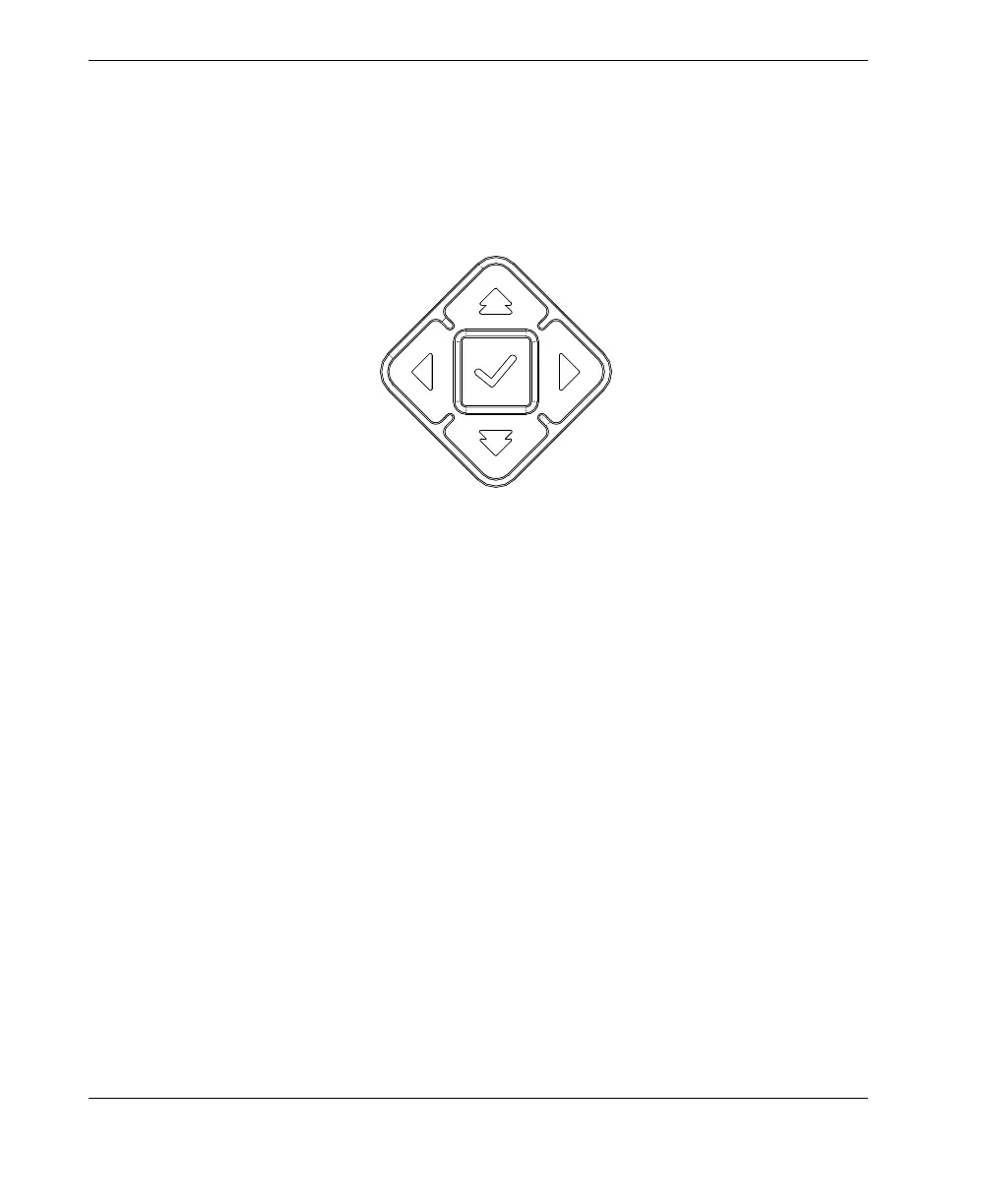

Figure 2‐4Arrowkeysonthenavigationpad
2.1.4 Direct-Access Keys
Tofacilitatefastadjustmentofcommonparameters,theEPOCH 600featuresasetof
direct‐accesskeys(seeFigure 2‐5onpage 31).Whenpressed,thesoftwareinterface
jumpsdirectlytotheassociatedparameteroractivatesthecorrectfunction.
