DMTA‐10007‐01EN[U8778365],Rev. B,June2010
40Chapter2

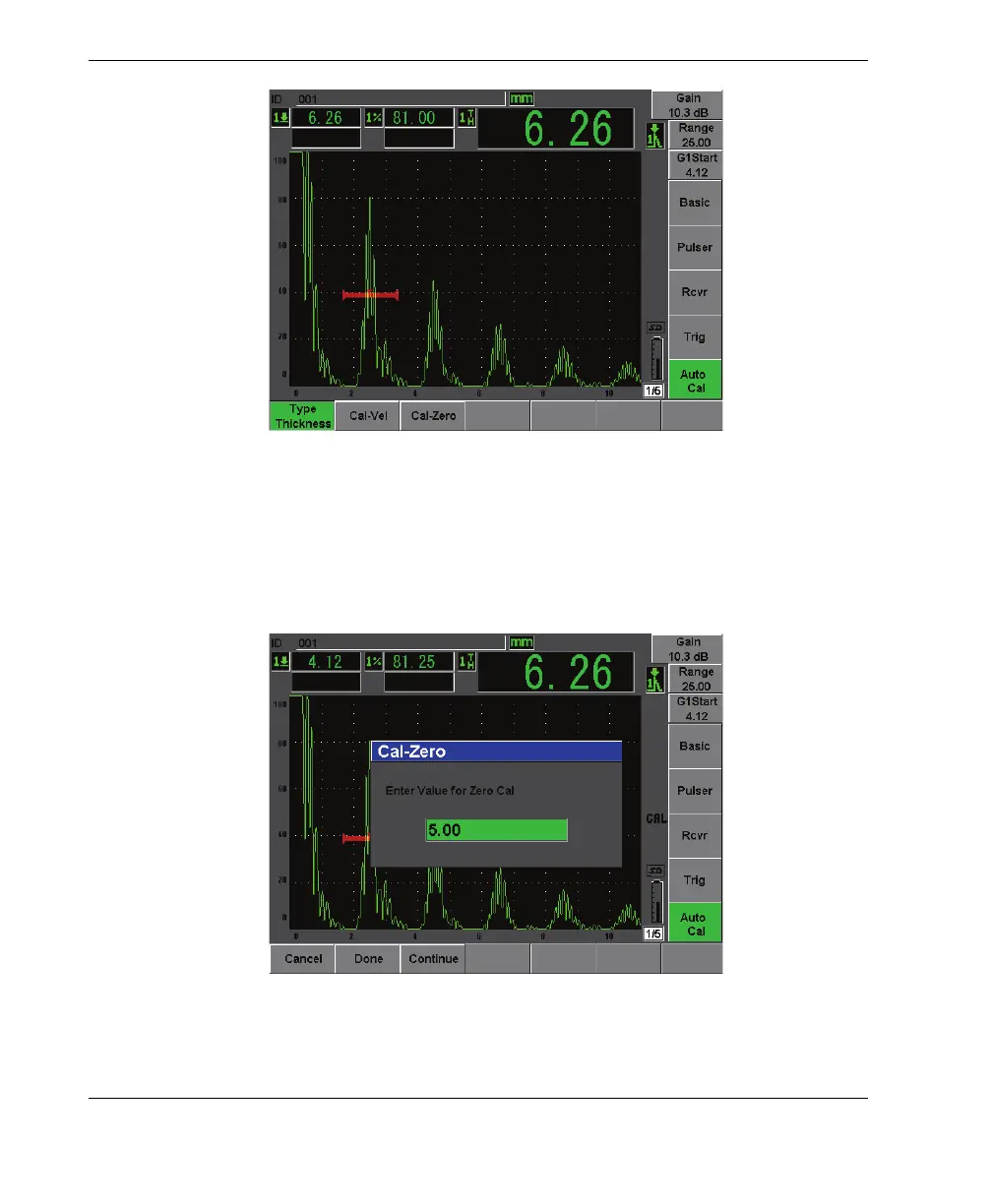

Figure 2‐13TheAutoCalmenu
5. UsetheModeparametertoselecttheappropriatecalibrationmode(Thickness
forstraightbeamorSoundpathforanglebeamarethemostcommon).
6. PressCal‐Zero(seeFigure 2‐14onpage 40).
Figure 2‐14TheCal‐Zerovalue
