Olympus EPOCH 600 - Figure 2-16 the Velocity Cal Value; Figure 2-17 the Range Value

DMTA‐10007‐01EN[U8778365],Rev. B,June2010
42Chapter2

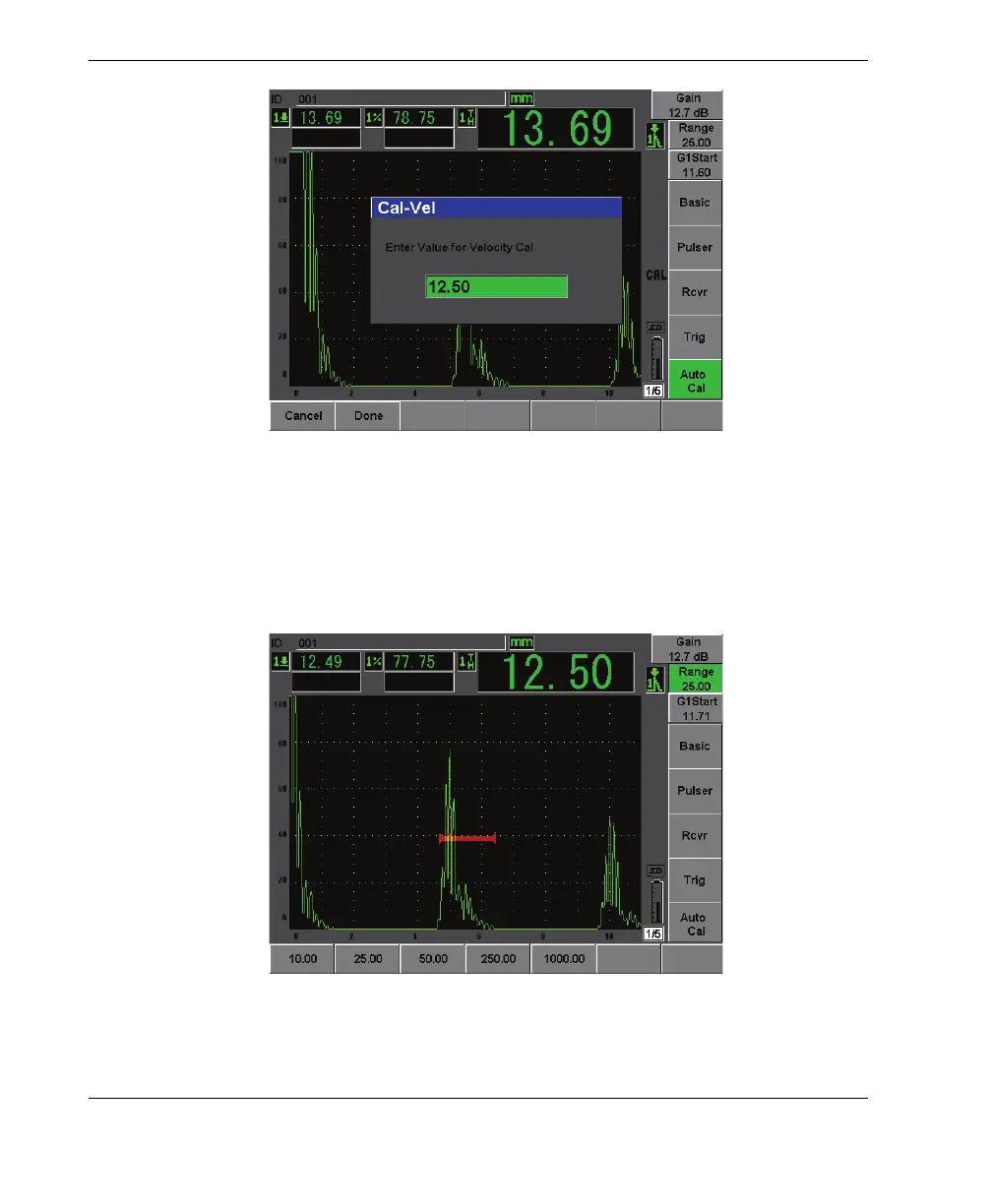

Figure 2‐16TheVelo ci tyCalvalue
15. PressDonetoaccepttheadjustedvalueandcompletethecalibrationprocess.
16. Press[RANGE],andthenadjustthescreenrangetothedes iredsetting(see
Figure 2‐17onpage 42).
Figure 2‐17TheRangevalue
