DMTA‐10007‐01EN[U8778365],Rev. B,June2010
44Chapter2
activedigitalmeasurements,compressedA‐scans,calibrationdata,alarmconditions,
andactivesoftwarefeatures.Theonboardmemoryisstoredona2‐GBMicroSDcard,
allowingstorageofover500,000 individualdatapoints.
Thesectionbelowoutlinestheprocedureforsetupandstorageofthemostbasicand
commonfiletype,the
calibrationfile.Forfulldetailsandproceduresonstandardand
optionalfiletypes,seetheEPOCH600User’sManual(P/N:DMTA‐10006‐01EN).
2.5.1 Calibration Files
TosetupandsaveacalibrationfileontheEPOCH 600,firstcompleteallultrasonic
andsoftwaresetupsthatwillbesavedwithinthecalibration.
To complete all ultrasonic and software setups
1. SelecttheFilemenu.
2. PresstheCreatekeytoenterthefilecreationscreen.
TheCreatescreenappears(seeFigure 2‐19onpage 44).
3. IntheFileTypebox,usethe knoborarrowkeystoselectCal.
4. Usethe[NEXTGROUP]keytoadvancetotheFilenamebox.
5. IntheFilenamebox,create
afilename(cannotexceed32 characters)bypressing
theEditparameterkey.

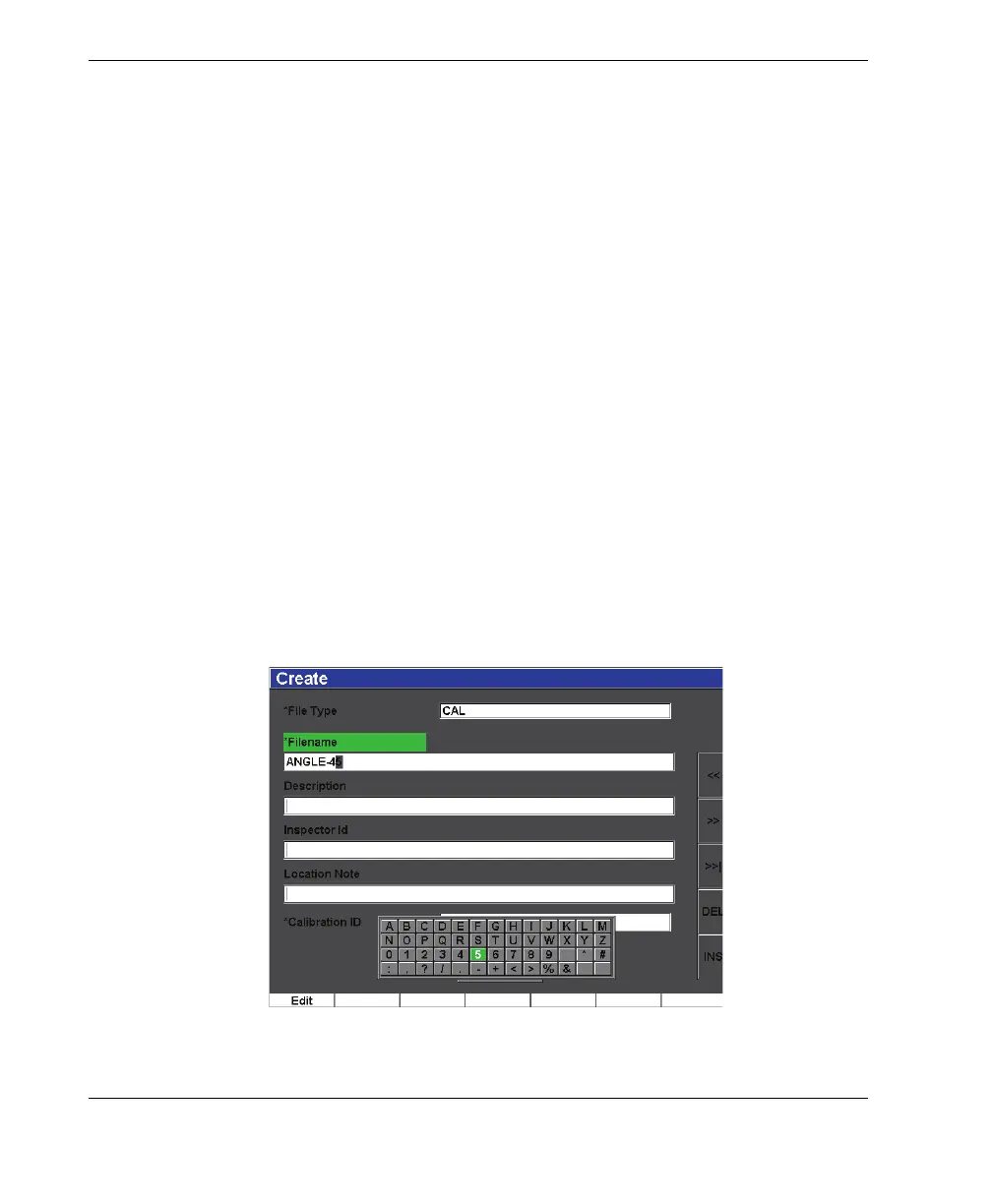

Figure 2‐19TheCreatescreen
