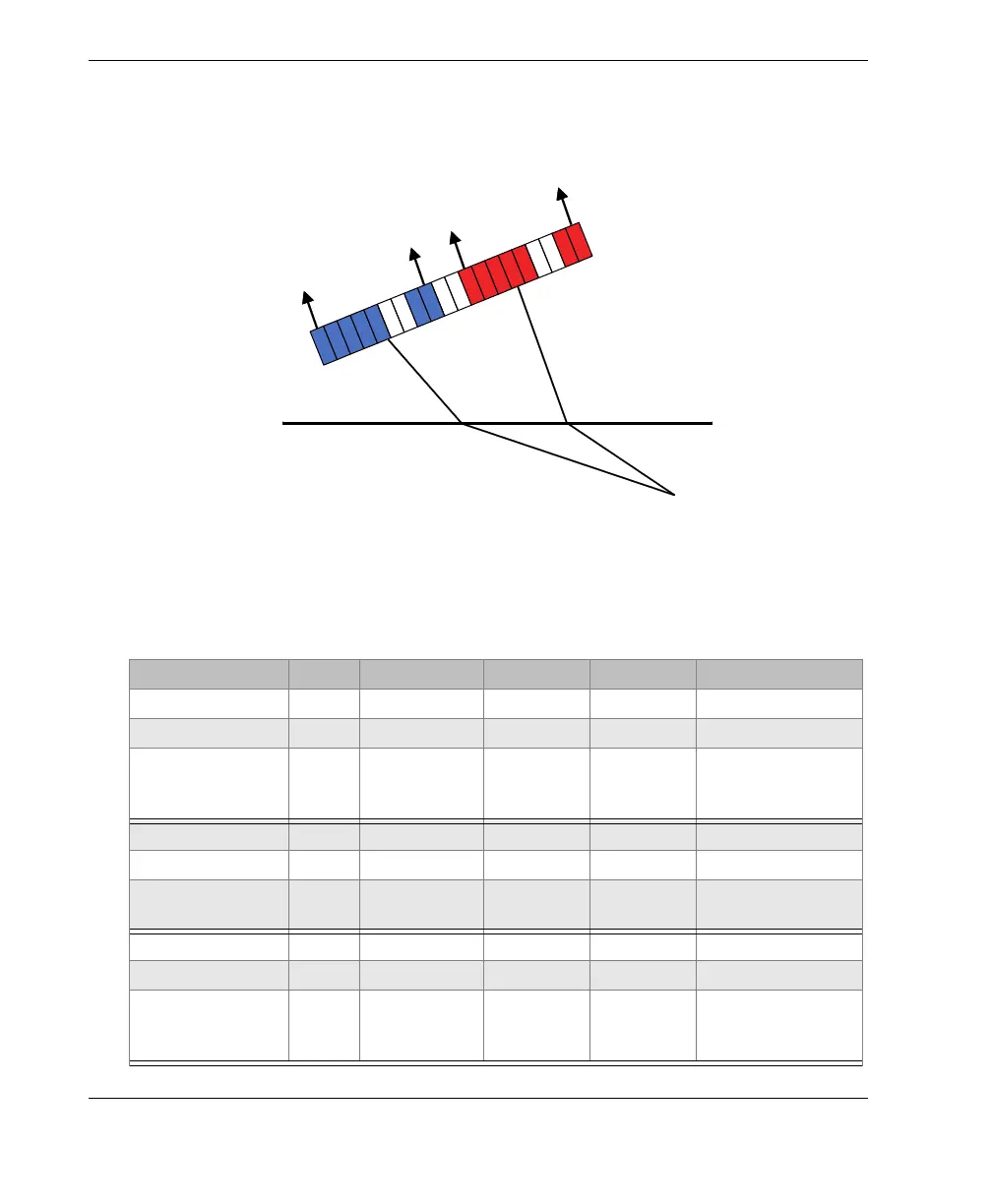

Figure 5-1 Illustration of pitch-and-catch inspection
Table 6 TomoScan FOCUS LT hardware limitations
Model Mode Limit 1 Limit 2 Limit 3
FLT16128-P-O
K ≥ 1 K = L Pulse-echo N ≤ 15 M ≤ 15
K ≥ 1K ≠ LPitch-and-
catch
N ≤ 7M ≤ 7 Limit 4
K + (L + M) ≤ 16
(n = 1, 2, 3, 4, 5, 6, 7)
FLT16128-R-O
K ≥ 1 K = L Pulse-echo N ≤ 15 M ≤ 15
K ≥ 1 K ≠ L Pitch-and-
catch
N ≤ 15 M ≤ 15
FLT32128-P-O
K ≥ 1 K = L Pulse-echo N ≤ 31 M ≤ 31
K ≥ 1K ≠ LPitch-and-
catch
N ≤ 15 M ≤ 15 Limit 4
K + (L + M) ≤ 32
(n = 1, 2, 3)
K
K + N
L
L + M
Blue elements (K to K + N) are used for emission
Red elements (L to L + M) are used for reception
