DMTA041-01EN [U8778479], Rev. C, May 2014
Chapter 1
16

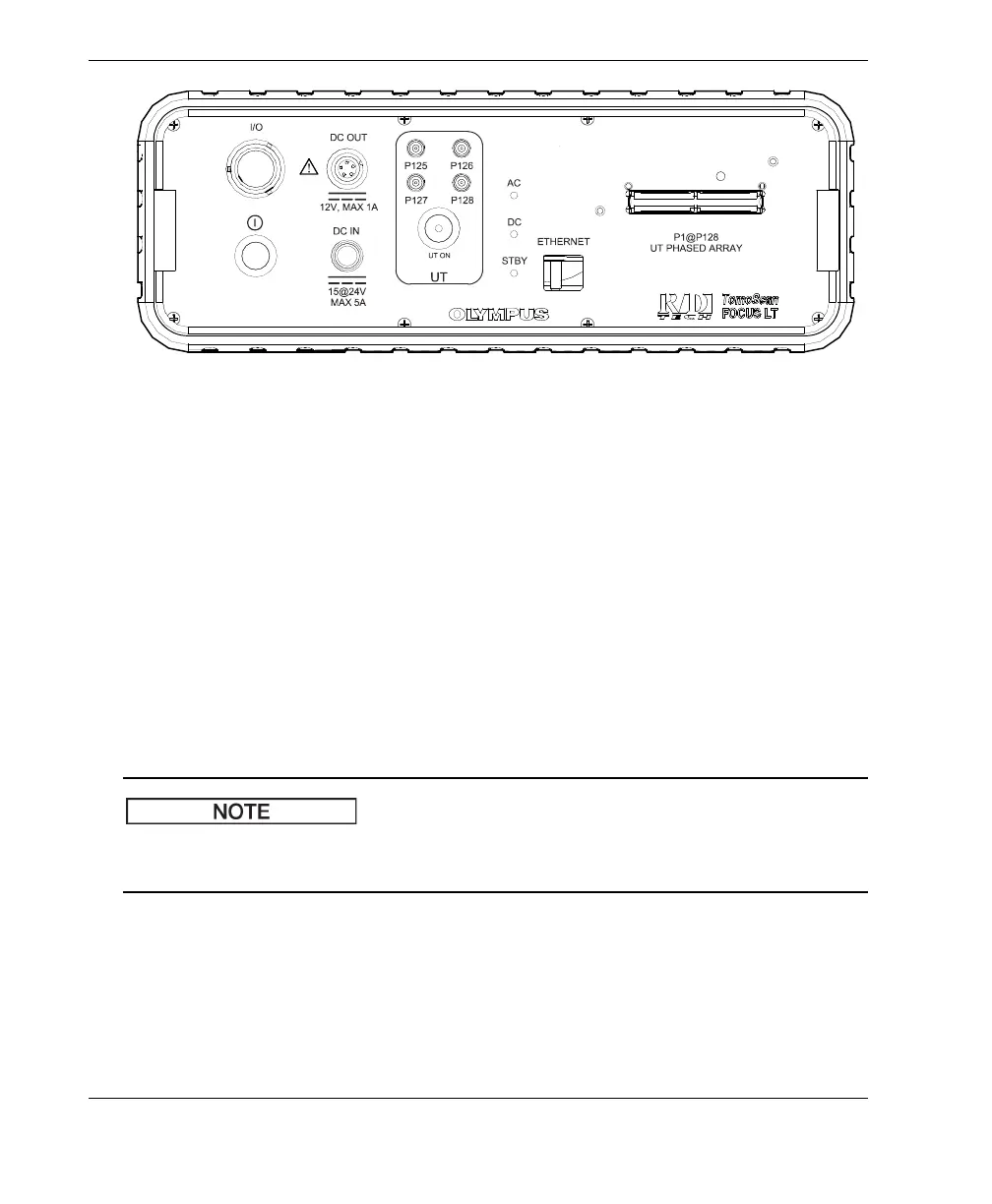

Figure 1-1 The TomoScan FOCUS LT front panel
The front panel of the TomoScan FOCUS LT contains the following elements:
I/O
This connector is used to connect digital input/output signals.
DC OUT
This connector provides a power supply voltage of ±12 VDC rated at 1 A for
external devices.
DC IN
This connector allows the TomoScan FOCUS LT to be supplied from a DC power
source. The
DC IN connector accepts voltages in the range of 15 VDC to 24 VDC,
rated at 5 A.
The external DC power supply must be able to withstand up to 10 A of “in rush
current” for a few microseconds.
UT ON
This button alternately enables and disables the P connectors.
When this indicator light is on, it indicates that the conventional ultrasound mode
is enabled and that the last four phased array channels are routed onto the
P125,
P126, P127, and P128 connectors.
