DMTA041-01EN [U8778479], Rev. C, May 2014

Chapter 6

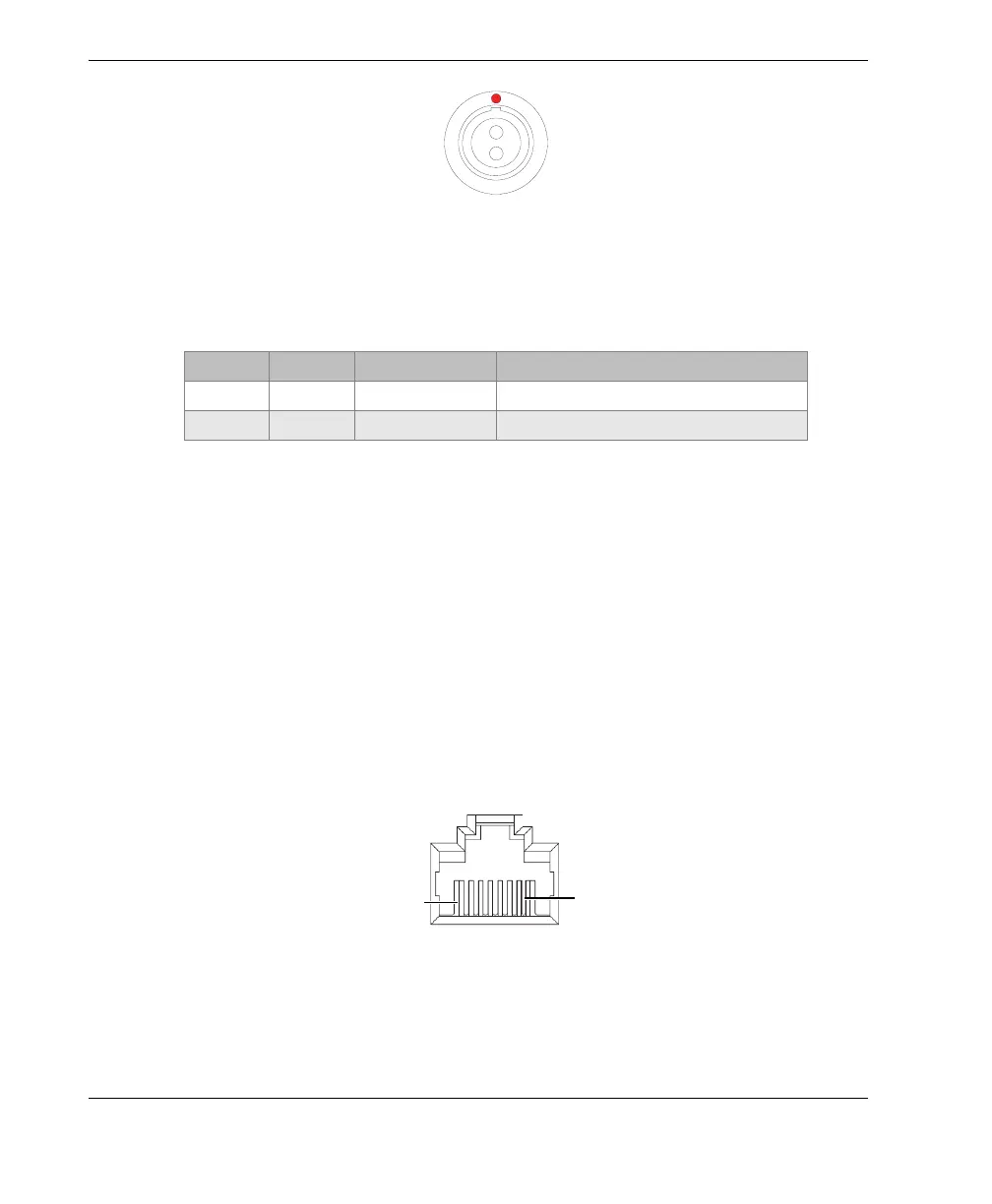

Figure 6-4 The

DC IN connector

6.4 ETHERNET Connector

Description

8-position modular, female connector

Manufacturer; number

Stewart Connector; SS-650810SAFLS

Olympus; 21AI0080

Suggested cable connector; number

Stewart Connector; 940SP-360808

Olympus; 21AI0079

Figure 6-5 The

ETHERNET connector

Table 15 Pinout for the

DC IN connector

Pin I/O Signal Description

1 Input +15 V to +24 V 15 VDC to 24 VDC input, rated at 5 A.

2 — GND Ground

Pin 1

Pin 8
