153
Appendix
Figure 12-12 shows a diverter switch of a 40 MVA transformer for 110 kV. The
switches shown are positioned near the star-point of the transformer's high-
voltage windings.

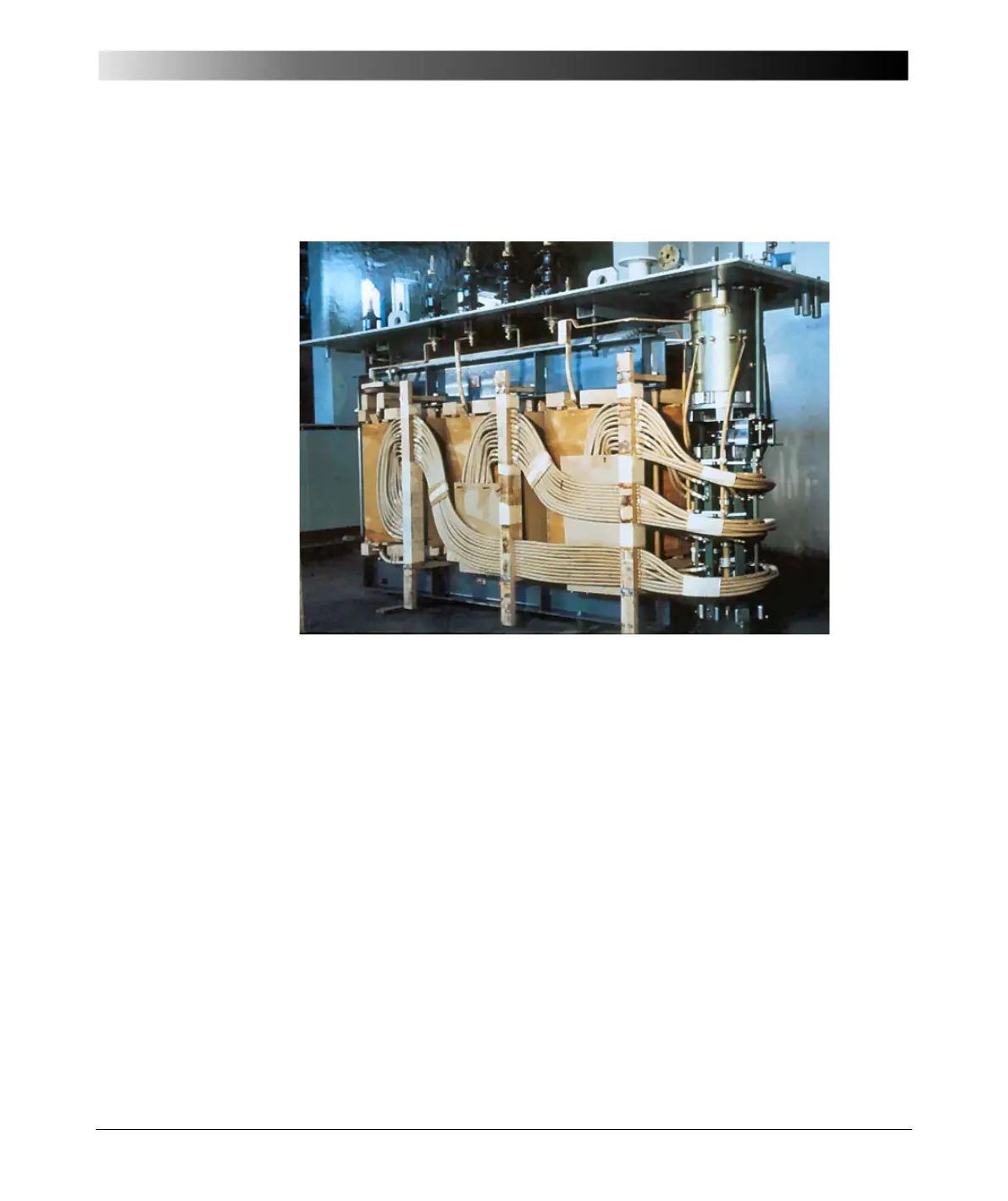

Figure 12-11 Transformer with tap changer
