CP TD1 Reference Manual V 1.44
164

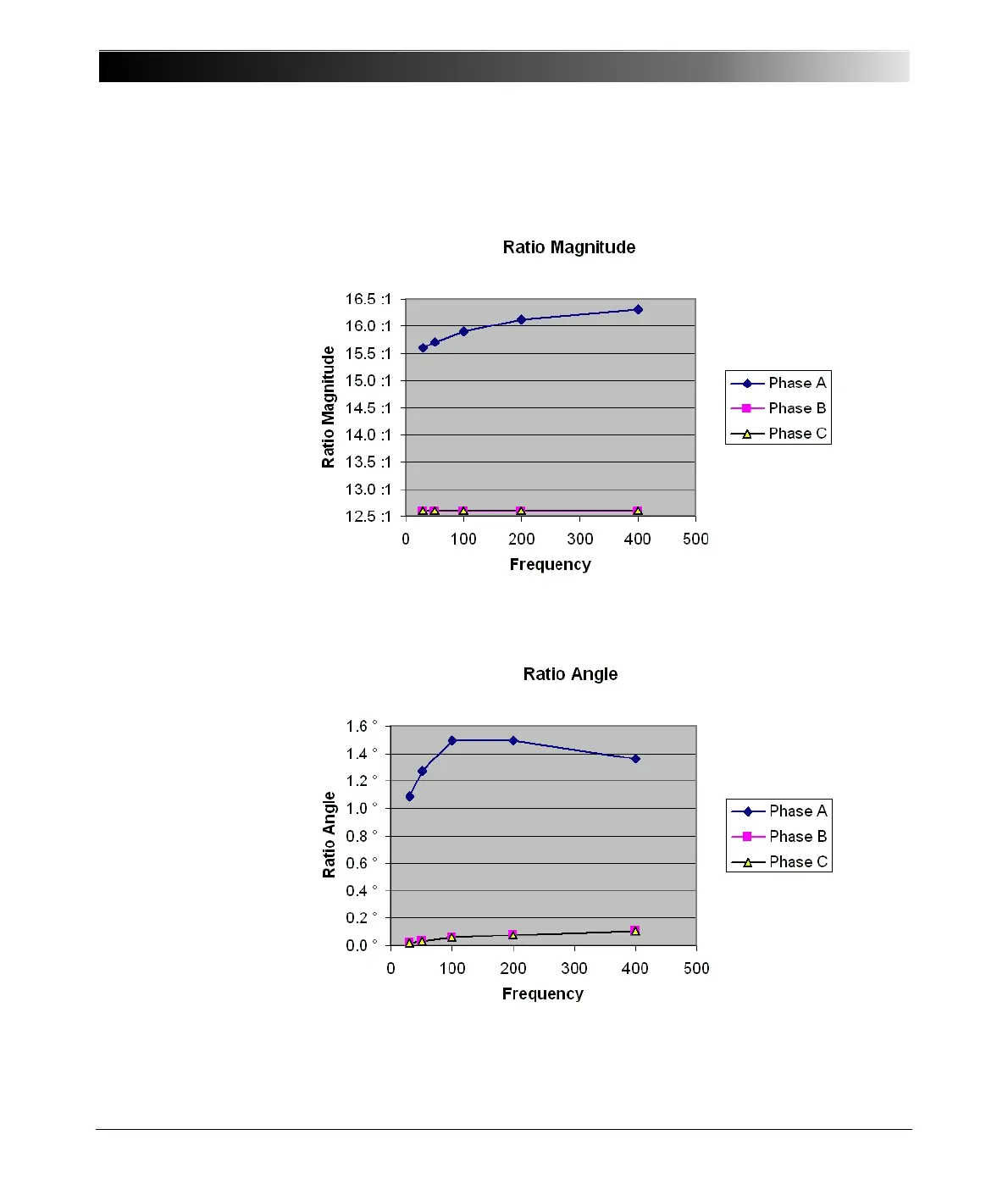

In the Figures 12-21 and 12-22, an analysis of a transformer with shorted turns
in the low-voltage winding (Phase A) is shown.
Figure 12-21 Ratio magnitude = f(f)
Figure 12-22 Ratio phase angle = f(f)
