Omron 3G3MX2 - Current Position Monitor [D030]; Life Assessment Monitor [D022]; Position Command Monitor [D029]

5-9
5-1 Monitor Mode
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-A@@@@)
5
Functions

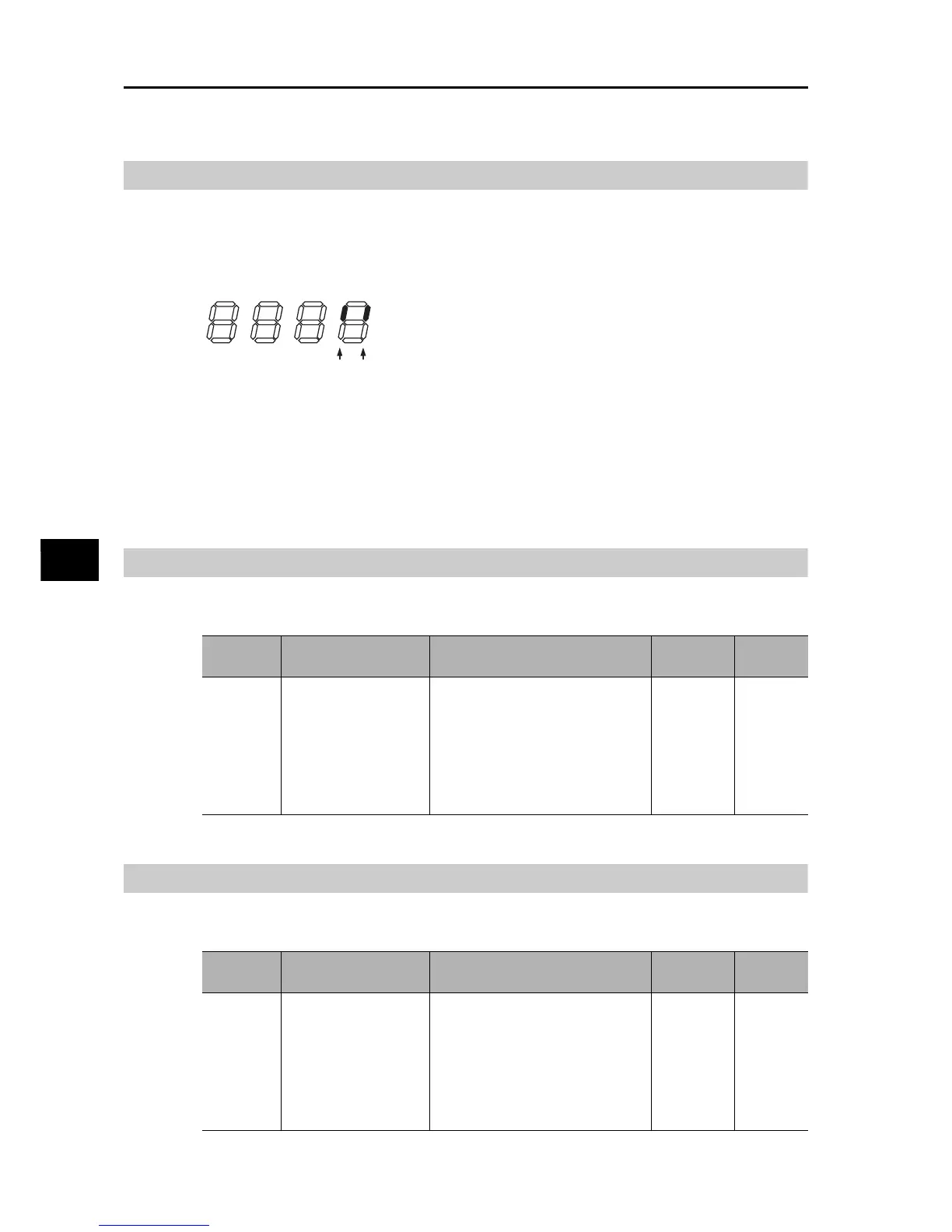

Life Assessment Monitor [d022]
The LED lighting position indicates the status of life assessment signal.
The following two items can be monitored:
1: Main circuit board capacitor service life
2: Cooling fan life
 The capacitor service life is calculated every 10 minutes. If the Inverter is turned on/off frequently
within this interval, the capacitor service life cannot be correctly diagnosed.
 The cooling fan life assessment function is not available for 1-phase 200V class motors of 0.4 kW
max. and 3-phase 200V class motors of 0.75 kW max., because these motors are not equipped
with a cooling fan.
Position Command Monitor [d029]
Position commands can be monitored during simple position control.
For details, refer to "Simple Position Control Function" on page 5-158.
Current Position Monitor [d030]
The current position can be monitored during simple position control.
For details, refer to "Simple Position Control Function" on page 5-158.
21
ON
OFF
Parameter
No.
Function name Data
Default
setting
Unit
d029
Position Command
Monitor
− 268 ( − 268435455) to 2684 (268435455)
Displays MSB 4 digits for forward
command. Displays ( − ) and MSB 3 digits
for reverse command.
(Example) Command value 15600
→
Displays as 1560
Command value
− 15600 →
Displays as − 156
−−
Parameter
No.
Function name Data
Default
setting
Unit
d030
Current Position
Monitor
− 268 ( − 268435455) to 2684 (268435455)
Displays MSB 4 digits for forward
position. Displays (
− ) and MSB 3 digits
for reverse position.
(Example) Current position 1560000
→
Displays as 1560
Current position − 1560000 →
Displays as
− 156
−−
