5-11
5-1 Monitor Mode
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-A@@@@)
5
Functions
Fault Counter [d080]
Displays the number of times the Inverter has tripped.
This number is saved in the EEPROM when the power is turned off.

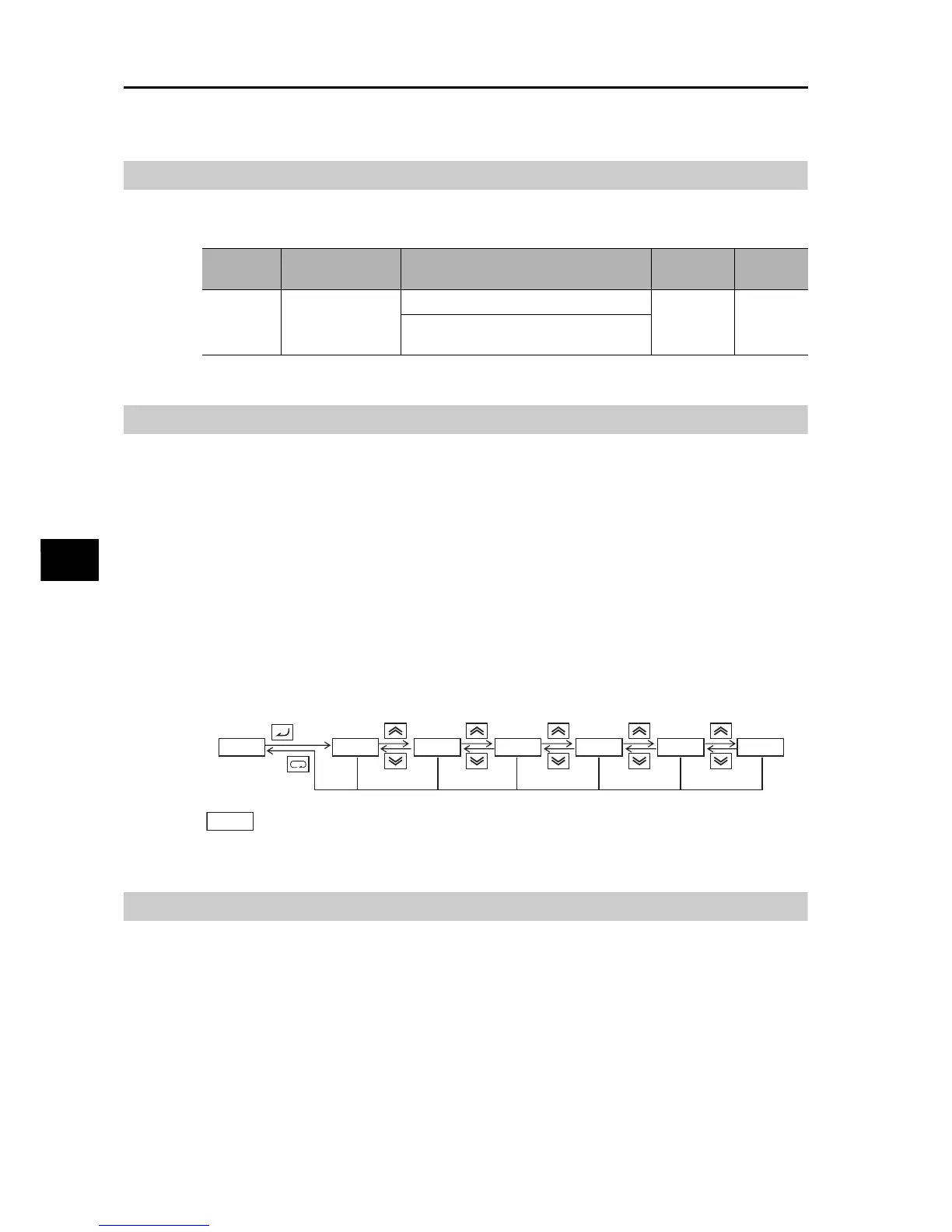

Fault Monitors 1 to 6 [d081 to 086]
Displays the records of the last 6 errors. Error records are saved in the EEPROM when the
power is turned off.
The record of the latest error is displayed under Fault Monitor 1 (d081).
(Display)
(1) Cause of trip (One of E01 to E83 is displayed.)
Refer to "Inverter Fault Factor List" on page 6-35.
(2) Output frequency [Hz] at the time of tripping
(3) Output current [A] at the time of tripping
If the Inverter is currently stopped (E**.1), the monitor value may become zero.
(4) P-N DC voltage [V] in the main circuit at the time of tripping
If tripping occurs due to ground fault at power-on, the monitor value may become zero.
(5) Total Inverter RUN time [h] before the trip
(6) Total Inverter power ON time [h] before the trip
Warning Monitor [d090]
If the set data is inconsistent with other data, a warning is displayed.
While a warning is present, the Program LED (PRG) indicator remains lit until the data is
corrected.
For details on the Warning display, refer to "Warning Display" on page 7-7.
Parameter
No.
Function name Data
Default
setting
Unit
d080 Fault Counter
0. to 9999.
− Time
1,000 to 6,553 (Displayed in increments
of 10.)
(1) Trip factor
(2) Frequency (3) Current
(4) DC voltage
(5) Total
RUN time
(6) Total
ON time
is shown if no trip has occurred.
dk0k8k1 ek0k7.2
6k0.0k0
4.0k0 4k0k0.2 1k5.
1k8.
_k_k_k_
