Omron 3G3MX2 - Inverter Mode Selection

5-178
5-14 Other Functions
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-A@@@@)
5
Functions
Inverter Mode Selection
Changing the setting of Inverter Mode Selection alone does not change the mode. After
changing this setting, perform an initialization/Mode Selection Command (b180). When the
Inverter mode is changed, the fault monitor data is cleared and the parameters are initialized.
The current Inverter mode can be monitored using d060.
Although the maximum output frequency of the 3G3MX2 is 400 Hz, switching to the high-
frequency mode permits output of up to 1,000 Hz. Since the high-frequency mode is supported
only in the heavy load rating setting, set the high-frequency mode after selecting Heavy Load
Rating (b049 = 00). (The rating type cannot be changed to light load when the high-frequency
mode is selected.)
To perform initialization or clear the fault monitor data while in the high-frequency mode, set
appropriate values in b084 and b094 and then perform initialization via b180 according to the
normal initialization procedure. It is not necessary to set a value in b171.
 Sensorless vector control operation cannot be performed in the high-frequency mode.

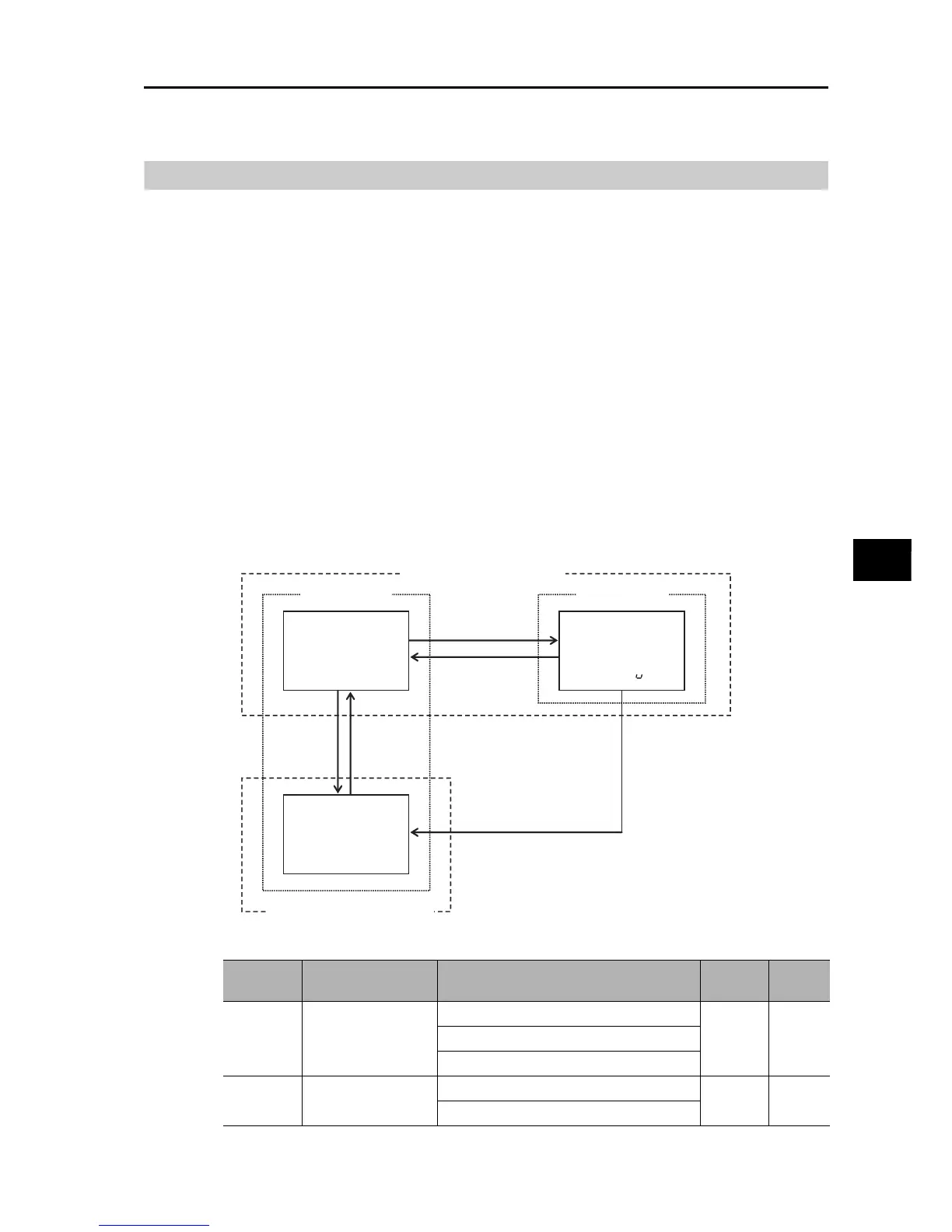

Switching between Normal Mode (Heavy Load Rating or Light Load Rating)
and High-frequency Mode
Heavy load mode
b049: 00
d060: 1-c
Light load mode
b049: 01
d060: 1-
High-frequency mode
d060: h-1
Normal mode (to 400 Hz)
Heavy load rating
High-frequency mode (to 1,000 Hz)
b171 = 01
+
Initialization
b049 = 01
b049 = 00
b171 = 02
+
Initialization
b171 = 02
+
Initialization
Light load rating
Parameter
No.
Function name Data
Default
setting
Unit
b171
Inverter Mode
Selection
00: Selection disabled
00 −01: Induction motor
02: Induction motor (high-frequency mode)
b180
Perform Initialization/
Mode Selection
00: Initialization disabled
00 −
01: Perform initialization/mode selection
