5-69
5-6 Operation Functions
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-A@@@@)
5
Functions

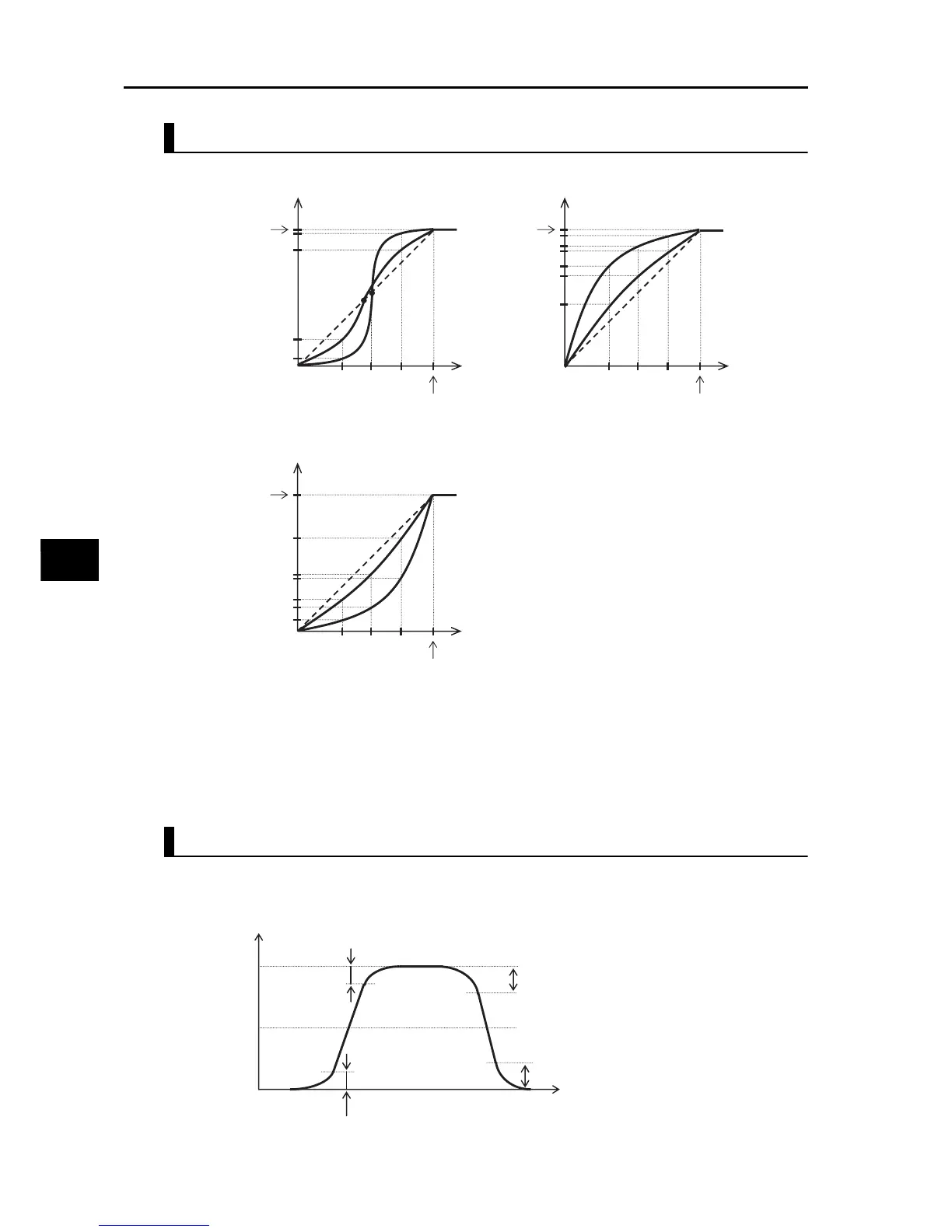

Pattern Curve Parameter (Curve Factor)
Determine a curve factor with reference to the figures below.
The S shape has an intermediate section where acceleration/deceleration time is shortened.
If "46: LAC (LAD cancel)" is selected for a multi-function input and the input is turned ON, the
acceleration/deceleration pattern is ignored and the output frequency instantaneously follows
to the reference frequency.
EL-S shape Ratio
When the EL-S shape is used, various Curve Ratios (A150 to A153) can be set for
acceleration/deceleration.
If all settings are "50 [%]", the Inverter operates in the same manner as with the S shape.
Output frequency (Hz)
Target frequency
(100 %)
Time
Acceleration time until
reaching to the set value of
output frequency (100 %)
96.9
82.4
17.6
3.1
25 50 75
02
10
10 02
Output frequency (Hz)
Target frequency
(100 %)
Time
Acceleration time until
reaching to the set value of
output frequency (100 %)
25 50 75
99.6
93.8
87.5
68.4
64.6
35
10
02
Output frequency (Hz)
Target frequency
(100 %)
Time
Acceleration time until
reaching to the set value of
output frequency (100 %)
25 50 75
65
35.4
31.6
12.5
6.25
0.39
02
10
Output frequency ratio (%)
EL-S Shape
Acceleration
Curve Ratio 2
(A151)
EL-S Shape Deceleration
Curve Ratio 1
(A152)
Time (s)
EL-S Shape Acceleration
Curve Ratio 1 (A150)
EL-S Shape Deceleration
Ratio 2 (A153)
100
50
