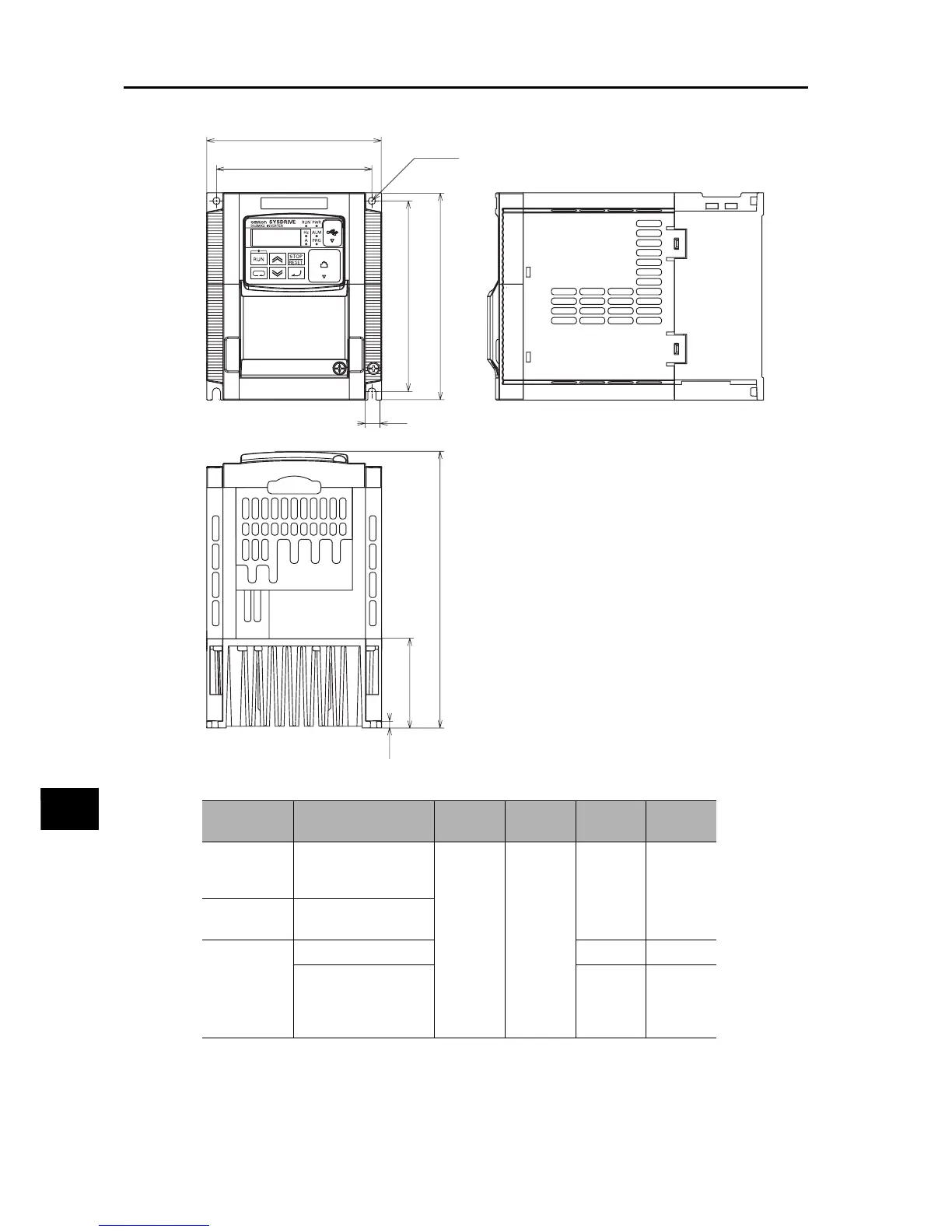

9-2 External Dimensions
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-A@@@@)
9
Specifications
8.8.8.8.
108
96
128
118
5
D
D1
4.4
2-φ4.5
Power
supply
Model W [mm] H [mm] D [mm] D1 [mm]
1-phase
200 V
3G3MX2-AB007
3G3MX2-AB015
3G3MX2-AB022
108 128
170.5 55
3-phase
200 V
3G3MX2-A2015
3G3MX2-A2022
3-phase
400 V
3G3MX2-A4004 143.5 28
3G3MX2-A4007
3G3MX2-A4015
3G3MX2-A4022
3G3MX2-A4030
170.5 55
