2-20
2-2 Wiring
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-A@@@@)
2
Design

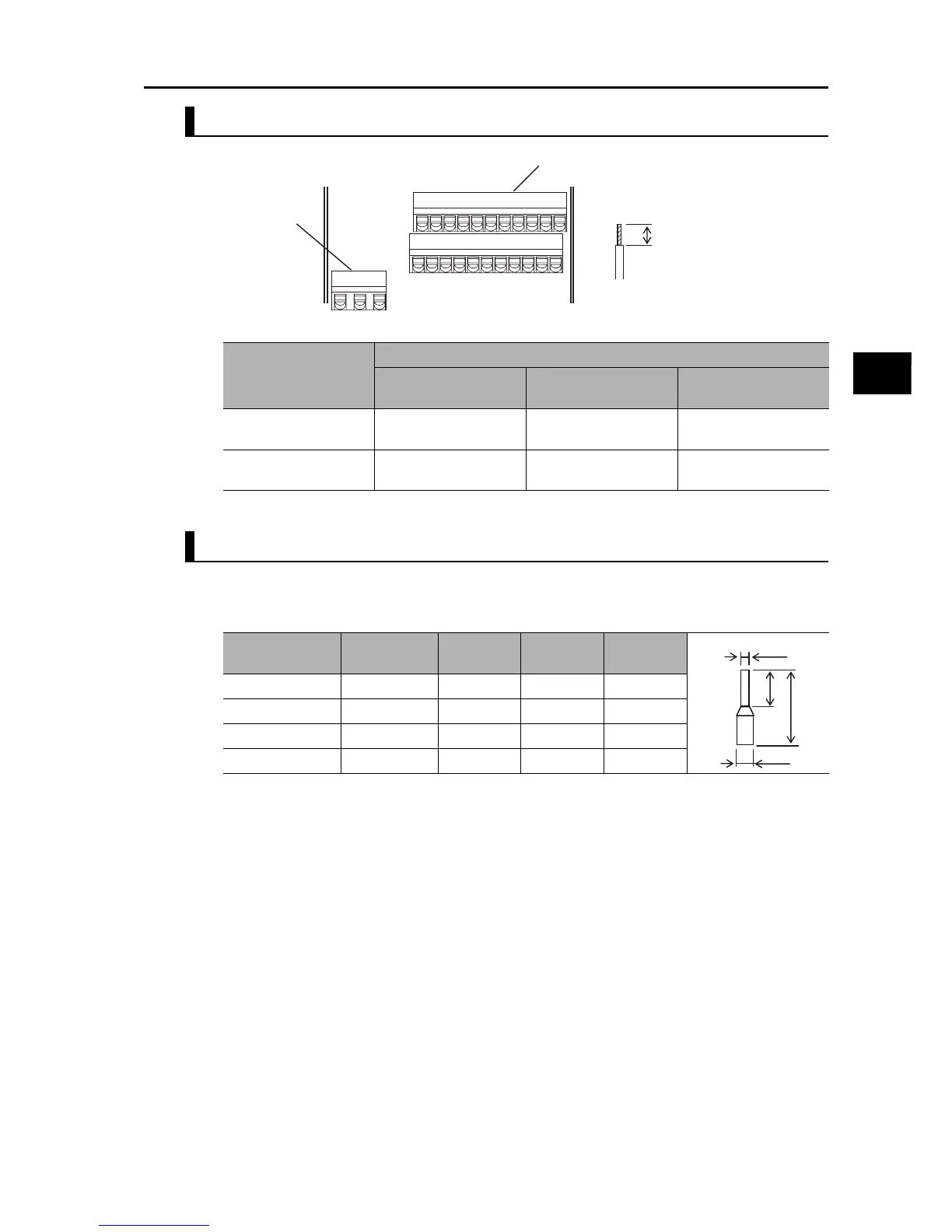

Wire Sizes for Control Circuit Terminal Block and Relay Output Terminal Block
Recommended Terminal
To improve the ease of wiring and reliability of connection, use of ferrules of the following
specifications is recommended for signal wires:
* Manufacturer: Phoenix Contact
Crimp tool CRIPMFOX UD 6-4 or CRIMPFOX ZA 3
Relay output
terminal block
Control circuit terminal block
8 mm
Stripping length for
single/stranded wires:
Approx. 8 mm
Applicable wire
Single wire mm
2
(AWG)
Stranded wire mm
2
(AWG)
Ferrules mm
2
(AWG)
Control Circuit Terminal
Block
0.2 to 1.5
(AWG 24 to 16)
0.2 to 1.0
(AWG 24 to 17)
0.25 to 0.75
(AWG 24 to 18)
Relay output terminal
block
0.2 to 1.5
(AWG 24 to 16)
0.2 to 1.0
(AWG 24 to 17)
0.25 to 0.75
(AWG 24 to 18)
Wire size
mm
2
(AWG)
Ferrules
type*
L [mm] φd [mm] φD [mm]
0.25 (24) AI 0.25-8YE 12.5 0.8 2.0
0.34 (22) AI 0.34-8TQ 12.5 0.8 2.0
0.5 (20) AI 0.5-8WH 14 1.1 2.5
0.75 (18) AI 0.75-8GY 14 1.3 2.8
8
L
φ
d
φ
D
