Omron CK3W-GC 00 Series User Manual

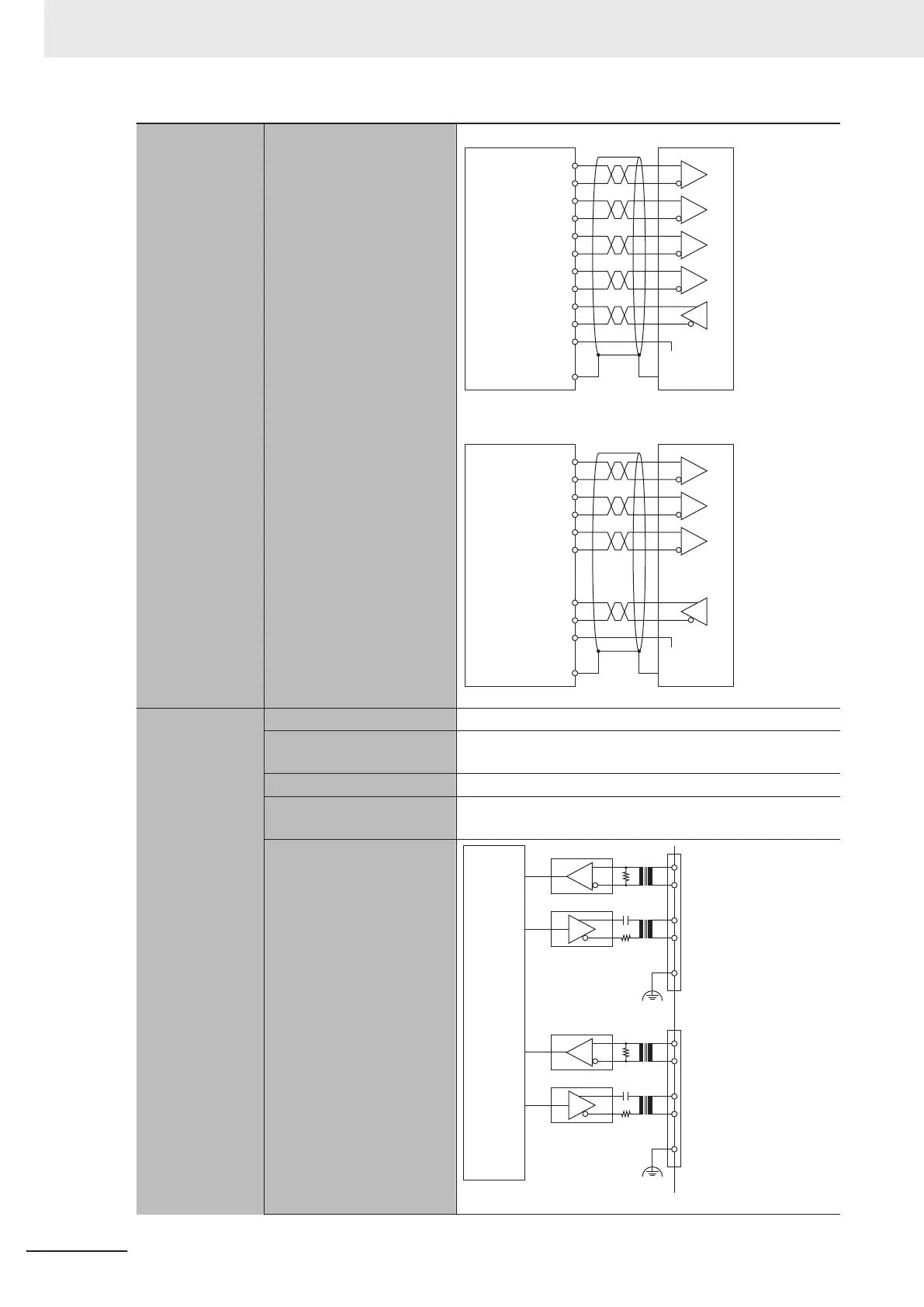

Terminal connection dia-
gram
Galvo Scanner
GND
GND
+
-
-
-
-
-
+
+
+
+
XY-CLOCK+
XY-CLOCK-
XY-SYNC+
XY-SYNC-
CHX+
CHX-
CHY+
CHY-
XY-STATUS+
XY-STATUS-
Connector shell
Galvo Scanner
GND
GND
+
-
-
-
-
+
+
+
Z-CLOCK+
Z-CLOCK-
Z-SYNC+
Z-SYNC-
CHZ+
CHZ-
Z-STATUS+
Z-STATUS-
Connector shell
SL2-100 Inter-
face
Data length 20 bits
Maximum transmission
distance
25 m
Cable impedance 110 Ω
Isolation method Isolation by pulse transformer (between internal circuit and
SL2-100 circuit)
Circuit configuration
Internal
circuit
XY-IN+
XY-IN-
XY-OUT+
XY-OUT-
FG
Connector shell
Z-IN+
Z-IN-
Z-OUT+
Z-OUT-
Connector shell
FG
3 Configuration Units
3-68
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
