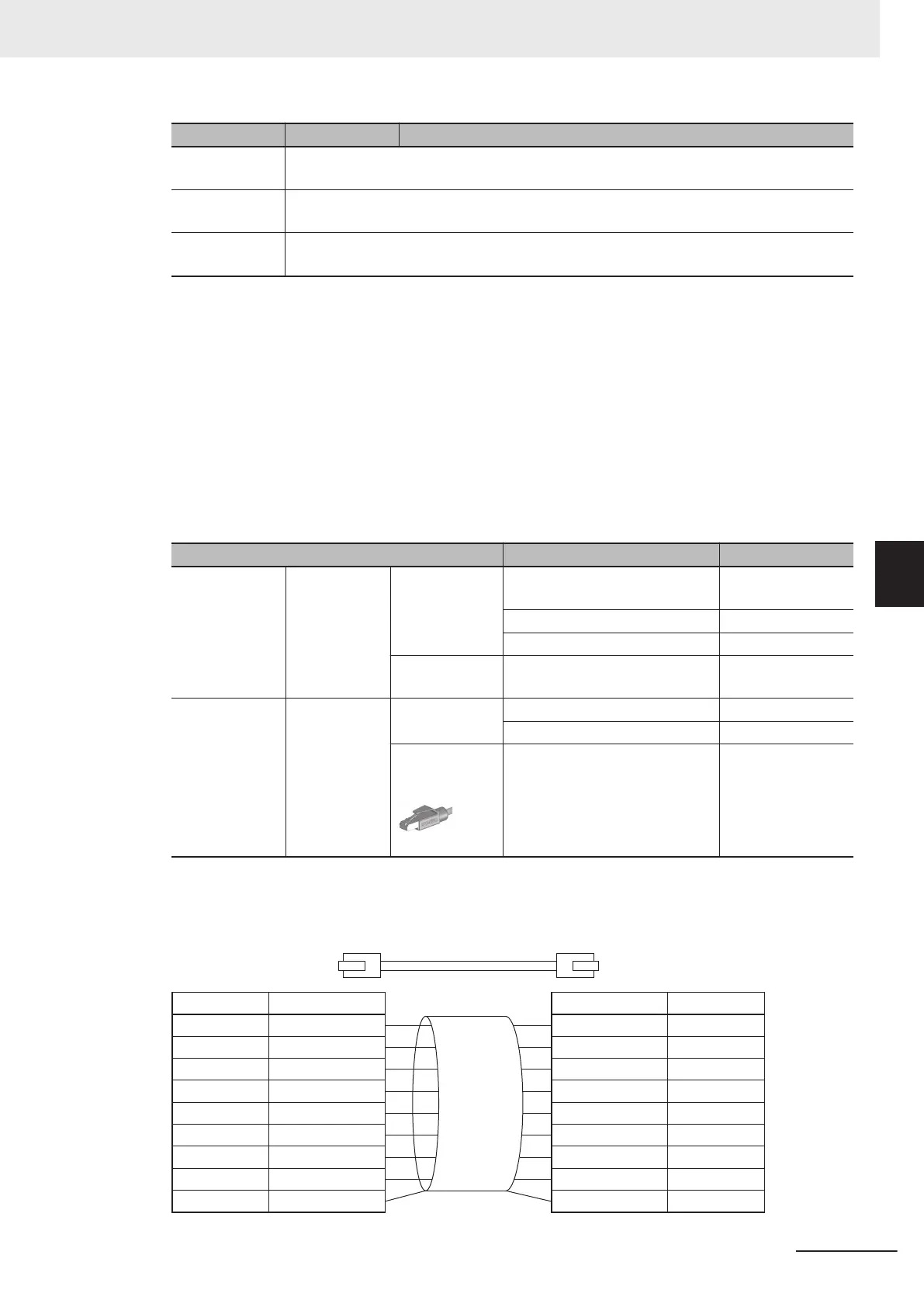

Twisted-pair Cables and Connectors
Applicable EtherNet/IP communications cables and connectors vary depending on the used baud
rate.
For 100Base-TX and 10Base-T, use an STP (shielded twisted-pair) cable of category 5 or higher.
Y
ou can use either straight or cross cable.
For 1000Base-T, use an STP (shielded twisted-pair) cable (double shielding with aluminum tape
and braiding) of category 5e or higher. You can use either straight or cross cable.
Cabling materials used for EtherNet/IP communication cables are shown in the table below.
"100Base-TX" in the "Product" column of the table below indicates that either 100Base-TX or
10Base-T can be used.
Product Manufacturer Model
For 1000Base-T
and 100Base-
TX
Size and con-
ductor pairs:
AWG 24 × 4
pairs
*1
Cable Hitachi Metals, Ltd. NETST
AR-C5E
SAB 0.5 × 4P CP
Kuramo Electric Co. KETH-SB
JMACS Japan Co., Ltd. IETP-SB
RJ45 Connec-
tors
Panduit Corporation MPS588
For 100Base-
TX
Size and con-
ductor pairs:
A
WG22 ×
2P
*1
Cable Kuramo Electric Co., Ltd.
KETH-PSB-OMR
JMACS Japan Co., Ltd. PNET/B
RJ45 Assembly
Connectors
OMRON XS6G-T421-1
*1. We recommend that you use cables and connectors in above combinations.
Attaching the Connectors to the Cable and Pin Assignments
Use straight wiring to attach the connectors to the communications cable, as shown below.
Pin No.
1
2
3
4
5
6
7
8
Hood
Pin No.
1
2
3
4
5
6
7
8
Hood
Wire color
White-Green
Green
White-Orange
Blue
White-Blue
Orange
White-Brown
Brown
Shield
Wire color
White-Green
Green
White-Orange
Blue
White-Blue
Orange
White-Brown
Brown
Shield
5 Wiring
5-13
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
5-2 CPU Unit Wiring
5
5-2-2 Laying the Ethernet Network
