Pin No.
XY
Signal Input/Output
10
OUT_COM1
*1 *2
Output
11 NC -
12 NC -
13 NC -
14 NC -
15 NC -
Shell Shield
*1. OUT0 is PWM output, and OUT1 is TCR output.
*2.
OUT1 is available with the CK3W-GC£200 Units only.

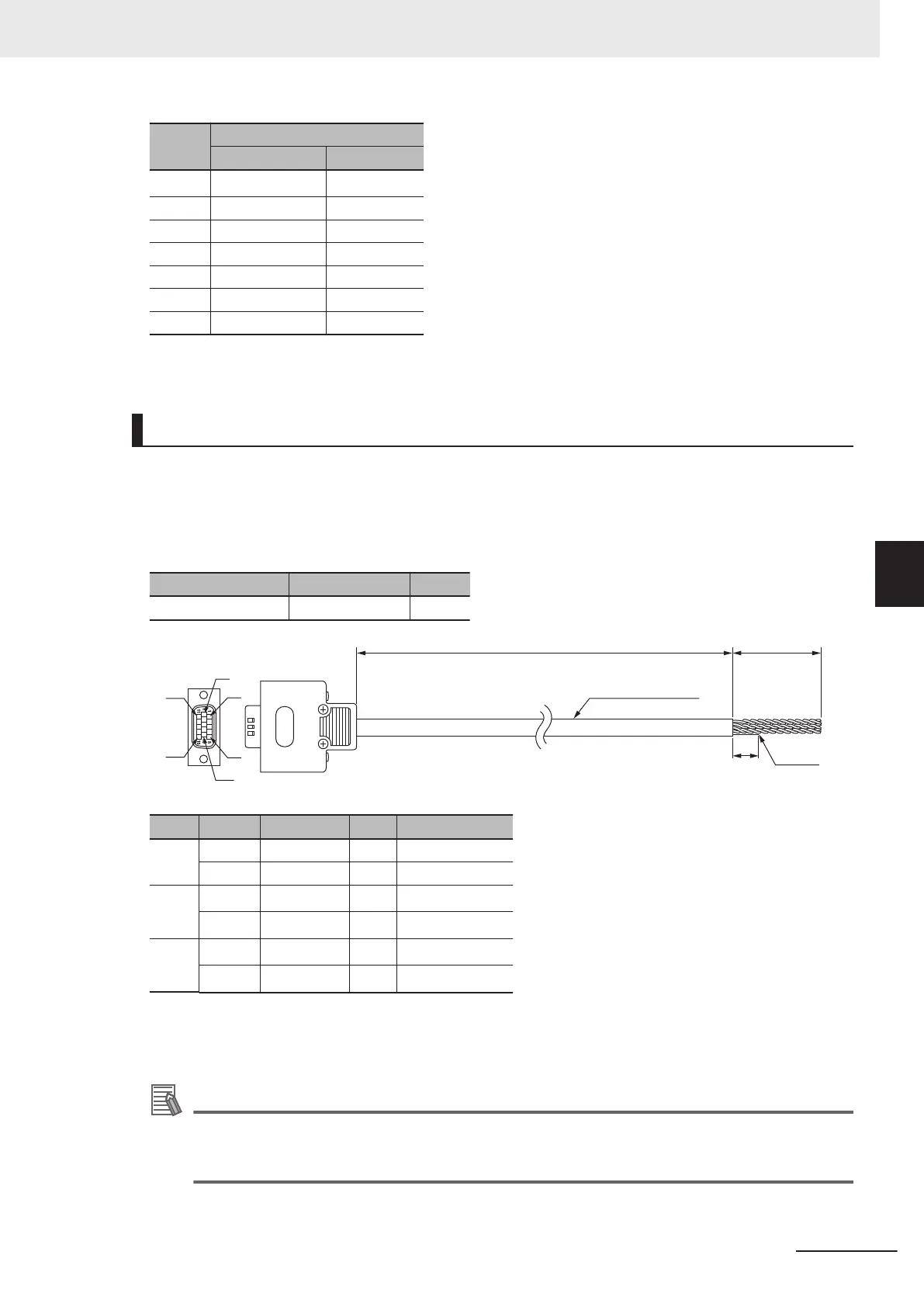

Dedicated Cable
The dedicated cable for wiring to the laser connector is provided as an option.
The laser connection side has discrete wires.
Perform wiring to match the laser specifications.
The cable model is as shown below.
Type Model Length
For laser connection CK3W-CAES03A 3 m
Shield
1
0
3000 35
24AWG x 3 Pairs
6
1
5
10
15
11
Type Pin No. Cable color Mark Signal
Pair 1 11 Blue Black Not wired
13 Blue Red Not wired
Pair 2 4 Pink Black
OUT0
*1
9 Pink Red
OUT_COM0
*1 *2
Pair 3 5 Green Black
OUT1
*1
10 Green Red
OUT_COM1
*1 *2
*1. OUT0 is PWM output, and OUT1 is TCR output.
*2.
OUT1 is available with the CK3W-GC£200 Units only.
Note The cable shield is connected to the connector shell of the encoder connector.
Additional Information
You may use a self-made cable.
When you create a self-made cable, use a shielded twisted-pair cable to block the effects of
noise.
5 Wiring
5-49
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
5-7 Laser Interface Unit
5
5-7-2 Laser Connector Wiring
